Vision Engraving & Routing Systems 1212 Operating Manual page 10

Chapter 2

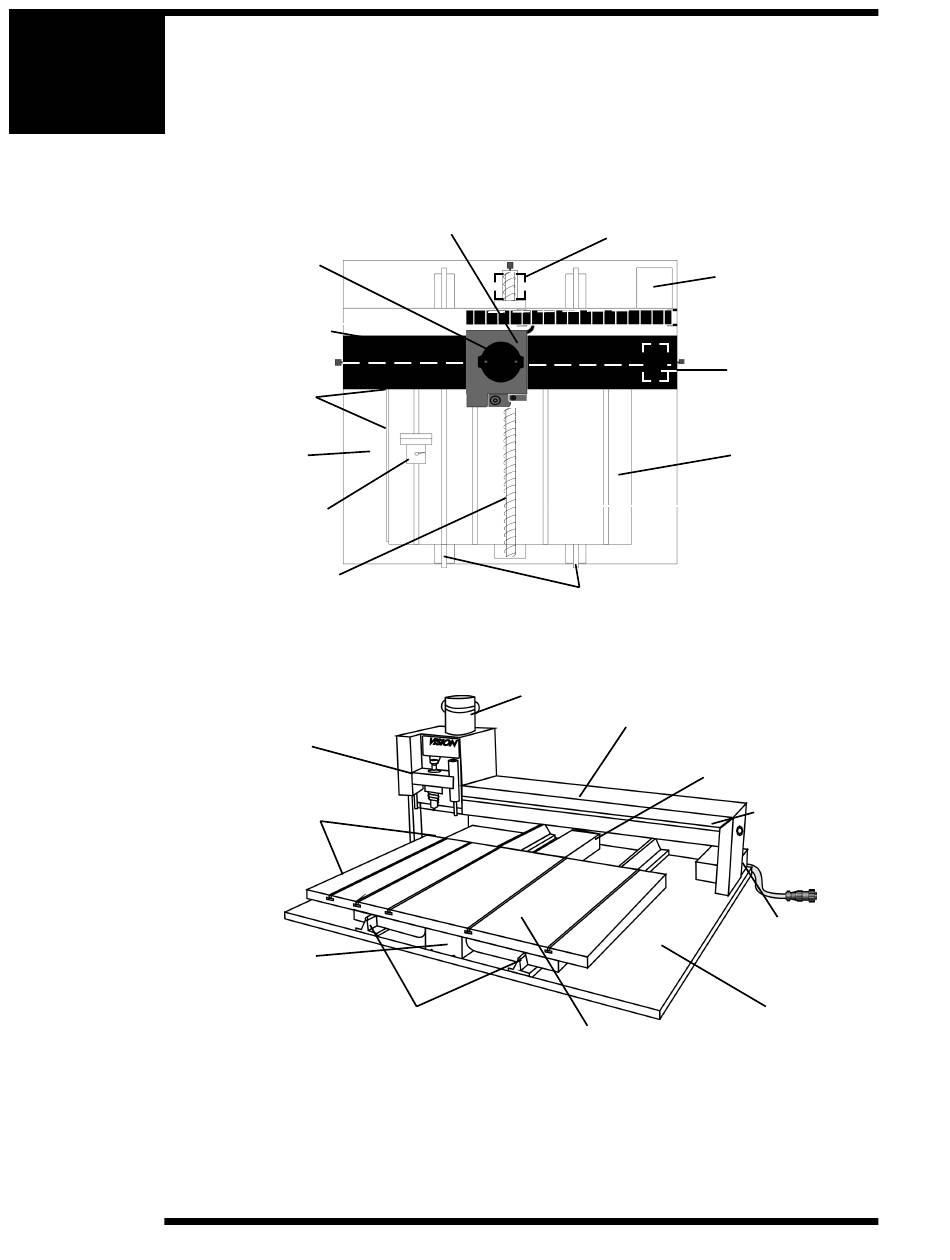

(Figure 2.1) Series 3 full linear T-slot table format. Shown here is the top view of
the Series 3 Vision 1624. The Vision 1212 and the Vision 1224 have a similar design.
11. Engraving Motor
10. Material Guides
1. Table Base Plate
12. Quick-Lock Vise
(Figure 2.1a) Series 3 T-slot table format. Shown here is front angled view of the
Series 3 Vision 1624.
10. Material Guides
4. Y-Axis Lead Screw
(under metal cover)
Page 10
6. Carriage Assembly
5. Gantry Assembly
4. Y-Axis Lead Screw
(under metal cover)
6. Carriage Assembly
2. Y-Axis Linear Rails
1. Table Base Plate. This is the large flat plate upon which everything else is mounted. All
mechanical alignments are referenced to this plate, so the space upon which you place the
engraving table must be a reasonably level surface.
2. Y-Axis Linear Rails. Mounted on the table base plate are steel rails with sealed
bearings, which allow the motion of the T-slot table in the Y-axis direction.
8. Y-Axis Stepper Motor (underneath)
2. Y-Axis Linear Rails
11. Engraving Motor
5. Gantry Assembly
3. T-Slot Table
7. Breakout Box
9. X-Axis Stepper
Motor
3. T-Slot Table
8. Y-Axis Stepper Motor
9. X-Axis Stepper
Motor
7. Breakout Box
1. Table Base Plate
