Vision Engraving & Routing Systems 1212 Operating Manual page 13

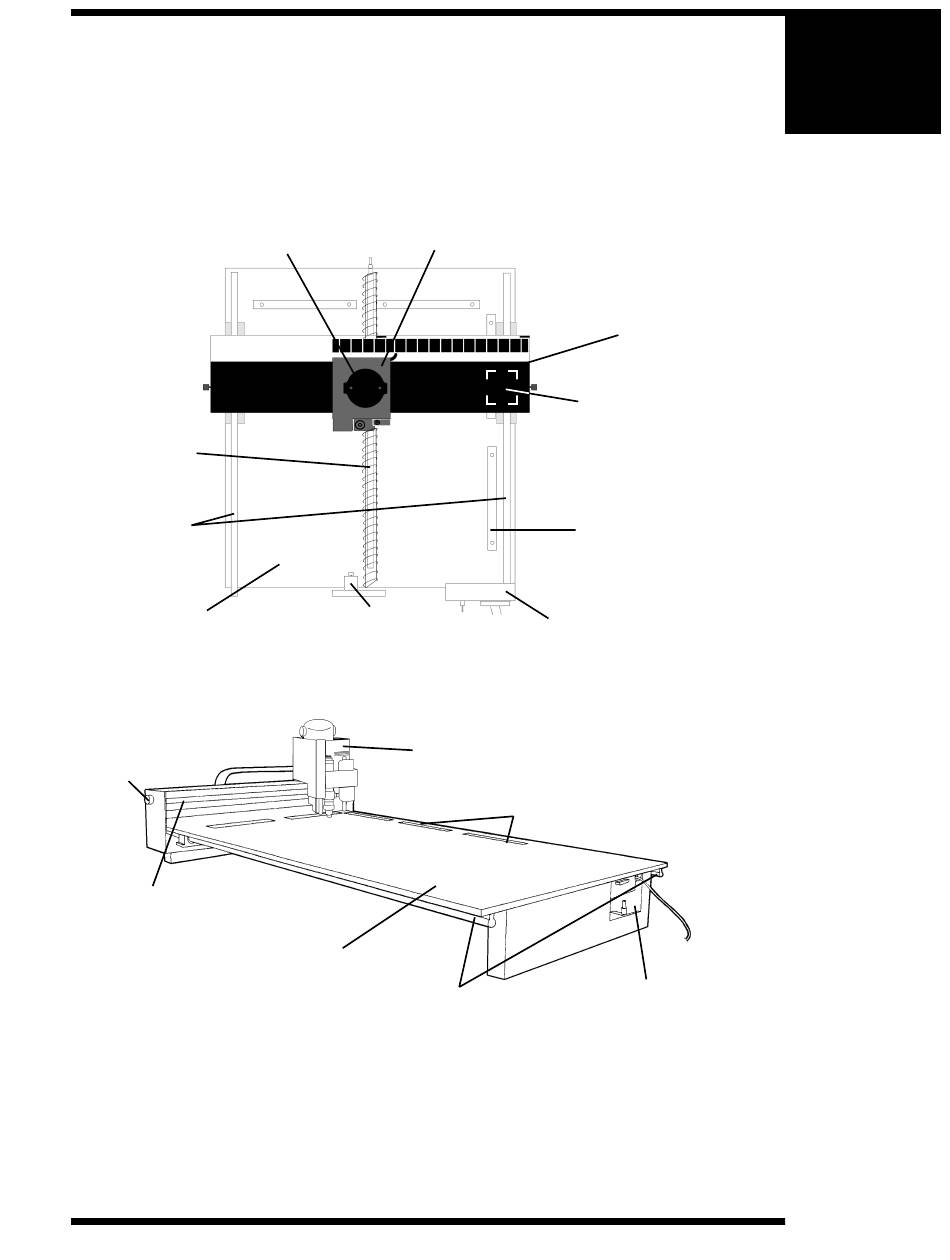

(Figure 2.3) Series 3 flatbed (moveable gantry) table format. Shown here is a top
view of the Series 3 Vision 2424.
10. Engraving Motor
3. X-Axis
Lead Screw
2. X-Axis
Linear Rails
1. Table Base Plate
(Figure 2.3a) Front angled view of the Series 3 Vision 2448
7. Y-Axis Stepper
Motor Knob
4. Gantry Assembly
1. Table Base Plate. This is the large flat plate upon which everything else is mounted. All
mechanical alignments are referenced to this plate, so the space upon which you place the
engraving table must be a reasonably level surface. (Always carry the table by the base plate
only.)
2. X-Axis Linear Rails. Mounted under the table base plate are steel rails with sealed
bearings, which allow the motion of the gantry in the X-axis direction.
5. Carriage Assembly
8. X-Axis
Stepper Motor
5. Carriage Assembly
1. Table Base Plate
2. X-Axis Linear Rails
4. Gantry Assembly
7. Y-Axis
Stepper Motor
9. Material Guides
6. Breakout Box
9. Material Guides
6. Breakout Box
Chapter 2
Page 13
