Chapter 6
SPINDLE PRESSURE ADJUSTMENT FOR SERIES2 VISION TABLES
The pressure of the spindle nosecone against the material can be
controlled by adjusting the down pressure in the Z-axis assembly. If
1.
the cutter is skipping across the material or engraving unevenly, the
pressure should be increased. Locate the black knurled thumb wheel
below the Z-axis motor (see "1." in fig 6.10). To increase the
pressure, turn the thumb wheel clockwise. The pressure can be
decreased by rotating the thumb wheel counterclockwise.
For deep engraving into metals: the Z-axis may be
locked so that no float exists. Simply rotate the thumb
wheel fully clockwise until it bottoms out.

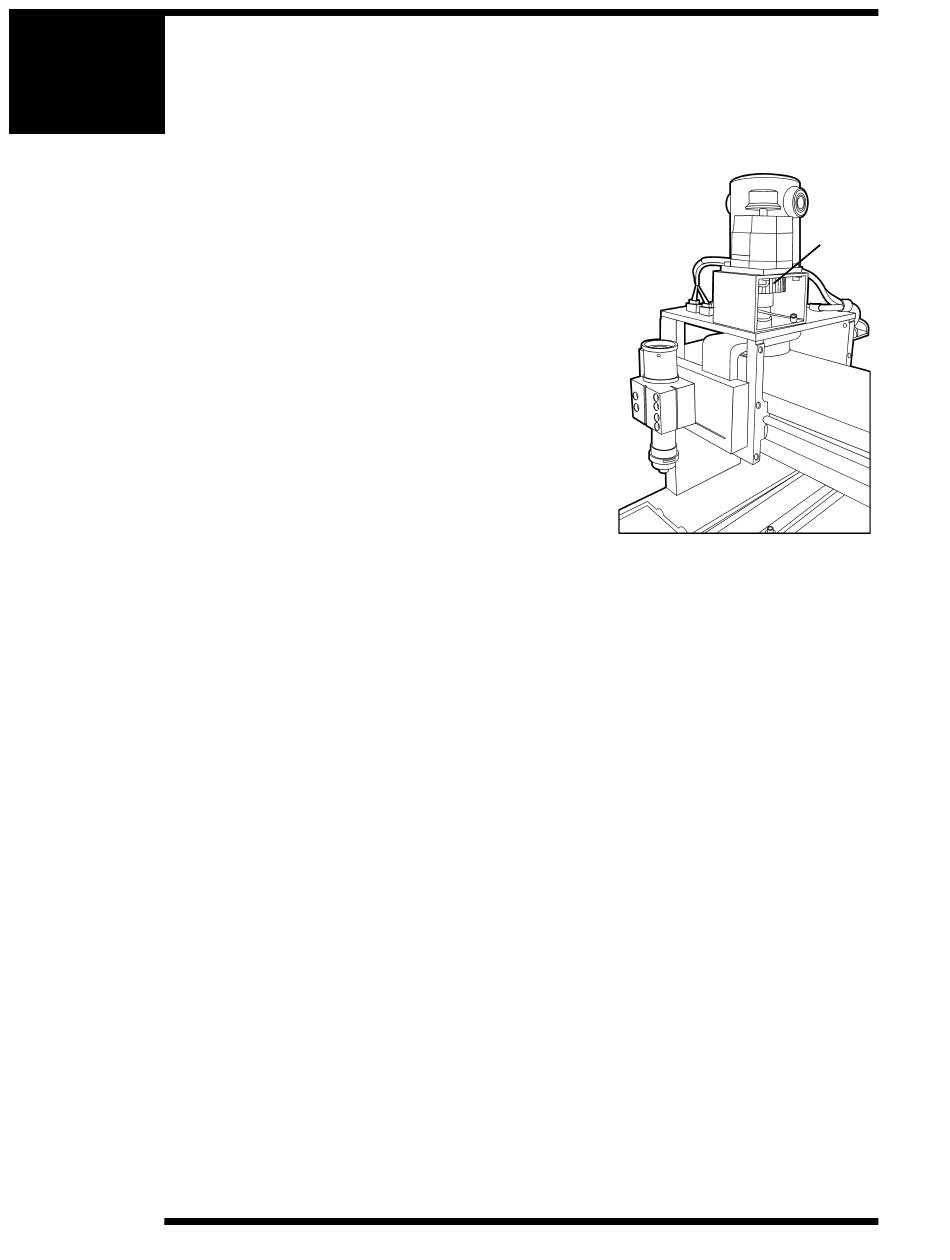

(Figure 6.10) Close up of the Series2
carriage assembly
