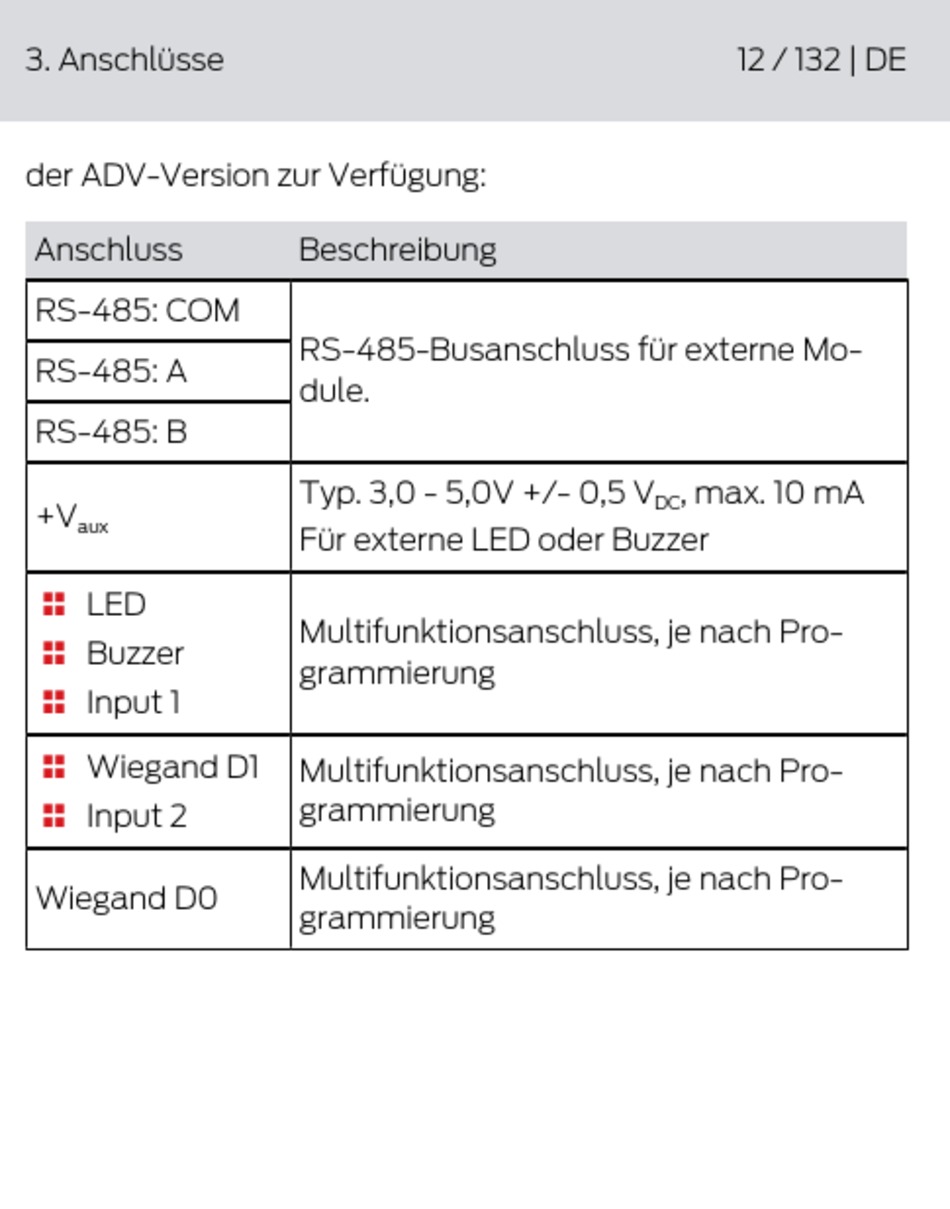

3. Anschlüsse
der ADV-Version zur Verfügung:
Anschluss
RS-485: COM
RS-485: A
RS-485: B
+V
aux
LED
Buzzer
Input 1
Wiegand D1
Input 2
Wiegand D0
Beschreibung
RS-485-Busanschluss für externe Mo-
dule.
Typ. 3,0 - 5,0V +/- 0,5 V
Für externe LED oder Buzzer
Multifunktionsanschluss, je nach Pro-
grammierung
Multifunktionsanschluss, je nach Pro-
grammierung
Multifunktionsanschluss, je nach Pro-
grammierung
12 / 132 | DE
, max. 10 mA
DC
