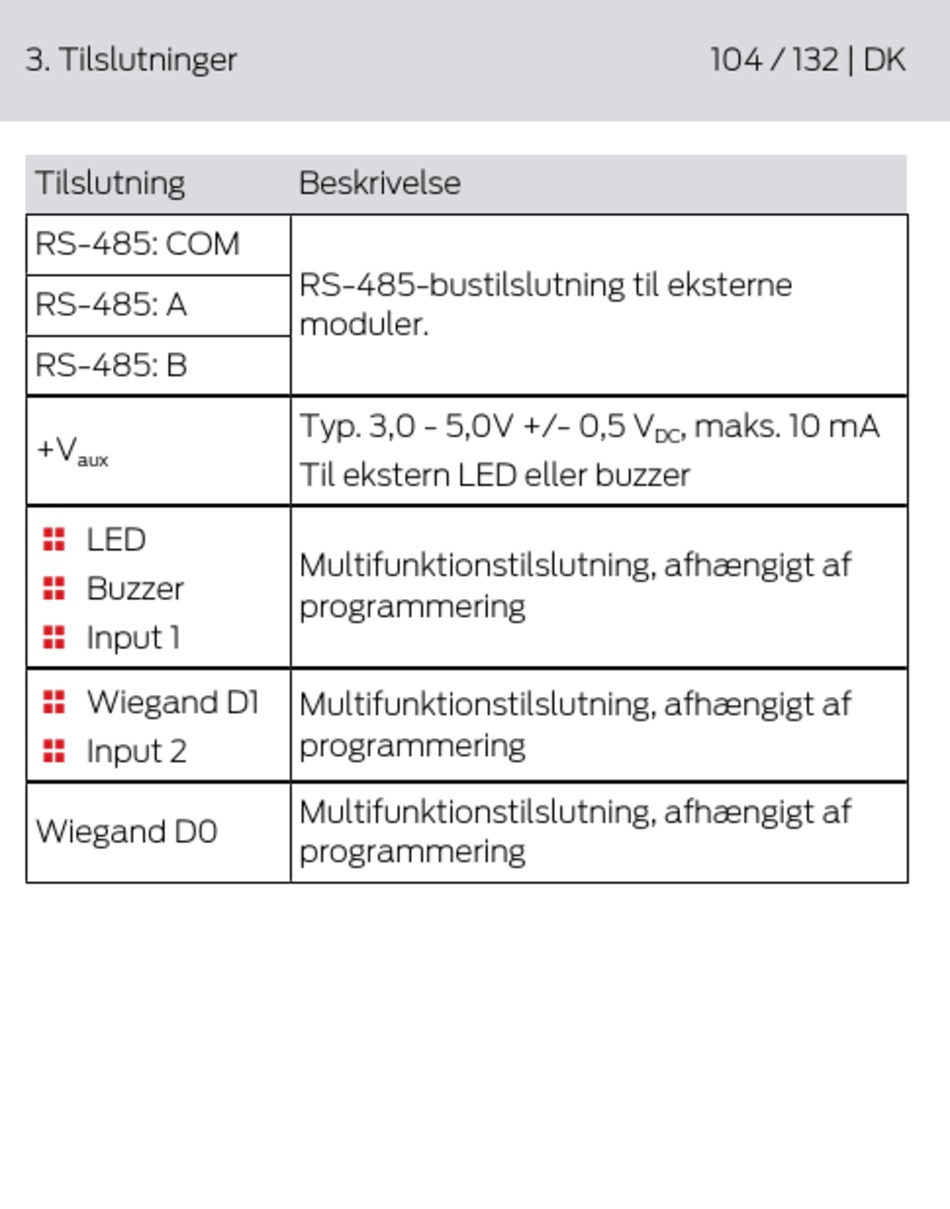

3. Tilslutninger
Tilslutning
RS-485: COM
RS-485: A
RS-485: B
+V
aux
LED
Buzzer
Input 1
Wiegand D1
Input 2
Wiegand D0
Beskrivelse
RS-485-bustilslutning til eksterne
moduler.
Typ. 3,0 - 5,0V +/- 0,5 V
Til ekstern LED eller buzzer
Multifunktionstilslutning, afhængigt af
programmering
Multifunktionstilslutning, afhængigt af
programmering
Multifunktionstilslutning, afhængigt af
programmering
104 / 132 | DK
, maks. 10 mA
DC
