Kyocera ECOSYS M2135dn Service Manual page 231

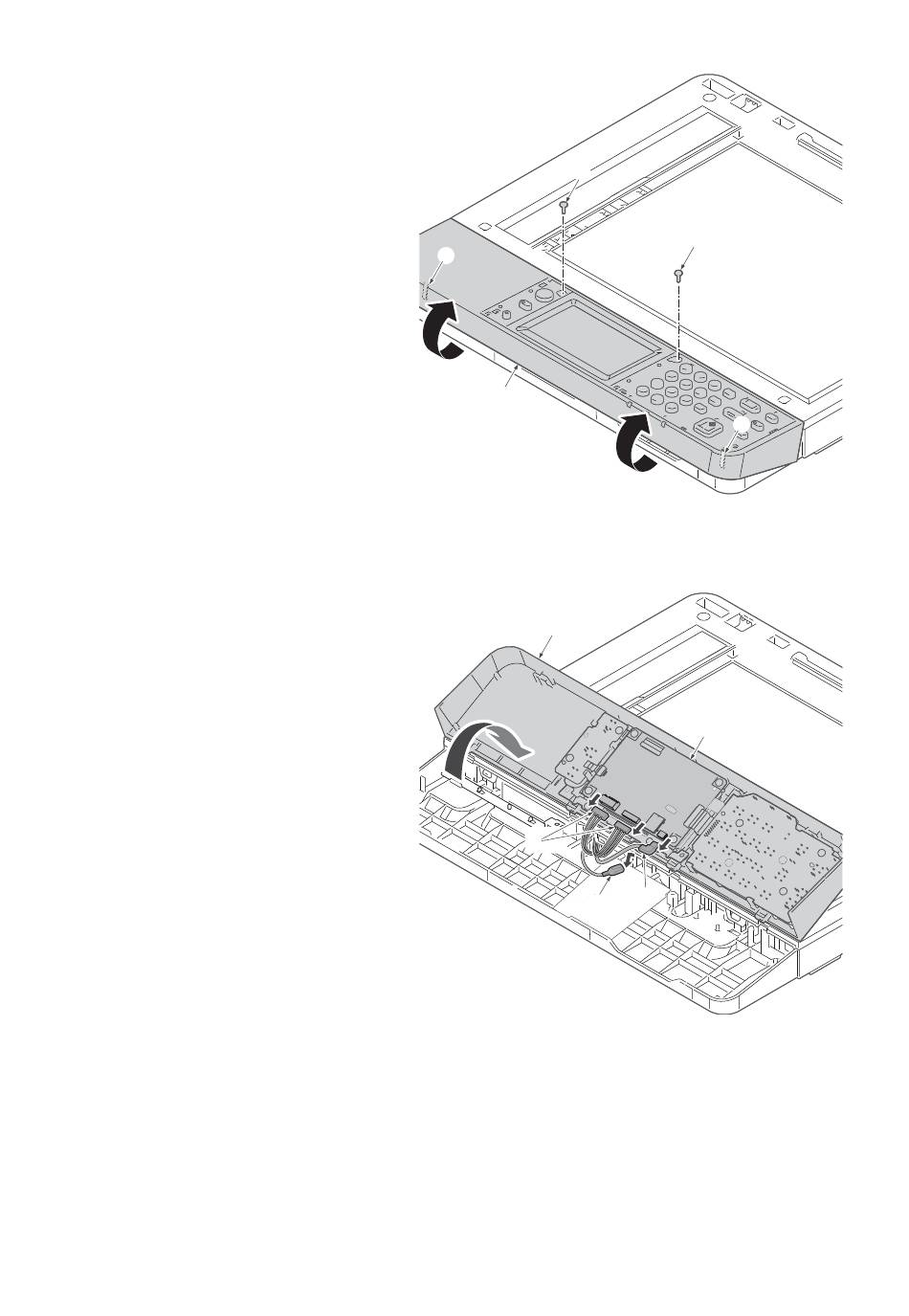

6. Remove two screws (c) (M3×8S tight).
7. Lift up the front side of operation cover
(a) and release four hooks (b).
8. Turn over the operation cover (a).
9. Disconnects two connectors (c), the
USB connector (d) and the grounding
terminal (e) of operational cover PWB
(b).
2S0/2S1/2S2/2S3/2S4/2S5/2SG/2SH/3RA
c
b
a
Figure 4-258
a
c
e
Figure 4-259
4-139
c
b
b
d
