Installation and Use

Compatible beam flange thickness: .5" - 1.25".
Part # 00101 fits flange widths from 3.5" to 14".
Part # 00103 fits flange widths from 6" to 16".
Prior to installation, plan your system:
1. Beamer 2000 is an adjustable anchorage connector, and is designed for use both overhead and at foot
level. If used below the harness dorsal D-ring in Fall Arrest applications, ALWAYS account for increase in
required fall clearance, and ALWAYS use PFAS equipment explicitly certified for extended free fall up to 12'.
2. Ensure that all PFAS equipment to be used in combination with Beamer Anchors is selected and deemed
compatible by a Competent Person. Make considerations for eliminating or minimizing swing fall hazards.
3. Ensure selected "I" or "H" structural beam is capable of supporting minimum load of 5,000 lbs., is
compatible with applicable Beamer Anchor, and adheres to the flange thickness and width requirements
specified by this manual. For installation onto horizontal beams only. Never install on vertical beams. If
unable to determine suitable installation location, consult jobsite Competent Person. The Beamer 2000 is rated
for loading in any direction provided it is installed as prescribed.
4. Beamer Anchors MUST NOT be used as permanent anchorage connectors, or as components of a horizontal
lifeline system. Do not use Beamer Anchors for rigging or suspension work.
Installation:
1. Hook Fixed Clamp over selected beam flange. Aluminum Bar MUST be positioned parallel with end of beam.
2. Compress lever on Adjustable Clamp and position Adjustable Clamp as tightly as possible against opposite
side of beam flange. Beamer Anchor MUST be snug against beam flange and no possibility may exist for
Beamer Anchor to detach from beam flange.
3. Release Adjustable Clamp lever and ensure it is fully locked onto High Strength Bar.

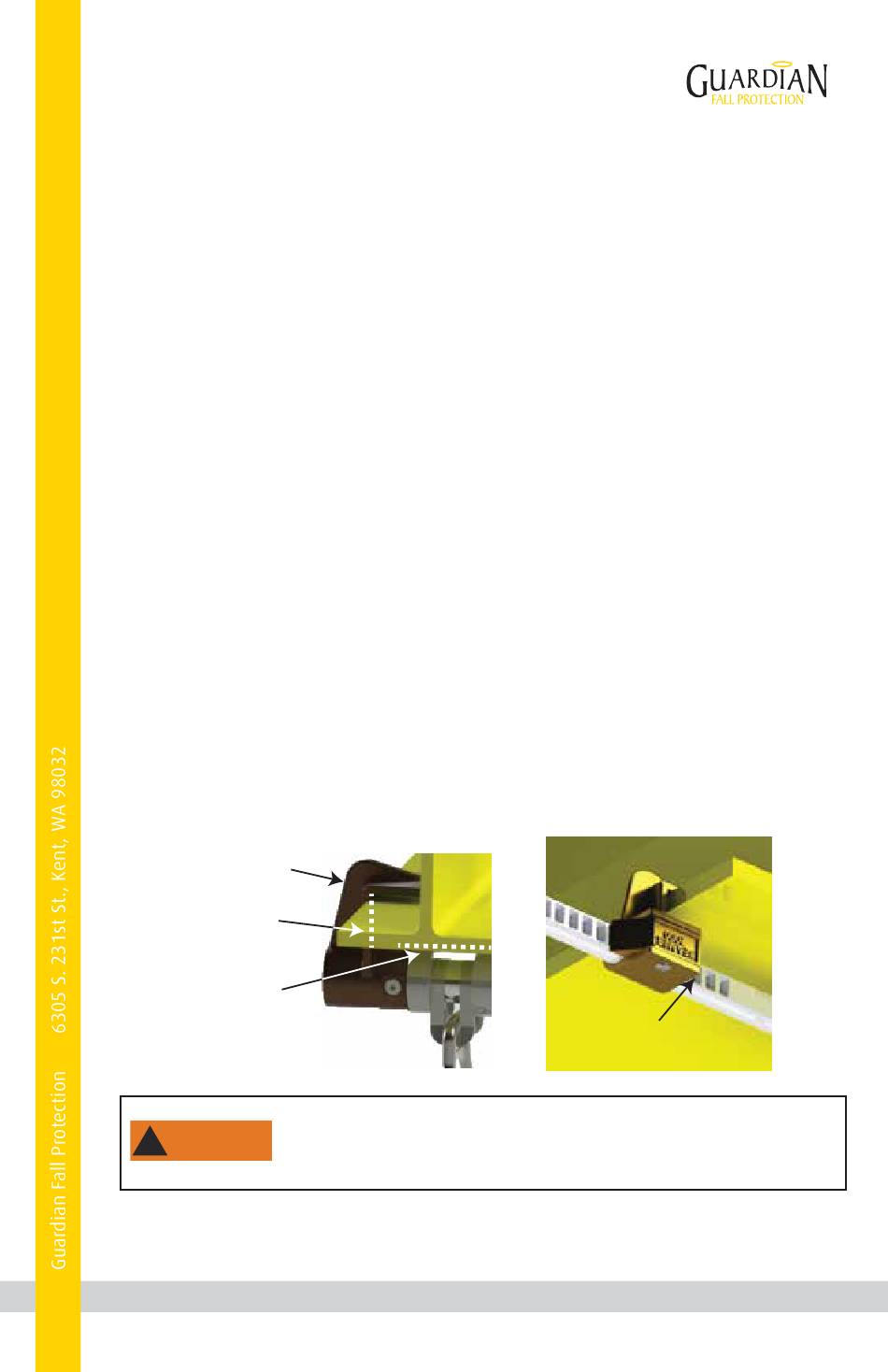

Fixed Clamp
hooked over beam
Clamp throat flush
with beam flange
Aluminum Bar
parallel with
end of beam
!
WARNING
acceptable for Beamer Anchor installation. Beam MUST possess physical
4. Attach complete and compatible PFAS to Beamer Anchor D-ring. Maximum 1 connection per Beamer Anchor.
Extended free fall connecting device must be used if Beamer Anchor is located below harness dorsal D-ring.
Images shown are for example only. Beamer Anchor MUST be installed
so no risk exists for it to come off end of beam. Beam shown IS NOT
barrier that will function to eliminate all risk of disengagement.
Adjustable Clamp positioned
at tightest possible notch
on High Strength Bar.
4
