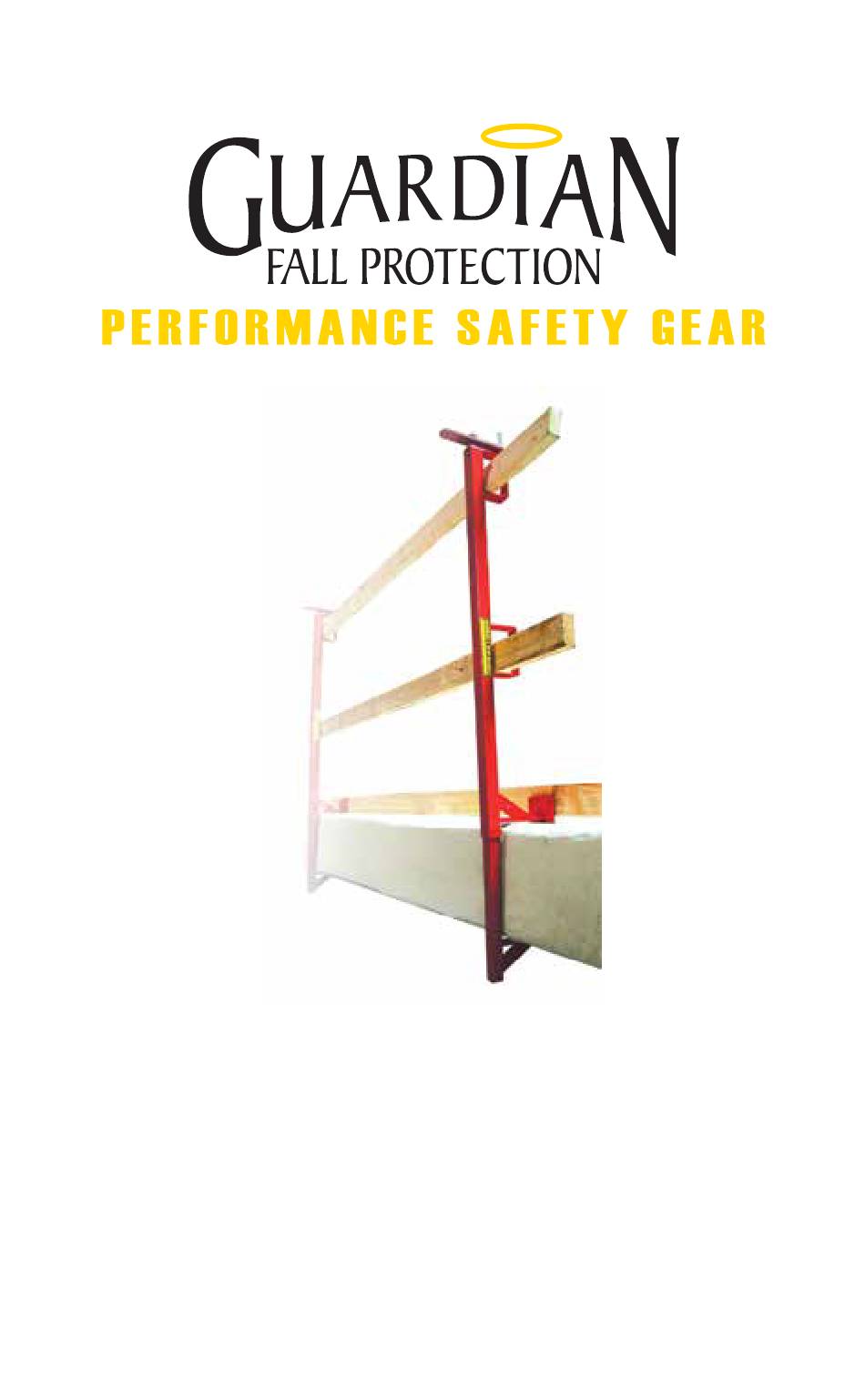

- Page 1 Product Name: C-Slab Grabber Part #: 15500 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
-
Page 3: Table Of Contents
This and any other included instructions must be made available to the user of the equipment. The user must understand how to safely and effectively use the C-Slab Grabber, and all fall safety equipment used in combination with the C-Slab Grabber. -
Page 4: Applicable Safety Standards
User Information Date of First Use: Serial #: Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M and OSHA 1910 standards for fall protection. Applicable standards and regulations depend on the type of work being done, and also might include state-specific regulations. -
Page 5: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. - Page 6 Equipment that fails inspection in any way must immediately be removed from use, or repaired by an entity approved by the manufacturer. No on-site repair of equipment unless explicitly permitted by Guardian Fall Protection. Equipment subjected to forces of fall arrest must immediately be removed from use.
-
Page 7: Maintenance, Cleaning, And Storage
Remove all dirt, corrosives, and contaminants from C-Slab Grabbers before and after each use. If C-Slab Grabber cannot be cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean C-Slab Grabbers with corrosive substances. -
Page 8: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. NEVER make any connections to guardrail systems. C-Slab Grabbers may be used in Fall Prevention applications ONLY. Fall Prevention Systems are placed around the leading edges of any and all fall hazards to prevent a worker from going over an edge, and may be used in substitute of Fall Protection or safety netting systems. -
Page 9: Components And Specifications

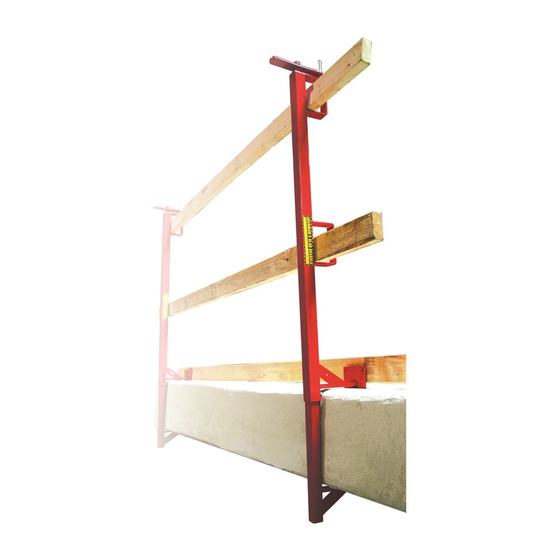

Components and Specifications Materials: powder-coated steel and galvanized steel. Post Adjustment Handle Guardrail Rung Toeboard Plate Locking Pin Slab Clamp Installation and Use Prior to use, plan the entire Fall Prevention system. All leading edges of fall hazards must be blocked, or a supplemental Fall Protection system MUST be used in combination with, but never connected to, the applicable Fall Prevention system. - Page 10 10. Rotate Adjustment Handle counter-clockwise until Slab Clamp can be fitted over concrete slab. C-Slab Grabber can be adjusted to fit concrete beams from 1½“ to 36” thick. 11. Insert Locking Pin at first available hole in C-Slab Post. Repeat steps #9-11 for all C-Slab Grabbers.
-
Page 11: Labels
Labels 7” 1--1/2” • DO NOT adjust to more than 36” opening CALL 1.800.466.6385 FOR DETAILS • Use 2x4, 2x6, or cable for rails • Use 2x4 for toe boards www.guardianfall.com • Fasten all handrails and toe boards securely • Meets or exceeds OSHA standards for Guardrails FOR CONCRETE USE ONLY !! 90009 (Rev. -
Page 12: Inspection Log
Competent Person inspections. This inspection log must be specific to one C-Slab Grabber. Separate inspection logs must be used for each C-Slab Grabber. All inspection records must be made visible and available to all users at all times.
