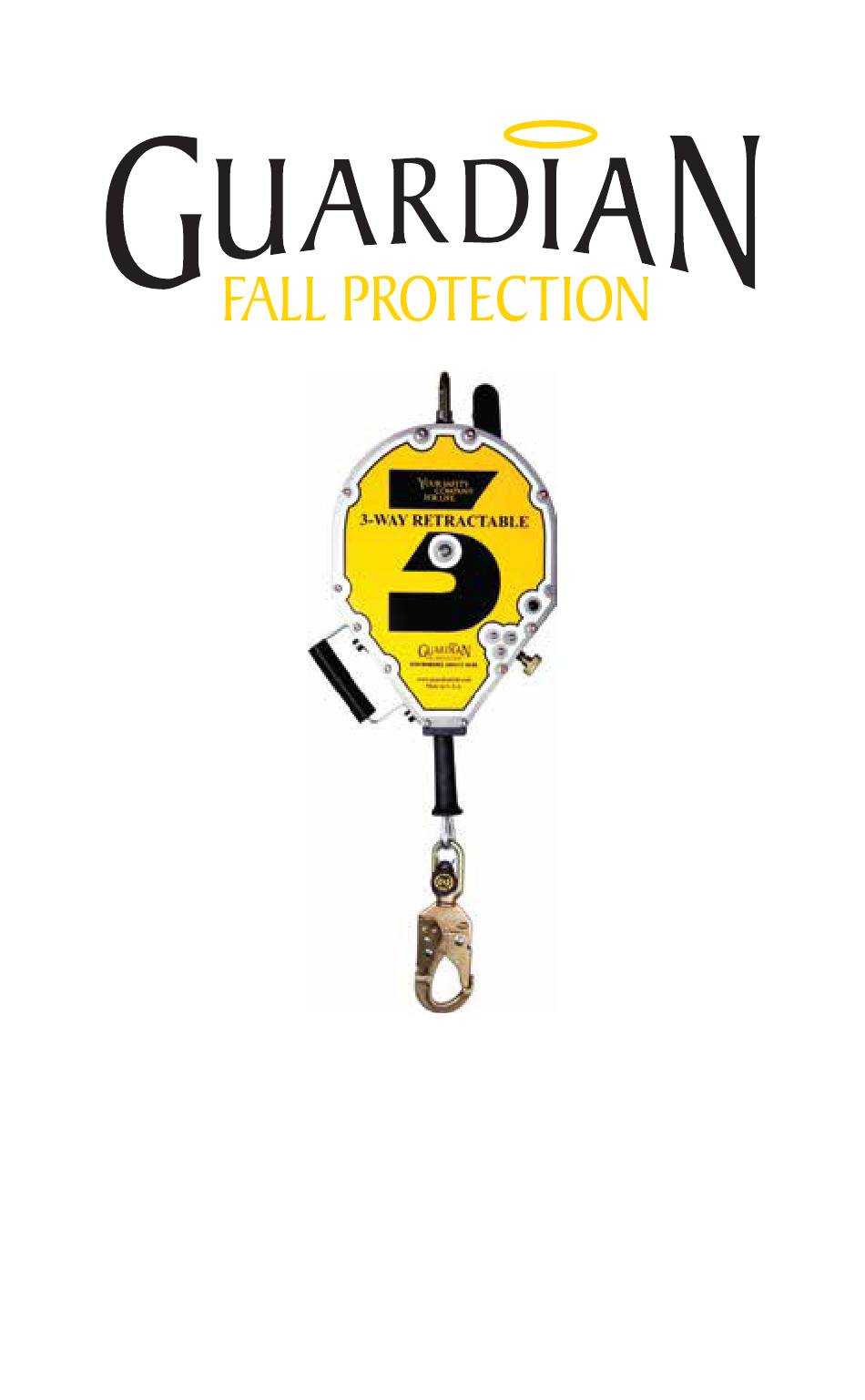

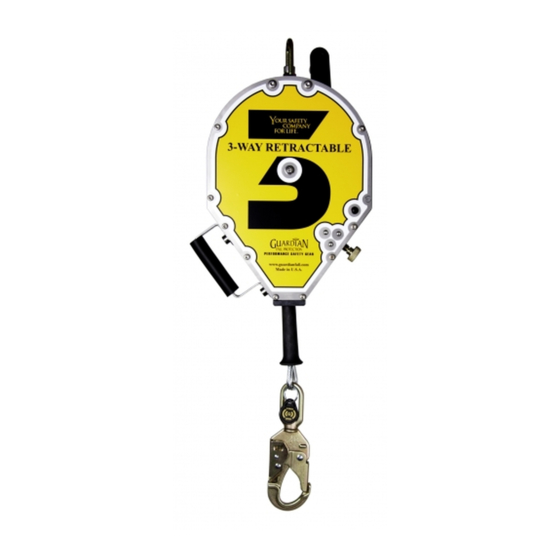

- Page 1 Product Name: 3-Way SRL Part #: 10974; 10981 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
-
Page 3: Table Of Contents
Notes Introduction Thank you for purchasing a Guardian Fall Protection 3-Way SRL. This manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. -
Page 4: Applicable Safety Standards
User Information Date of First Use: Serial #: Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012 standards for fall protection. -
Page 5: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. - Page 6 Equipment that fails inspection in any way must immediately be removed from use, or repaired by an entity approved by the manufacturer. No on-site repair of equipment unless explicitly permitted by Guardian Fall Protection. Equipment subjected to forces of fall arrest must immediately be removed from use.
-
Page 7: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage Repairs to 3-Way SRL can only be made by a Guardian Fall Protection representative or an entity authorized by Guardian. Contact Guardian for all maintenance and repair needs at: 1-800-466-6385. If a 3-Way SRL fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. -
Page 8: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: 3-Way SRL may be used to support a MAXIMUM 1 Personal Fall Arrest System (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. -
Page 9: Limitations
Limitations Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the user strikes the ground or an obstruction. When calculating fall clearance, account for a MINIMUM 3’ safety factor, deceleration distance, user height, length of lanyard/SRL, and all other applicable factors. - Page 10 Compatibility: When making connections with 3-Way SRL, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with 3-Way SRL by a Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs.
- Page 11 Correct Anchorage Positioning: This chart details allowable working zones required to reduce risk of swing falls and improper side loading. ALWAYS adhere to information specified by chart. Anchor Distance Working Distance Working Angle From Along Roof Edge From Leading Edge (Y) (Either Direction) (X) Perpendicular (Ø) 6’...
-
Page 12: Components And Specifications
Components and Specifications Guardian Fall Protection recommends 3-Way SRL be used with a compatible tripod, such as the Guardian Arc-O-Pod (#15030, not included), and mounting bracket (#10983, not included). Contact Guardian Fall Protection with any questions regarding proper and compatible equipment configurations. -
Page 13: Installation And Use
Installation and Use 1. With compatible carabiner, attach 3-Way SRL to anchor point at or above harness dorsal D-ring, OR attach to compatible tripod with Mounting Bracket part #10983. 2. If being used in combination with Arc-O-Pod or other compatible tripod, completely assemble, install, and use tripod according to manufacturer’s instructions provided with tripod at time of shipment. -
Page 14: Labels
Serial # Mfg. Date 50’; 3/16” CABLE 65’; 3/16” CABLE CUSTOM 10974 10981 WARNING! Manufacturer's instructions supplied with this product at INSPECTION: Inspect unit in accordance with manufacturer's time of shipment must be followed for proper use, maintenance and instructions and regulatory guidelines. Before use, inspect for any signs inspection. -
Page 15: Inspection Log
Inspection Log User must inspect prior to EACH use. Competent Person other than user must complete formal inspection at least every 6 months. Competent Person to inspect and initial. Date of First Use: __________________. Product lifetime is indefinite, as long as it passes pre-use and Competent Person inspections.
