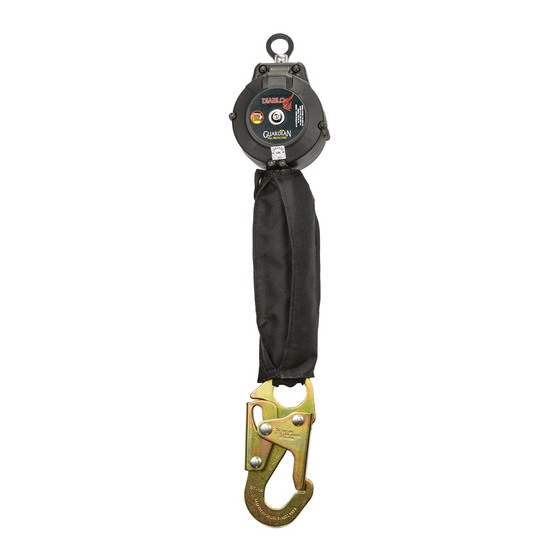

Product Name: Diablo 2.0 Tie-Back SRL
Part #: 11094; 11095
Instruction Manual
Do not throw away these instructions!
Read and understand these instructions before using equipment!
1
1
1
2
2 - 3
3
4
4
5
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diablo 2.0 Tie-Back SRL and is the answer not in the manual?

Questions and answers

Related Manuals for Guardian Fall Protection Diablo 2.0 Tie-Back SRL

Summary of Contents for Guardian Fall Protection Diablo 2.0 Tie-Back SRL

  • Page 1: Table Of Contents

    Product Name: Diablo 2.0 Tie-Back SRL Part #: 11094; 11095 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations 2 - 3 Components and Specifications...

  • Page 2: Introduction

    Trainer: the equipment. The user must understand how to safely and effectively use the User: Diablo 2.0 Tie-Back SRL, and all fall safety equipment used in combination with the Diablo 2.0 Tie-Back SRL. Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M and OSHA 1910 standards for fall protection.

  • Page 3: Product Specific Applications

    Maximum 1 attachment per connection point. Personal Fall Arrest: Diablo 2.0 Tie-Back SRL may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.

  • Page 4: Components And Specifications

    Compatibility: When making connections with Diablo 2.0 Tie-Back SRL, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with Diablo 2.0 Tie-Back SRL by a Competent Person.

  • Page 5: Installation And Use

    Tie-Back SRL by a Competent Person. 2. Ensure structural anchor to which Diablo 2.0 Tie-Back SRL is to be attached, and on which work is to be performed, is free of all hazards, including, but not limited to, debris, rot, rust, sharp or abrasive edges and surfaces, and hazardous materials.

  • Page 6: Inspection

    12 months. Competent Person to inspect and initial. This inspection log must be specific to one Diablo 2.0 Tie-Back SRL. Separate inspection logs must be used for each Diablo 2.0 Tie-Back SRL. All inspection records must be made visible and available to all users at all times.

  • Page 7: Safety Information

    Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment.

  • Page 8: Labels

    Labels STEEL SH MOUSQUETON EN ACIER / GANCHO DE SEGURIDAD DE ACERO 11094 Custom # Serial # # Costumbre # de Série # Coutume # de Série WARNING: Manufacturer's instructions INSPECTION: Prior to each use, inspect supplied with this product at time of device per user manual, including locking shipment must be read prior to use.
