Installation and Use

Compatible beam flange width: 3" - 10".
Maximum beam flange thickness: 9/10".
Prior to installation:
1. Ensure all PFAS equipment is selected and deemed compatible
with Beamer Trolley Anchor by a Competent Person. Make
considerations for eliminating or minimizing swing fall hazards.
2. Determine compatible installation location. Compatible with
I and H beams with minimum 5,000 lb. breaking strength only.
For overhead use only.
3. Ensure selected beam is free of any debris, rust, cracking,
deformation, hazardous materials, or any other condition that
may cause Beamer Trolley Anchor to slip or detach. Beam must
always be flat/positioned so it has no slope; installation onto
sloped beam may result in hazardous sliding or swing fall in the
event of a fall. Never install onto tapered beam; doing so may
Example beams shown ONLY.
result in point-loading on rollers.
Beam MUST incorporate an
obstruction at beam ends
4. If unable to determine suitable installation location, consult
that eliminates all possibility
jobsite Competent Person.
for Beamer Trolley Anchor to
disconnect from beam.
5. Beamer Trolley Anchor MUST NOT be used as permanent
anchorage connector, or as component of a horizontal lifeline
system. Do not use Beamer Trolley Anchor for rigging or
suspension work. The Beamer Trolley Anchor is rated for loading
in any direction provided it is installed as prescribed.
Installation:
1. Unscrew Safety Locks and open Beamer Trolley Anchor to its
maximum adjustment.
2. Compress Clamp Toggles, place Beamer Trolley Anchor over
selected beam, and adjust to fit beam. Ensure Beamer Trolley
Anchor D-ring is aligned with center of beam.
3. Tighten Safety Locks until snug, and ensure Clamp Toggles
will not compress.
4. Beam Rollers must sit on a clean, debris free surface to operate
properly. Prior to work, clean beam if necessary. Ensure End Screw
Caps are snug.
5. Attach to Beamer Trolley Anchor with complete and compatible
PFAS. Maximum 1 connection.

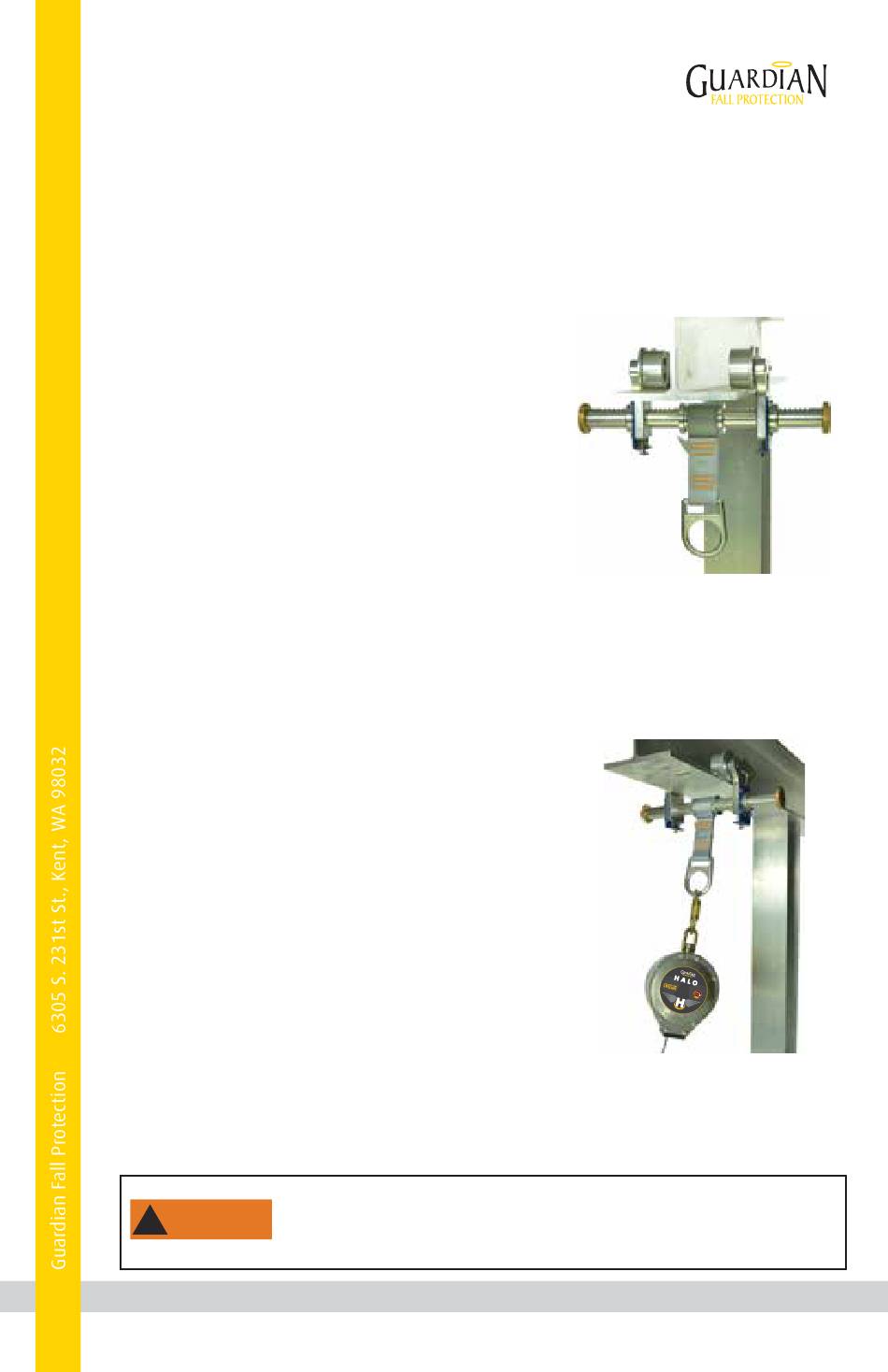

Images shown are for example only. Beamer Trolley Anchor MUST be
installed so no risk exists for it to come off end of beam. Beam shown
! WARNING
IS NOT acceptable for Beamer Anchor installation. Beam MUST possess
physical barrier that will function to eliminate all risk of disengagement.
4
