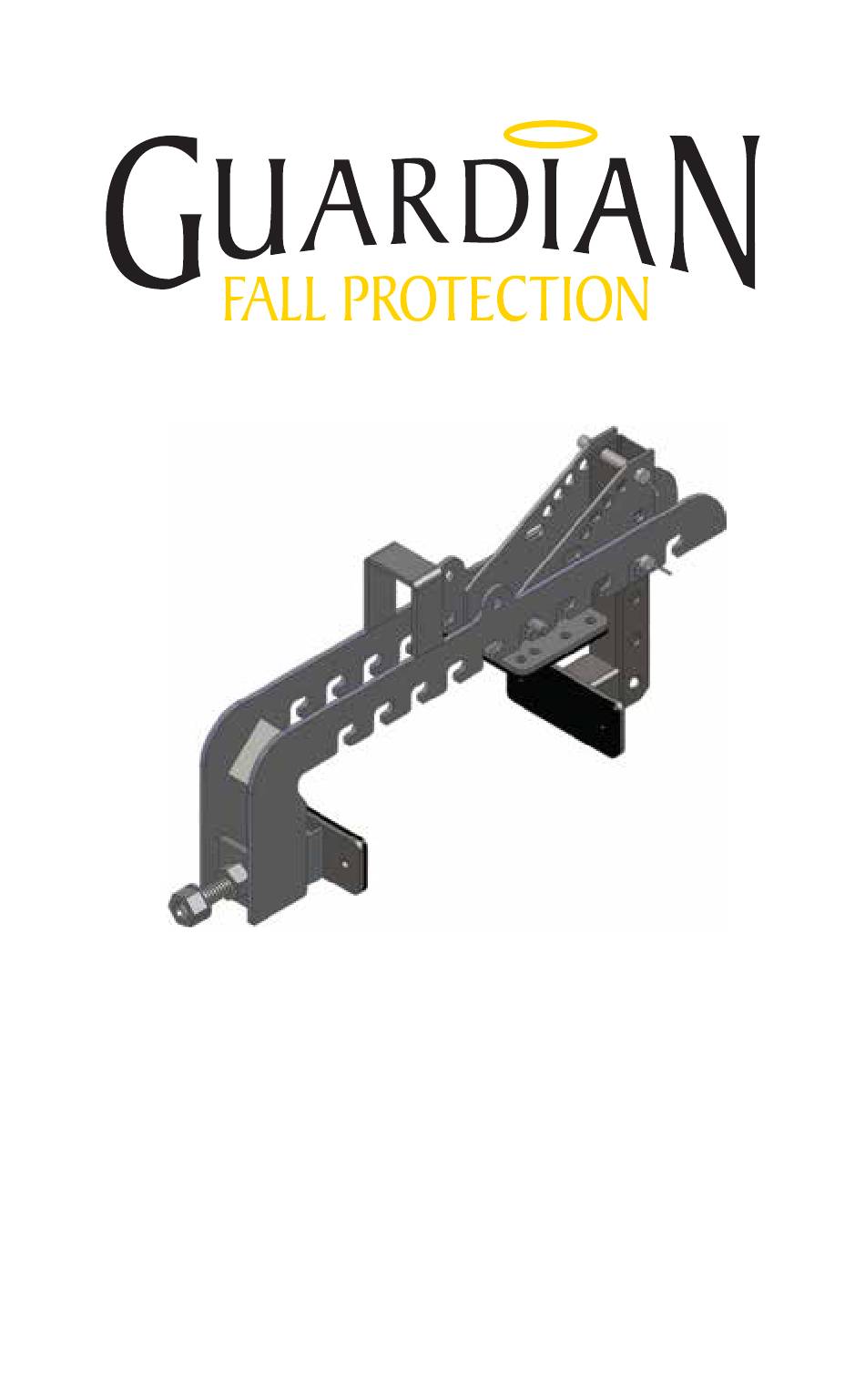

- Page 1 Product Name: Alligator Guardrail System Part #s: 15167; 61075; 61076; 15161; 15162; 15168; 61027 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
-
Page 3: Table Of Contents
Notes Introduction Thank you for purchasing a Guardian Fall Protection Alligator Guardrail System. This manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. -
Page 4: Applicable Safety Standards
User Information Date of First Use: Serial #: Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M and OSHA 1910 standards for fall protection. Applicable standards and regulations depend on the type of work being done, and also might include state-specific regulations. -
Page 5: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. - Page 6 Equipment that fails inspection in any way must immediately be removed from use, or repaired by an entity approved by the manufacturer. No on-site repair of equipment unless explicitly permitted by Guardian Fall Protection. Equipment subjected to forces of fall arrest must immediately be removed from use.
-
Page 7: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage Repairs to Alligator Guardrail Systems can only be made by a Guardian Fall Protection representative or an entity authorized by Guardian. Contact Guardian for all maintenance and repair needs at: 1-800-466-6385. If Alligator Guardrail System fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. -
Page 8: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. NEVER make any connections to guardrail systems. Alligator Guardrail Systems may be used in Fall Prevention applications ONLY. Fall Prevention Systems are placed around the leading edges of any and all fall hazards to prevent a worker from going over an edge, and may be used in substitute of Fall Protection or safety netting systems. -
Page 9: Components And Specifications
15162 350’ Kit. Includes: (36) 15167, (8) 61075, (72) 61076, (36) 15163, (1) 61027, & (1) 15161. 15168 350’ Kit. Includes: (36) 15167, (8) 61075, (72) 61076, (36) 15163, & (1) 61027. Does not include cart. 61027 Extended Guardrail Gusset. -
Page 10: Installation And Use
2. NEVER install on unstable or structurally compromised surfaces, such as debris, rot, and rust. 3. Alligator Guardrail System must be installed a MINIMUM 10’ from all electrical hazards. 4. Take extreme care during installation. Guardian Fall Protection recommends using a back-up fall protection system until Alligator Guardrail System is completely installed. - Page 11 Pitched and Barrel Roof Application 1) Place the mount in 4) Align the post so it desired location. Mark sits vertically. Post rungs the two teardrop shaped must face in towards holes and insert (2) nails. work surface. Insert pins Leave nails sticking up as shown to lock post in approx.
- Page 12 Parapet Wall Application: Compatible parapet thickness range is 2” to 16”. MINIMUM parapet height: 7”. 1) Assemble the mount, guardrail post receiver, and guardrail post as shown. 2) Place assembly completed in step 1 on the inside of parapet wall. Guardrail post rungs must face in towards work surface.
- Page 13 Optional Gusset Attachment Application 1) Install guardrail post receiver on selected parapet wall with (2) 2½” long, 14-10 screws. Ensure guardrail post receiver is set at a 90º angle, and top of post receiver is even with top of parapet wall. 2) Fit gusset to top of guardrail post receiver.
-
Page 14: Labels
The Alligator Guardrail System is not to be used as an anchor point and only as a passive fall arrest system used in accordance with the supplied instruc- tions. PN:15167 Guardian Fall Protection - 800-466-6385 14° 27° 37° 48°... -
Page 15: Inspection Log
Inspection Log Date of First Use: __________________. User must inspect prior to EACH use. Competent Person other than user must complete formal inspection at least every 6 months. Competent Person to inspect and initial. Product lifetime is indefinite, as long as it passes pre-use and Competent Person inspections.
