1.3 Products Appearance and size
NVCM motion controller is with the sealed open structure, there are 4pcs setting holes at
the bottom. We can fix 2pcs 3mm diameter holes at the cabinet, and install the controller into the

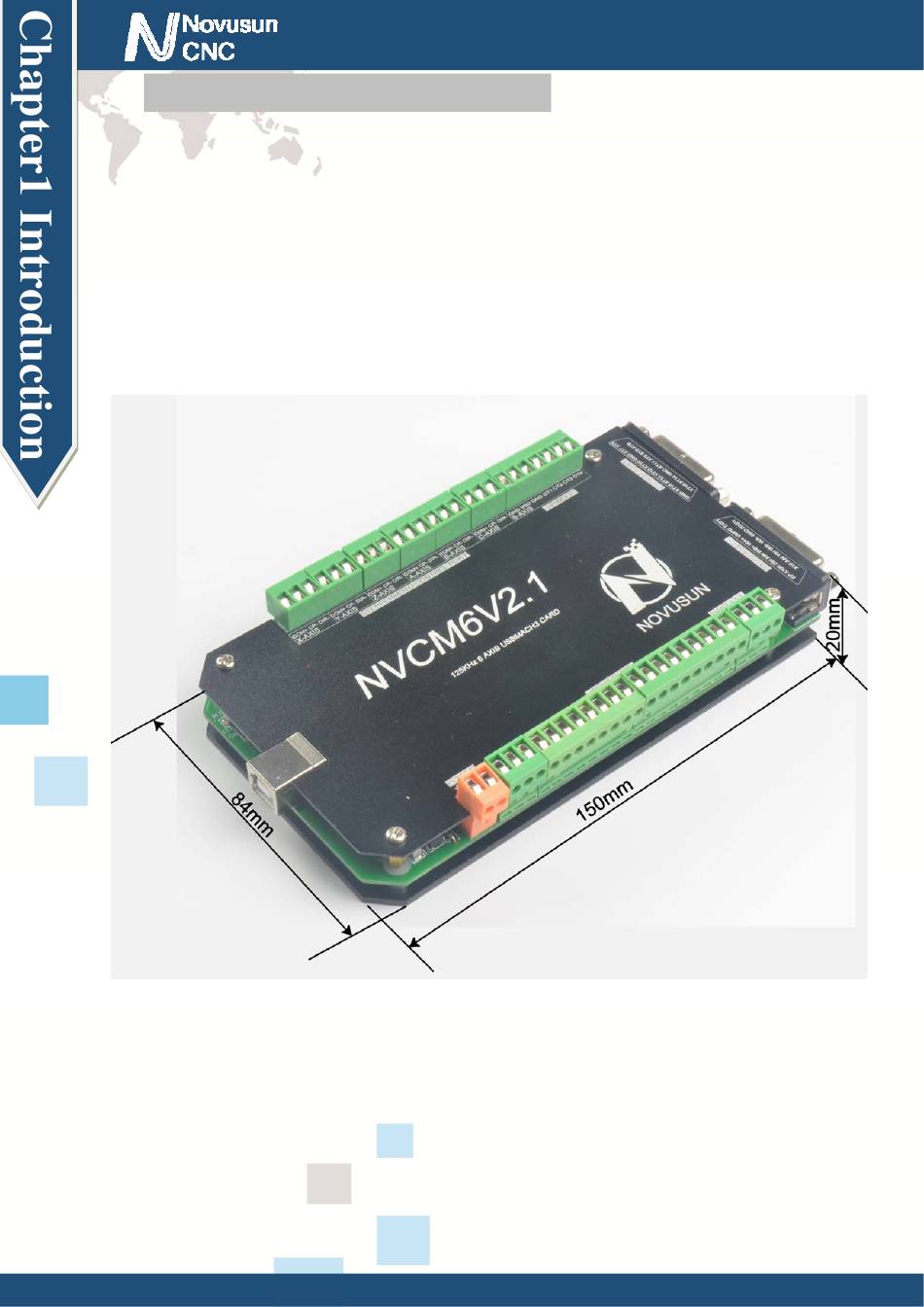

cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:
The products overall size is 150mm*84mm*20mm ；
The bottom install size is 125.5mm*71.5mm 。
Manual of NVCM
Figure1-1.
NVCM front appearance and size
