Here you can configure according to your actual needs the corresponding function. Optional
Function include XYZABC6axis's Upper and lower limit 、 XYZABC6axis's HOME point. We
set upper limit and home of XYZA to 3456 corresponding IN3IN4IN5IN6 of the board.
ESTOP and probe Setting see as Figure 4-9 ， estop's pin number is 1, and probe's is 2.
Click "Spindle Setup" switch to the spindle settings page. See as Figure4-10.
Manual of NVCM

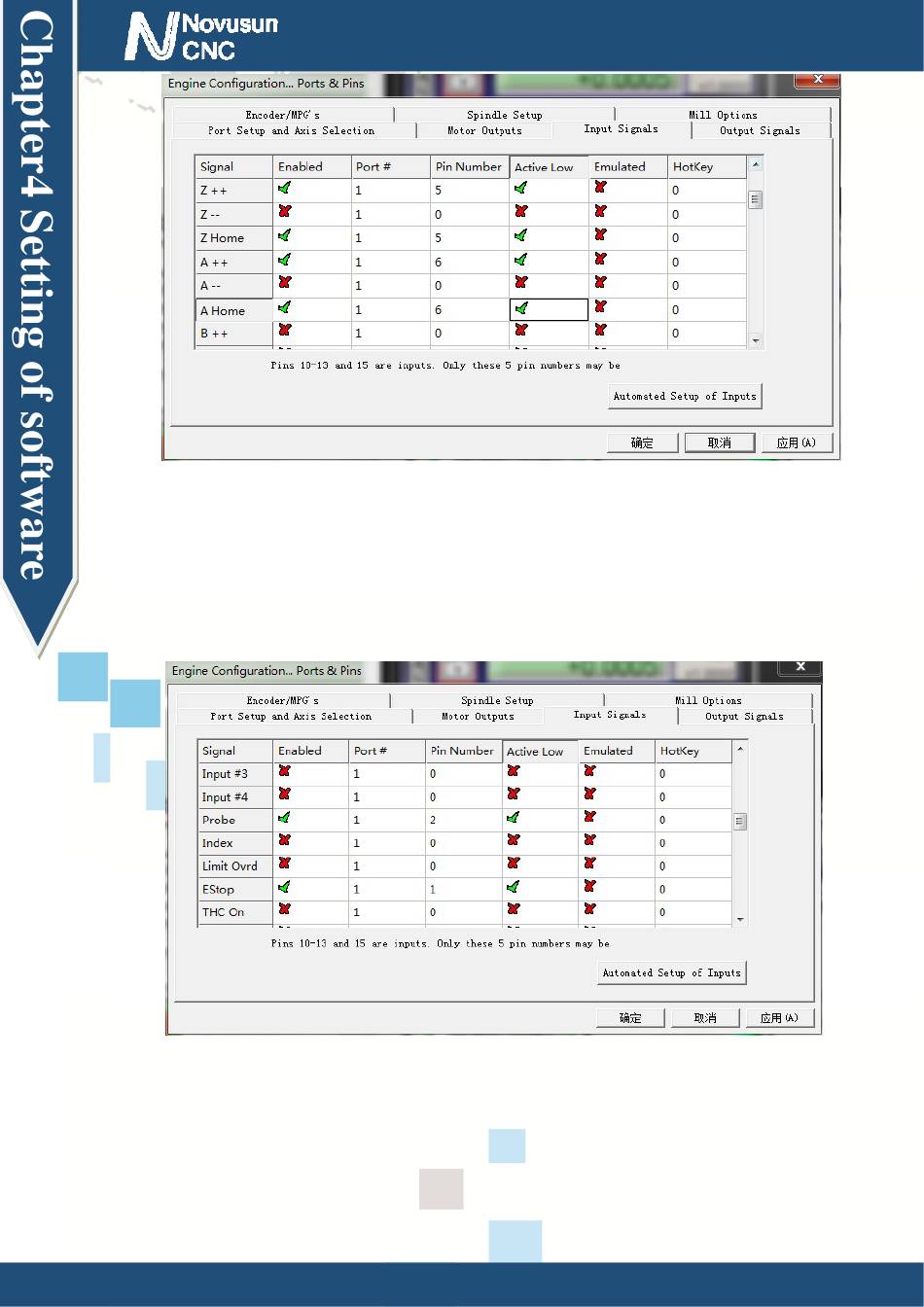

limited Input Settings dialog
Figure4-8.
Figure4-9. Estop and Probe dialog
