Manual of NVCM
To make the Z axis to the same direction, Z axis's "Dir low" should be set to"√".Other
axes's should be set as system need.

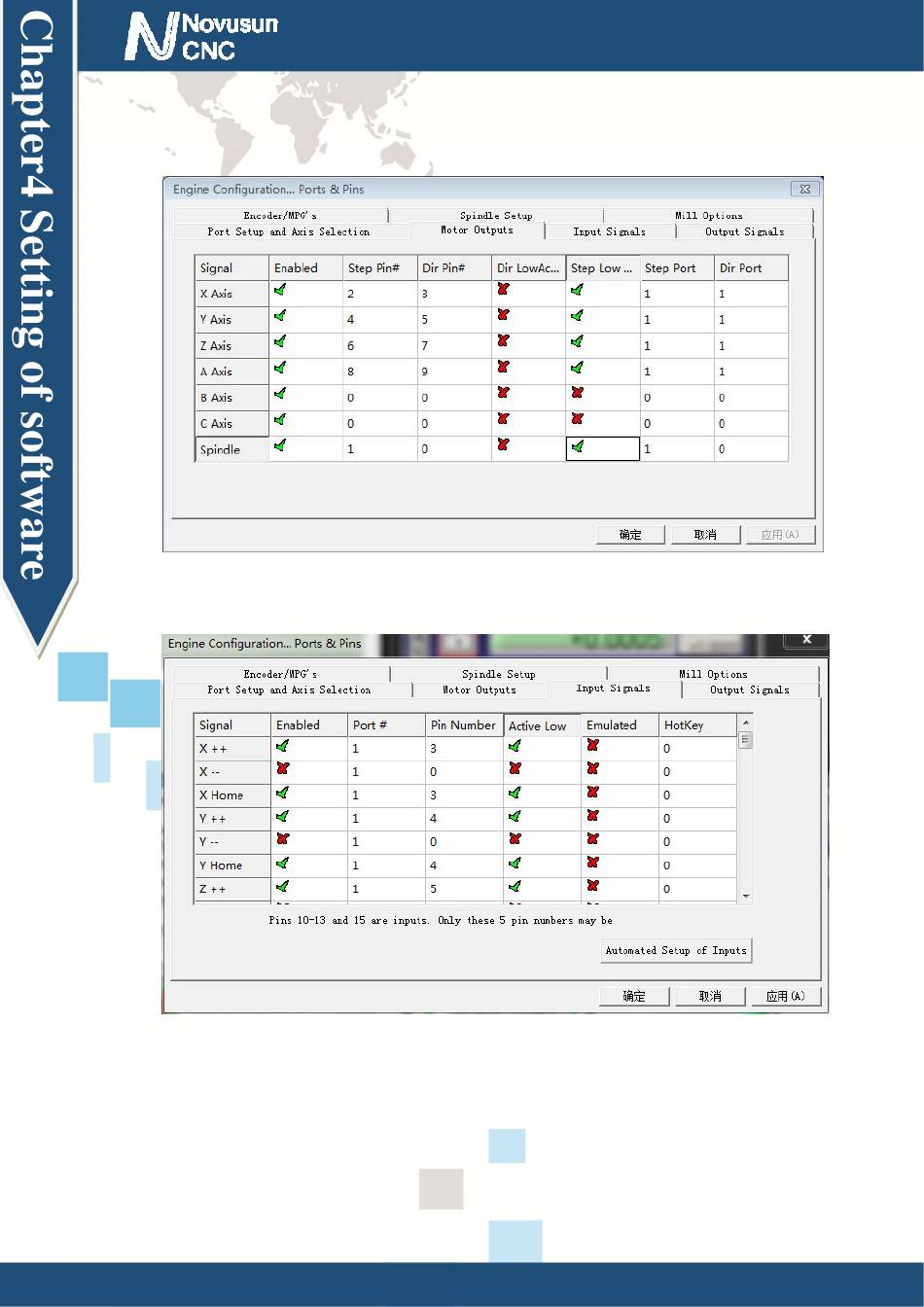

Figure4-7.
Stepper motor port settings dialog
Click "Input Signals" Into the input signal settings page. See as Figure4-8
- 21 -
