Manual of NVCM
orginal point direction, × means searching original point at negative direction; √ means searching
original points at the positive direction.As the pincture 5-3 shows,X axis's original position is at
the negative direction,Y and Z's original points are at the positive direction.

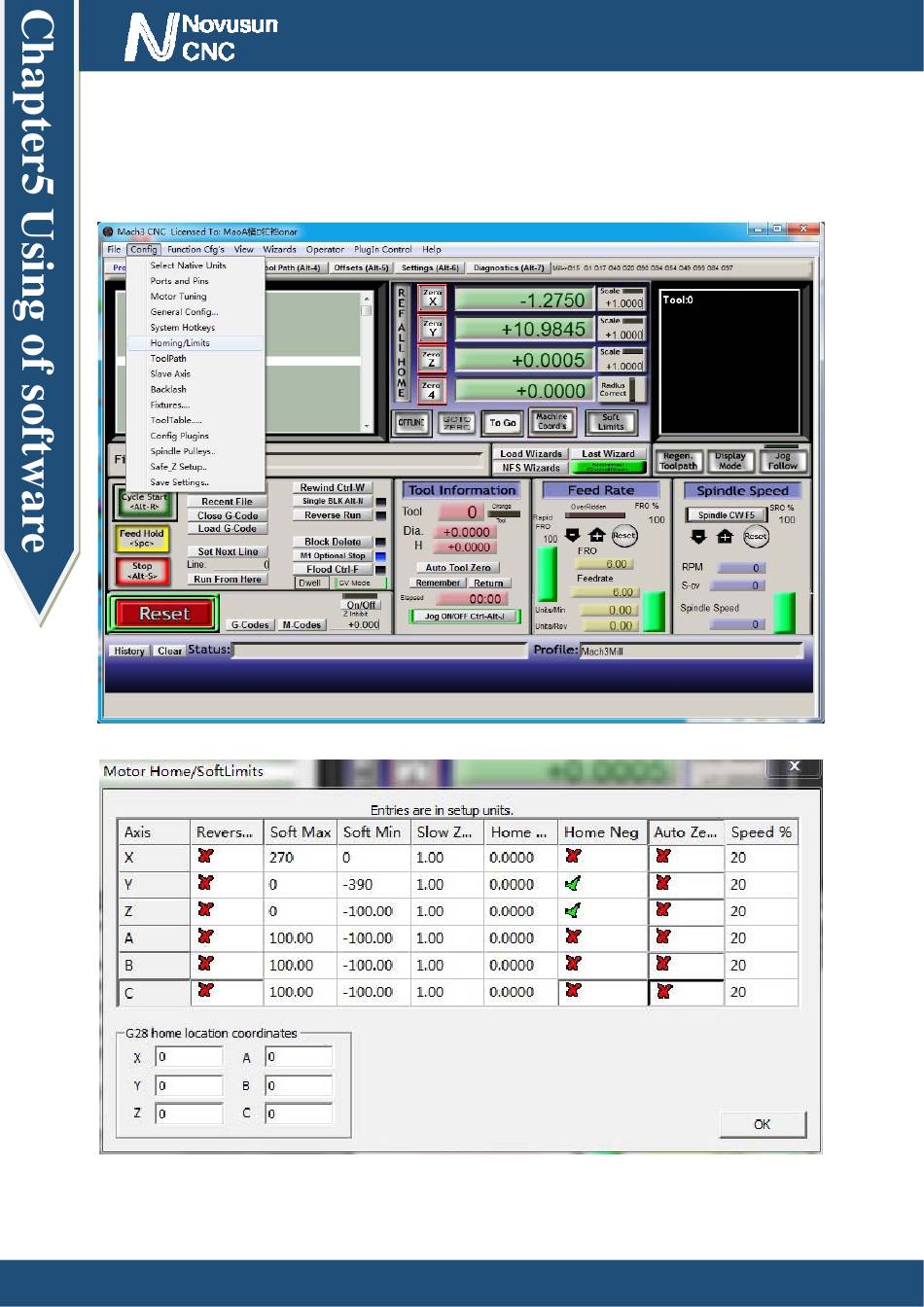

Figure5-2. Click homing of Config
Figure5-3. Motor Home and Softlimits dialog
2 Set soft limits 、
