Figure2-7.
VSO real output voltage=10V*s spindle setting speed/max spindle speed.Forexample,if max
spindle speed is 24000,current spindle speed is S=18000,so
voltage=10*18000/24000=7.5V.
Max. spindle speed setting ports as showed sa Figure 2-4,open it from Pulley from Menu
config. The current spindle speed can be set by S directive or Mach 3 spindle setting speed module.
Manual of NVCM

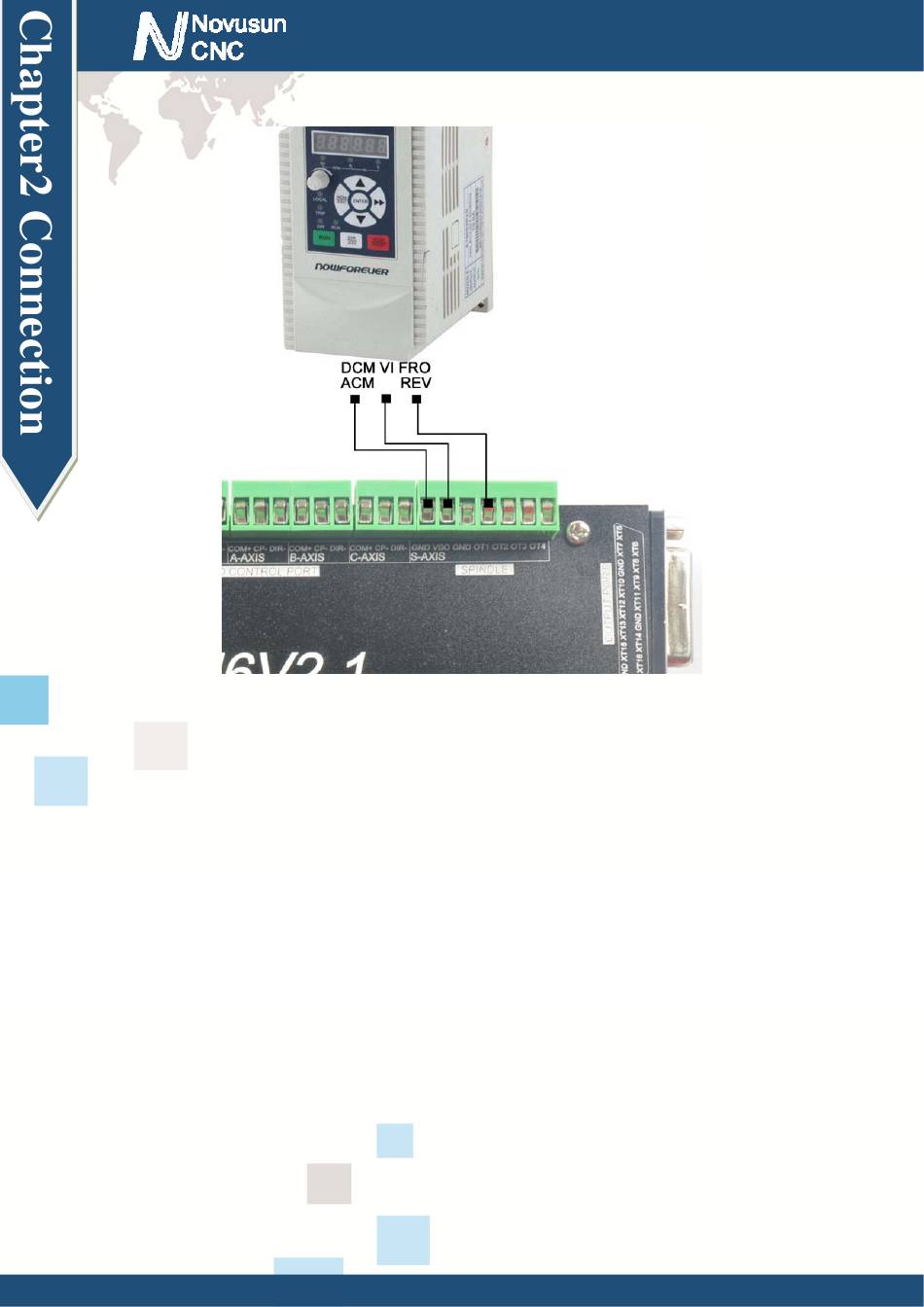

spindle control output and inverter connection
- 11 -
the VSO output
