Figure2-8.
Max spindle speed setting position
2.2.8 Stepper motor port.
As the Figure 2-2 show, The marked No. 8 are 6 axis stepper motor controller port. They are
X/Y/Z/A/B/C from left to right. Each axis's pin is defined as COM+/CP-/DIR- from left to right.

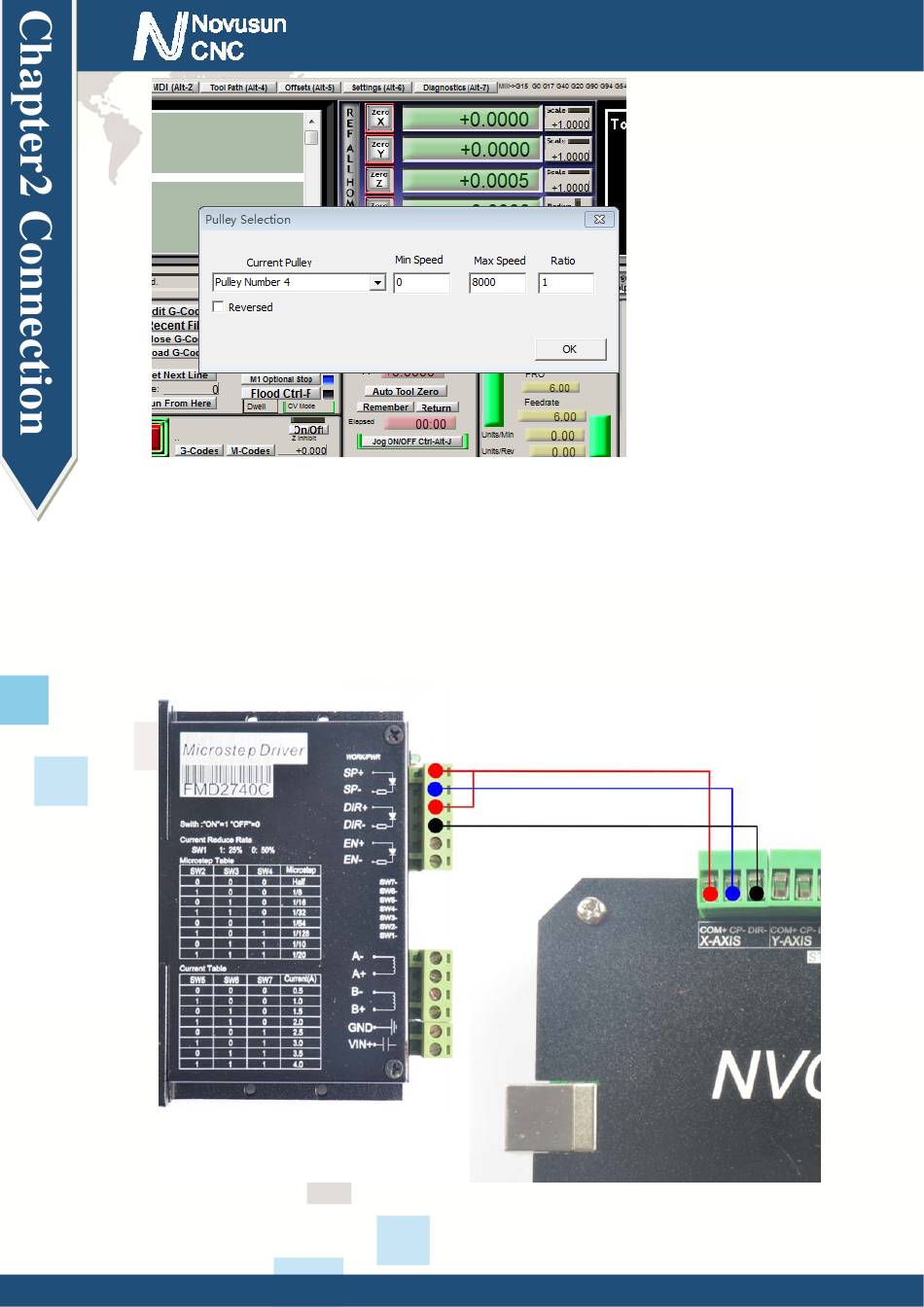

Wiring method see as figure 2-9.
Figure2-9.
Wire method of Stepper motor driver connecting to NVCM
- 12 -
