can support 4 axis stepper systems,200KHz pulse output for every axis;
ARM motion control chip;
Compatible with MPG input, support the digital display MPG from our company。

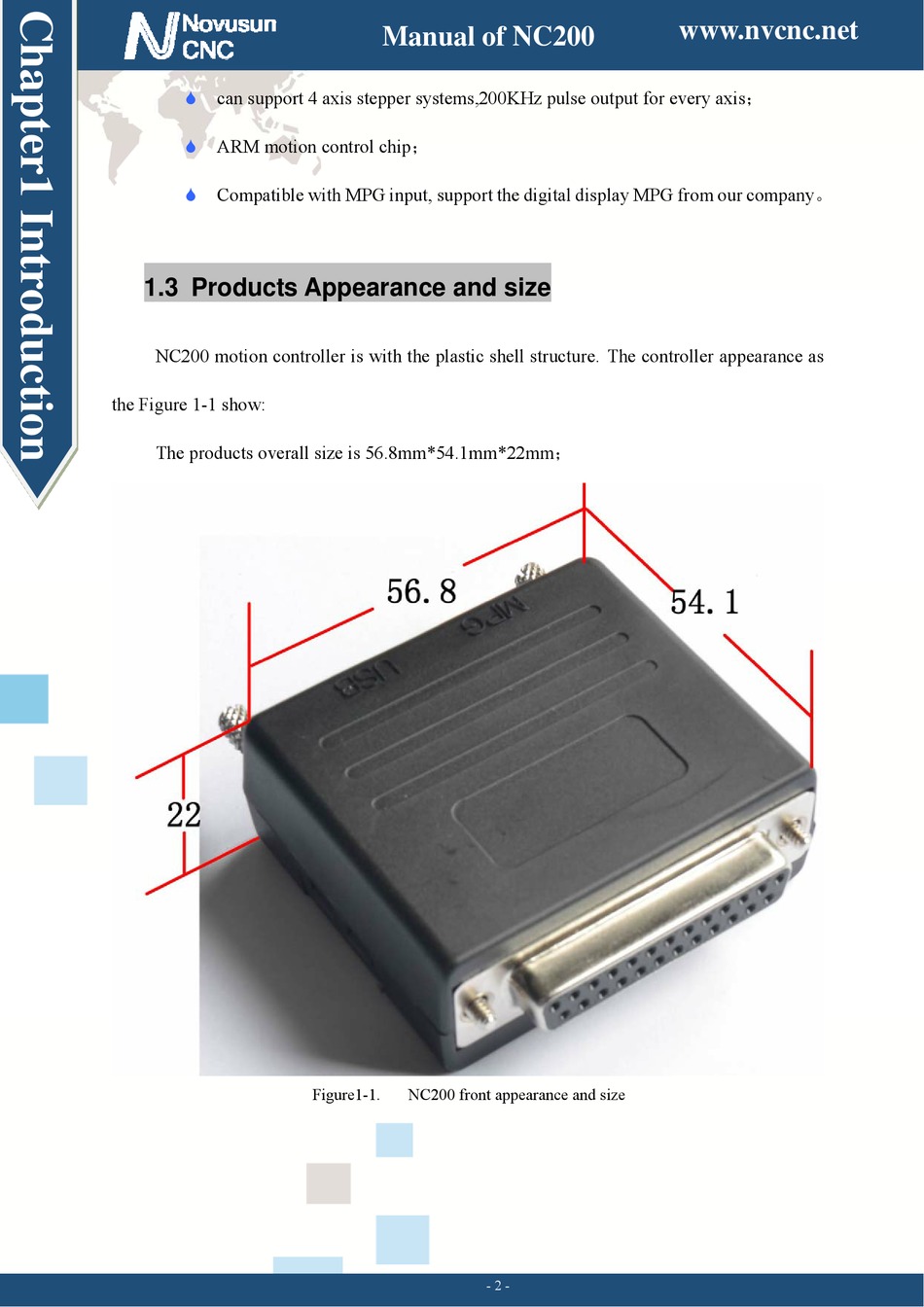

1.3 Products Appearance and size

NC200 motion controller is with the plastic shell structure. The controller appearance as
the Figure 1-1 show:
The products overall size is 56.8mm*54.1mm*22mm ;
Manual of NC200
Figure1-1.
NC200 front appearance and size
- 2 -
