Manual of NVCM

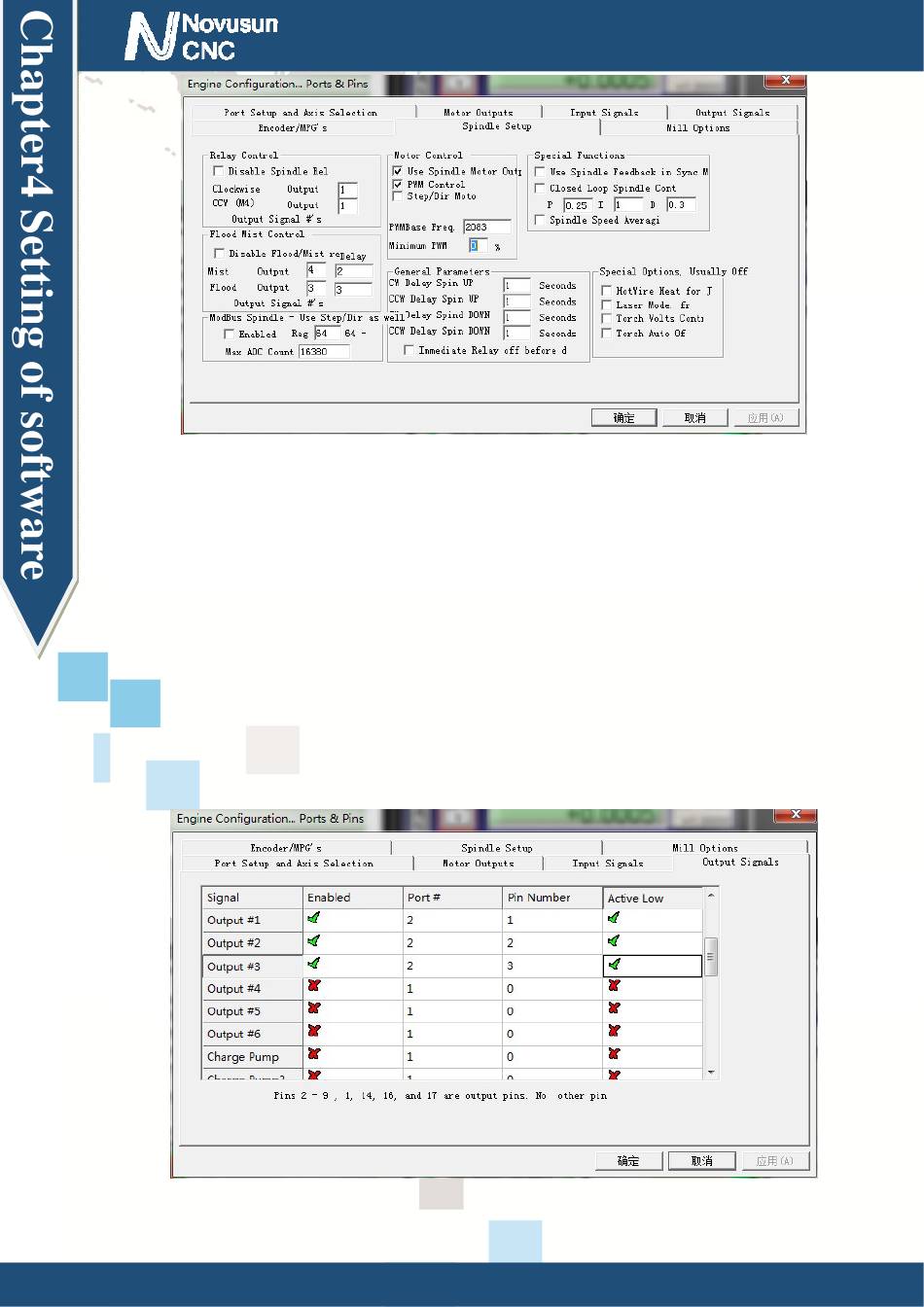

Spindle Settings dialog
Figure4-10.
Here we can configure the spindle rotates CW Reverse 、 CCW Mist Flood pin, See as 、 、
Figure4-10 ， They have been configured as 1 2 3 4. Corresponding to output#1~output#4 in 、 、 、
Figure4-11.output#1~output#6 in Output Signal Setup dialog can be Configured into these 4
signals. Here we only configure CW/MIST/FLOOD. CW is controlled by OUT1. MIST is
controlled by OUT2. Flood is controlled by OUT3. Here we note correspondence between 2
page. Please select "use spindle motor output" if required PWM speed spindle. And select " PWM
Control". Our PWM pin fixedly arranged on a special pin on Stepper motor setting dialog.
Figure4-11. Spindle setting corresponds to the output configuration
- 23 -
