Novusun CNC NVUM_SPv1.1 Manual

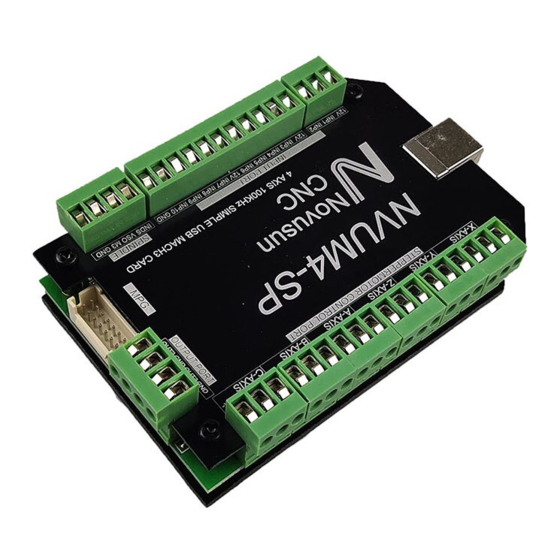

Simple usb card, mach3
Hide thumbs
Table of Contents

Advertisement

Quick Links

百年品质，值得信赖 —— 您的产品名称
MACH3 Simple USB Card
NVUM_SP
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVUM_SPv1.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Novusun CNC NVUM_SPv1.1

Summary of Contents for Novusun CNC NVUM_SPv1.1

  • Page 1 百年品质，值得信赖 —— 您的产品名称 MACH3 Simple USB Card NVUM_SP Manual...

  • Page 2: Table Of Contents

    www.nvcnc.com Manual of NVUM_SP 请在这里输入您的公司名称或产品名称 Contects Chapter 1.  Introduction ..........................- 1 -  1.1 Product Introduction ..........................- 1 -  1.2 Products specification ..........................- 1 -  1.3 Products Appearance and size ........................ - 2 -  1.4 substantival explanation ......................... - 3 -  1.5 Noting and Waring ..........................

  • Page 3: Chapter 1. Introduction

    Introduction 1.1 Product Introduction Novusun CNC has engaged in the Numerical control industry for 7 years, specialized in the research, development and production of various CNC controller systems with high quality and high reliability. We produce the Brushless DC motor, Stepper motor driver, and also 1 to 6 aixs CNC motion controllers.。...

  • Page 4: Products Appearance And Size

    Compatible with MPG input,support the digital display MPG from our company。 1.3 Products Appearance and size NVUM_SPv1.1 motion controller is with the sealed shell structure,there are 4pcs setting holes at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:...

  • Page 5: Substantival Explanation

    Manual of NVUM_SP www.nvcnc.com Figure1-2. The other side of NVUM_SPV1.1and installation dimensions 1.4 substantival explanation When operate the NVUM_SP,where will be a lot of English abbreviation,now we list all of them for your kindly references: FRO:Feedingadjust:During the operating process,the F value already set,and need to - 3 -...
  • Page 6 Manual of NVUM_SP www.nvcnc.com adjust the current feeding speed, then we can adjust FRO value to realize it. SRO: Spindle speed adjust: During the operating process, the S value already set, and need to adjust the current spindle speed, then we can adjust SRO value to realize it : Current Speed S#=setting S*SRO.

  • Page 7: Noting And Waring

    Manual of NVUM_SP www.nvcnc.com 1.5 Noting and Waring Free from exposure to the electronics without waterproof function.Please environment as dry as possible. This is the icon. Wiring warning, the IO input terminal of this equipment support the equipment with source switch (such as Inductive proximity switch.)When using such kind of switch, attention please: avoid the +terminal and –terminal of power supply to connect with GND.This equipment’s analogy quantity output terminal of spindlecontrolalos have a certain load capacity.

  • Page 8: Chapter 2. Connection

    www.nvcnc.com Manual of NVUM_SP Chapter 2. Connection 2.1 Device Power supply Solution The power supply solution in the field of the Industrial automation is always very complicated,there is a lot of the GND,now we descript the structure of the power supply as below: The power supply structure as the Figure 2-1,main power supply input and MPG module and stepper control output module are common GND,Limited and Estop input module and Spindle speed adjust M3/M8/M1 module are common GND,between main power supply and output...

  • Page 9: Product Connection Define And Method

    www.nvcnc.com Manual of NVUM_SP 2.2 Product connection define and method Figure2-2. Product wiring section and interface summary As the Figure 2-2 showed,the connection of the controller includes USB connection interface, MPG interface, Stepper/Servo control output interface, spindle control output interface, Estop and limited switch and tool setting input interface and so on.
  • Page 10 www.nvcnc.com Manual of NVUM_SP Pin mark Axis Definition Commom+ common anode +5V COM+ X axis Pulse output- for X axis CPX- Directrion output- for X axis X axis DIX- Pulse output- for Y axis Y axis CPY- Directrion output- for Y axis Y axis DIY- Pulse output- for Z axis...
  • Page 11 www.nvcnc.com Manual of NVUM_SP Figure2-3. Stepper driver connection 2.2.2 Common IO output interface See as Figure 2-2, The port marked 2 is Common IO output interface. Include OUT2\GND\OUT3\GND from down to up,open drainoutput, internal structure as Figure 2-4： Figure2-4. OUT2-OUT3 internal structure - 9 -...
  • Page 12 www.nvcnc.com Manual of NVUM_SP Now just make a switch between OUTX(X=1-3) and GND,to control the relay output, the connection as the Figure 2-5.External power supply need to accord with the relay specification,the internal optocoupler GND open circuit only can absorb less than 50mA current,if relay absorb the current over 50mA,pls add current amplifier.
  • Page 13 www.nvcnc.com Manual of NVUM_SP Figure2-6. Pins Number of MPG Pin No. MARK Definition Notes MPG serial communication For the digital display MGP communication Output Port MPG serial For the digital display MPG communication communicationinput Port MPG Ground MPG power supply GND. VDD5 MPG power supply 5V MPG power supply 5V output...
  • Page 14 www.nvcnc.com Manual of NVUM_SP X Axis selected switch X-IN Short connect with GND meanas selecting X aixs,cutoff means don’t select Y Axis selected switch Y-IN Short connect with GND meanas selecting Y aixs,cutoff means don’t select Z Axis selected switch Z-IN Short connect with GND meanas selecting Z aixs,cutoff means don’t select...
  • Page 15 www.nvcnc.com Manual of NVUM_SP NVUM_SP PIN No. MPG pin No. and color Estop 1multiplication 1 10multiplication 10 100multiplication 100 X100 X selecting Y selecting Z selecting A selecting B selecting C selecting A Phase + A Phase - B Phase + B Phase - 0V/CN/COM +5V-W...
  • Page 16 www.nvcnc.com Manual of NVUM_SP NVUM_SP Pin No. MPG Pin No. and color WHA+ green WHA- Black WHB+ white WHB- Black Table 2-1. Connection Between Single MPG and NVUM_SP 2.2.4 Spindle control output We define the interface from left are: INDS(spindle speed feedback input), VSO(0-10V adjustable speed output), M3(Spindle run switch), GND1(Output GND).
  • Page 17 www.nvcnc.com Manual of NVUM_SP VSO real output voltage=10V*s spindle setting speed/max spindle speed.Forexample,if max spindle speed is 24000,current spindle speed is S=18000,so the VSO output voltage=10*18000/24000=7.5V. Max. spindle speed setting ports as showed sa Figure 2-8,open it from Pulley from Menu config.The current spindle speed can be set by S directive or Mach 3 spindle setting speed module.
  • Page 18 www.nvcnc.com Manual of NVUM_SP Figure2-9. Internal structure drawing of Input interface 2 lines Proximity Switch/ordinary fretting switch/ESTOP/probe drawing see as Figure 2-10 Figure2-10. 2 lines Proximity Switch/ordinary fretting switch/ESTOP/probe drawing 3 lines Proximity Switch connection Figure 2-11,brown cable for Proximity switch connect with 12V,Black cable connect channel,blue cable connect with GND1.
  • Page 19 www.nvcnc.com Manual of NVUM_SP Figure2-11. PNP 3 lines Proximity Switch connection drawing 2.2.6 USB Port As the Figure 2-2 show,The marked No. 6 port is USB communication port, NVUM_SP communicate with mach 3 through it. - 17 -...

  • Page 20: Chapter 3. Software Installation

    www.nvcnc.com Manual of NVUM_SP Chapter 3. Software Installation 3.1 MACH3 Install When you purchase our product, we will supply a CD-ROM, which contains the MACH3 installation, registration, and USB plug-ins. See as Figure 3-1 Figure3-1. MACH3 soft installation First run the installation Mach3Version3.043.066 .Into the first page.
  • Page 21 www.nvcnc.com Manual of NVUM_SP Figure3-2. MACH3 installation process 1 Click Next and then enter the page shown in Figure 3-3 Figure3-3. installation process Select I agree and click Next，See as Figure 3-4. - 19 -...
  • Page 22 www.nvcnc.com Manual of NVUM_SP Figure3-4. MACH3 installation process Select the installation path, click Next (it can be installed on any disk, and recommended to install the C drive or the D drive) See as Figure 3-5 Figure3-5. MACH3 installation process Click Next until completion.

  • Page 23: Nvum_Sp Plug-In Installation

    www.nvcnc.com Manual of NVUM_SP 3.2 NVUM_SP Plug-in installation Copy the file NVUM_SP.dll to X:\Mach3\PlugIns ， X is the disk where the soft is installed. - 21 -...

  • Page 24: Chapter 4. Setting Of Software

    www.nvcnc.com Manual of NVUM_SP Chapter 4. Setting of software 4.1 Open software Double-click the mach3mill 。 Enter mach3 software. Pop-up the plug-in dialog box. See as Figure 4-1. Figure4-1. Plugin selection dialog Choose our plugin NVUM_SP_Novusun-PlugIn---Ver- 2.0a Then press OK. If you do not 。...

  • Page 25: Software Common Settings

    www.nvcnc.com Manual of NVUM_SP 4.2 Software Common settings 4.2.1 Check NVUM_SP plugin Click config plugins to input PluginConfig,you can seeNVUM_SP. See as Figure4-4. Figure4-3. Input Config plugins Figure4-4. MVUM Plugin - 23 -...
  • Page 26 www.nvcnc.com Manual of NVUM_SP 4.2.2 Motor operating parameters setting Figure4-5. Motor operating parameter setting menu entry See as Figure 4-5.From submenu “motor tuning” of the menu “config” into the motor parameter settings dialog. See as Figure 4-6 Figure4-6. Motor operating parameter settings dialog The parameters are defined as follows: teps per Pulse equivalent ,it is number of pulses required with axial movement 1mm, This ：...
  • Page 27 www.nvcnc.com Manual of NVUM_SP motor 8 segments, Calculation method is 8*200/2.5=640 。 Velocity The speed is the axial velocity, Units is mm/s Recommended settings 1500. ： ， Acceleration Units is mm/s2 Recommended settings 200. ： ， Step Pulse Step Pulse Cannot be set, it’s 2.5us in default. ：...
  • Page 28 www.nvcnc.com Manual of NVUM_SP Figure4-8. Pin&Port Dialog The sub-pages you need to set include “Motor Outputs”, “Input Signals”, “Output Signals” and “Spindle Setup”.First Click to enter “Motor Outputs”. This page is to select the stepper motor control pin. Because our usbmach3 interface board stepper motor signals are fixed, So here only need to Select, no need to select the specific pin.
  • Page 29 www.nvcnc.com Manual of NVUM_SP limited Input Settings dialog Figure4-10. Here you can configure according to your actual needs the corresponding function. Optional Function include XYZABC6axis’s Upper and lower limit 、 XYZABC6axis’s HOME point. Figure4-11. Estop Probe and index Setting dialog PROBE ESTOP and Spindle speed back index Setting see as Figure 4- ，...
  • Page 30 www.nvcnc.com Manual of NVUM_SP Click “Spindle Setup” switch to the spindle settings page. See as Figure4-12. Spindle Settings dialog Figure4-12. Here we can configure the spindle rotates CW Reverse 、 CCW Mist Flood pin, See as 、 、 Figure4- ， 13 They have been configured as 1 2 3 4.

  • Page 31: Chapter 5. Using Of Software

    www.nvcnc.com Manual of NVUM_SP Chapter 5. Using of software 5.1 Set Machine Coordinate system Firstly Open the software,as the drawing 5-1 shows,at this time,the software can operate the machine movements,but before the setting machine coordinate system,there is no connection between the software and machine.So first step is to set the machine coordinate system. Figure5-1.
  • Page 32 www.nvcnc.com Manual of NVUM_SP orginal point direction, × means searching original point at negative direction; √ means searching original points at the positive direction.As the pincture 5-3 shows,X axis’s original position is at the negative direction,Y and Z’s original points are at the positive direction. Figure5-2.

  • Page 33: Set Workpiece Coordinate System

    www.nvcnc.com Manual of NVUM_SP As Figure 5-3 shows,this page also can set machine soft limit points,Soft Max is positive direction soft limited points,soft Min is negative direction soft limited points.The soft limited points values is according the references to the machine coordinate system,so as this example shows,Y and Z axis’s max value is 0,all the effective coordinate data is less than 0.As the Figure shows,according to our current request,we set our XYZ axis soft limited points area as [0,270] [-390,0] [-100,0].
  • Page 34 www.nvcnc.com Manual of NVUM_SP one or more workpiece coordinate system. 1 、 Move to current working piece 0 point Firstly hold down the material,use keyboard or pendant to move tool tip at the 0 point,so this 0 point is the working piece 0 point,it related with the working G code file,so the user must be very familiar to his own working G code.As our example shows,the 0 point is on the center of the working piece surface,so we just move the tool tip to this position.

  • Page 35: Open G Code File And Run

    www.nvcnc.com Manual of NVUM_SP Figure5-6. Main Screen after ZERO all axis 5.3 Open G code file and run As Figure 5-7 shows,press “load G code” botton at the main page or open “Load G code” at main menu “File”,open your G code.It displayed as Figure 5-8 showing,then press button “cycle start”...
  • Page 36 www.nvcnc.com Manual of NVUM_SP Figure5-7. Press Load G-Code and open your G code Figure5-8. After opening G code,press “Cycle Start” and start to work - 34 -...

  • Page 37: Chapter 6. Question & Answer

    www.nvcnc.com Manual of NVUM_SP Chapter 6. Question & Answer 6.1 Q&A for Hardware 6.2 Q&A for Software - 35 -...

  • Page 38: Chapter 7. Contract Us

    www.nvcnc.com Manual of NVUM_SP Chapter 7. Contract us  Website：WWW.NVCNC.COM  Support Email：Support@nvcnc.com - 36 -...
