Default Configuration

Default Configuration
The ADZS-AD2428MINI board is designed to run as a standalone unit.

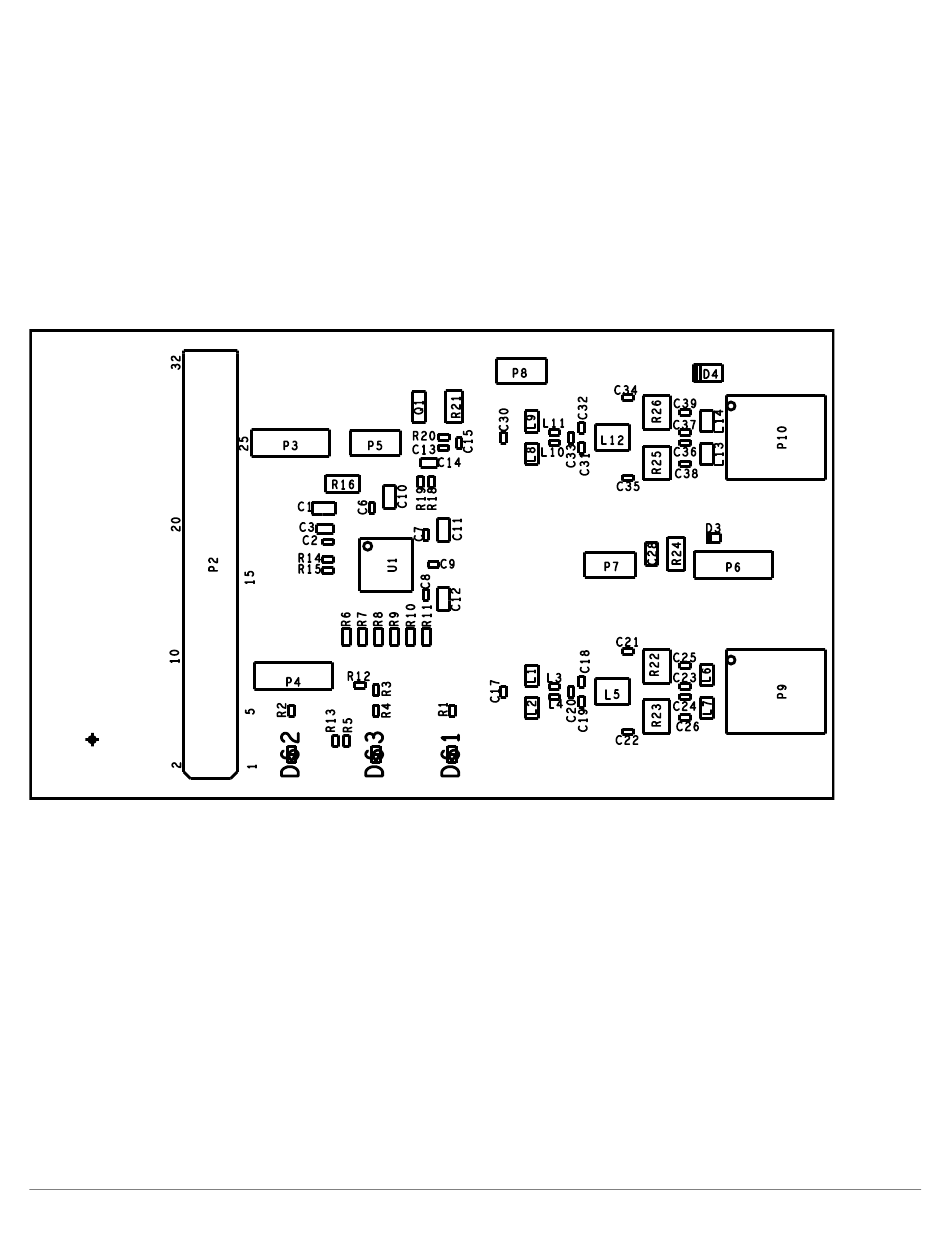

The Default Hardware Setup figure shows the default settings for jumpers and switches and the location of the
jumpers, switches, connectors, and LEDs. Confirm that your board is in the default configuration before using the
board.
Default Config
Figure 2-1: Default Hardware Setup

Reference Design Information

A reference design info package is available for download on the Analog Devices Web site. The package provides
information on the schematic design, layout, fabrication, and assembly of the board.
The information can be found at:
https://my.analog.com/en/myanalog/a2b/a2b-technology.html
2
24AA512T - 512K I C Serial EEPROM
The Microchip Technology Inc. 24AA512 is a 512Kb (64K x 8) Serial Electrically Erasable PROM (EEPROM),
capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power
2–2 ADZS-AD2428MINI Manual
