3.1.3 The Gas connection

After the "NEARBOX" has removed from the of the back of the fire, you can place it loosely on the
ground in proximity to the opening provided in the wall of mantelpiece. The device is always con-
nected with an approved gas tap 1/2, and preferably with a yellow gasflexible that is reachable at all
times. Provide the mantelpiece with a door so that the valve and the electrical connection is easily
accessible.

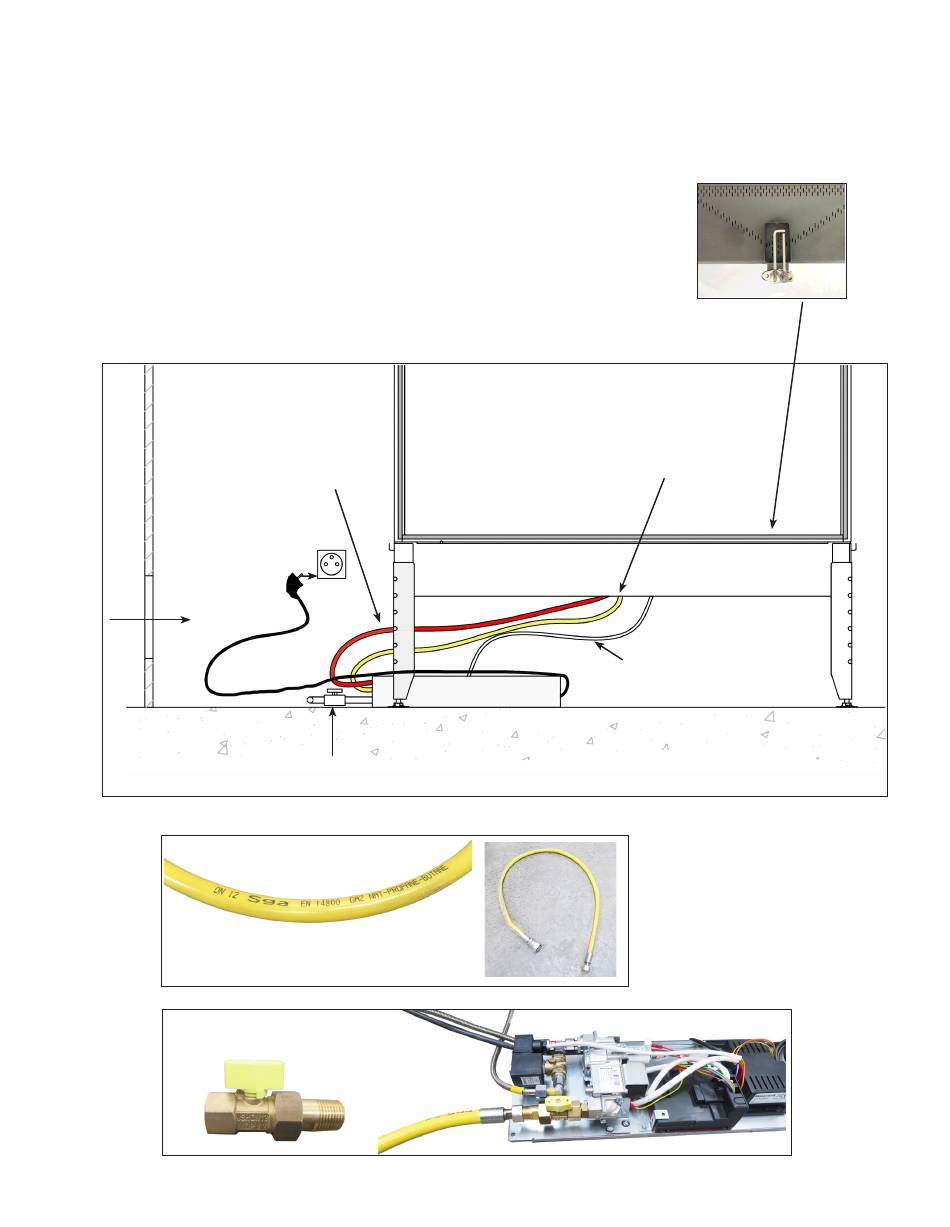

GAS SUPPLY TO MAIN BURNER ( RED)
Opening provided in wall
for maintenance
Instructions for installation and use TRUE VISION Gas
GAS SUPPLY TO SIDE BURNER OR SECOND
BURNER (YELLOW)
220V
NEARBOX
Connection Gas 1/2" (provide tap)
flexible for GAS
Valve 1/2"
True Vision is provided with
a direct ignition , no starting
pilot
Cable to ionistation pin
