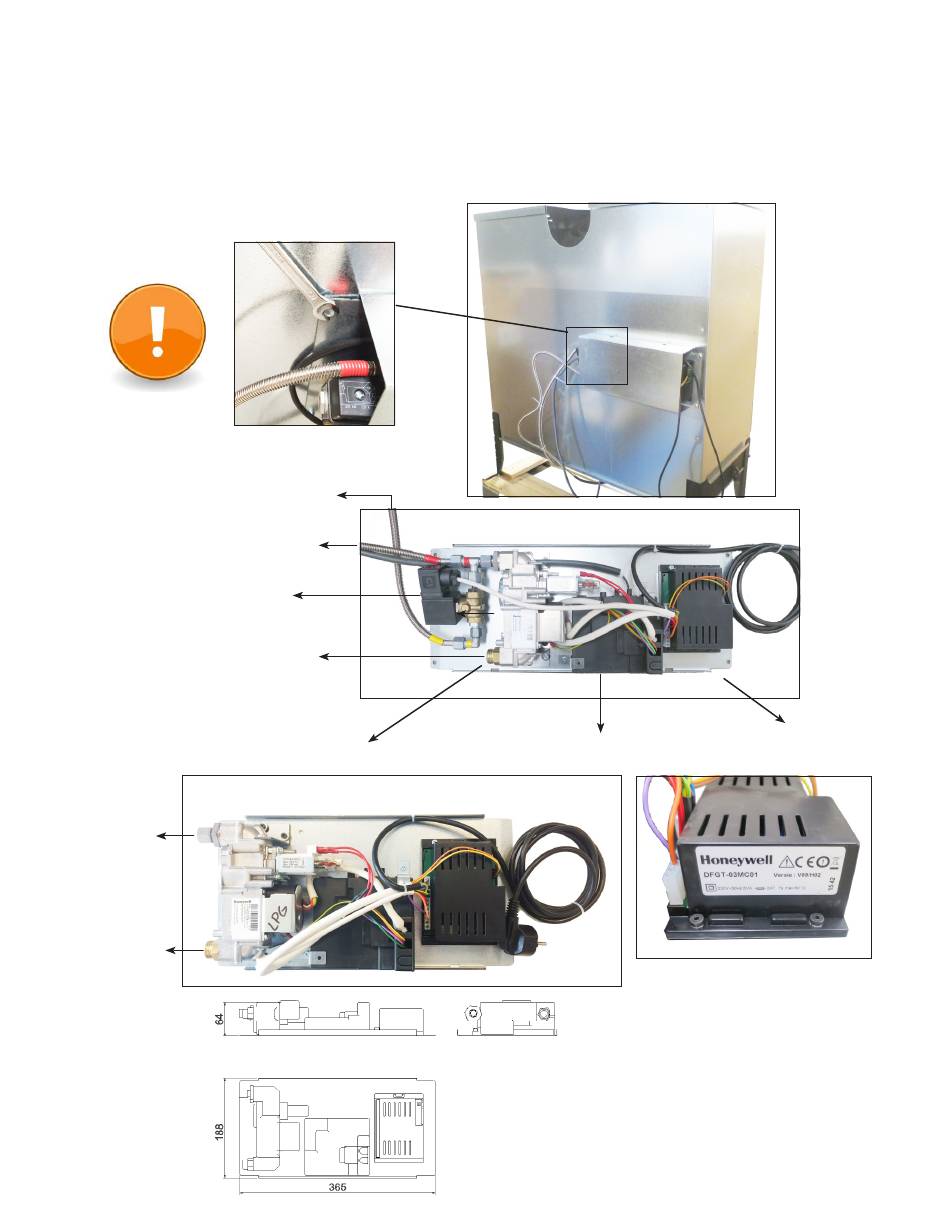

3.1.2 Nearbox (gasunit)

For safety reasons, The gasbattery or "NEARBOX" is fixed with screws at the rear of the unit
during transport .
THE UNIT CANNOT BE INSTALLED WITH THIS NEARBOX FIXED AT THE REAR, IT IS MAN-
DATORY TO UNSCREW THE BATTERY FROM THE REAR PRIOR TO INSTALLATION .
unscrew 4 screws in the corners
(key 8)
to second burner or side burner
to main burner
Electro magnet ventil 1 or 2 burners
gas connection 1/2"
Gas valva
VK4105ME5004
to main burner
gas connection 1/2"
NEARBOX FOR 1 BURNER
(455 2 burners)
Instructions for installation and use TRUE VISION Gas
NEARBOX FOR 2 BURNERS
Transmitter burner S4965C3029
reciever
DFGT-03MC01 V09
7
