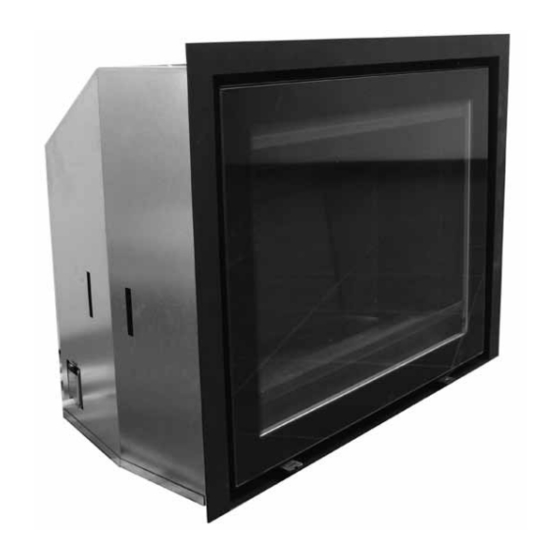

M Design INTERRA 60 Instructions For Installation And Use Manual
Hide thumbs
Also See for INTERRA 60:
- Instructions for installation and use manual (43 pages) ,
- Installation manual (18 pages)
Related Manuals for M Design INTERRA 60
Summary of Contents for M Design INTERRA 60
- Page 1 INTERRA 60-68-74-78 INSTRUCTION FOR INSTALLATION AND USE download this document on www.m-design.be UK 08/2012...
-
Page 2: Table Of Contents
SUMMARY 1. GENERAL ..........1.1 TRANSPORT AND INSTALLATION 1.2 FUEL ............1.2.1 Wood 1.2.2 Forbidden fuel 1.3 STARTING THE FIRE ......2. INSTALLATION ........2.1 ACTIONS TO BE TAKEN UPON INSTALLATION DISMANTLING THE COMBUSTION CHAMBRE 2.2 CONVECTION CURRENT....2.2.1 Natural convection 2.2.2 Convection generated by a fan (optional) 2.2.3 Fan dimmer 2.3 AIR SUPPLY FOR COMBUSTION .. -
Page 3: General
1. GENERAL 1.1 TRANSPORT AND INSTALLATION • Transport the INTERRA in an upright position, or, in encumbering circumstan- ces, at an angle of 45°. Remove screws on the pallet ( pic 1) • The handles for transportation ( optional )purposes have been attached inside the slots provided on the sides of the INTERRA . -
Page 4: Starting The Fire
1.3 STARTING THE FIRE • Open the window (pic.). • Put a bed of tinder (paper or firelighters) with a little kindling (small twigs or pieces of wood) in the stove and light the tinder. • Leave the door slightly ajar (+ 3 cm) to get a turbo stream of air that will make the kindling catch fire quicker. -
Page 5: Installation
2. INSTALLATION 2.1 ACTIONS TO BE TAKEN UPON INSTALLATION Your supplier is the specialist who chose to represent M-design in your area. For your own safety and satisfaction, we advise you to entrust him with the installation. The appliance has to be installed according to certain prescribed rules and local regula- tions. -
Page 6: Dismantling The Combustion Chambre
DISMANTLING THE COMBUSTION CHAMBRE Remove metal piece nr 1 and in order 2,3 and 4, Lift up the door and remove it. the chamot and deflector Remove baffle plate Lift up with two persons the front and slide it out of the exterior frame INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD... -
Page 7: Natural Convection
2.2 CONVECTION CURRENT The INTERRA can be ordered with or without pre-installed fan . This must be con- firmed when ordening. 2.2.1 Natural convection Without fan you are not obliged to use the hot air vents. But if above the fireplace there is a decorative wooden beam or other combustible material you have to install Hot Air Vents. -
Page 8: Air Supply For Combustion
2.3 AIR SUPPLY FOR COMBUSTION Every form of combustion uses air. In the case of a thermally sealed room supplemen- tary air is essential. You have to avoid creating under-pressure in the room. Please be carefull and look out that enough fresh air is available in the living room. If a cooking hood appears to be absolutely essential in a adjoining room, sufficient air supply will have to be provided to avoid every form of under-pressure. -
Page 9: Installation Without Fan
2.4 INSTALLATION WITHOUT FAN AND WITH HOT AIR VENTS Without fan you are not obliged to use the hot air vents. But if above the fireplace there is a decorative wooden beam or other combu- stible material you have to install Hot Air Vents. When using a fan it is not obligatory to connect air ducts. -
Page 10: Flue
2.5 THE FLUE The standard diameter of the Interra exhaust is: INTERRA 60 Ø 150 INTERRA 68 Ø 180 INTERRA 74 Ø 180 INTERRA 78 Ø 180 The construction of chimney must comply with strict conditions: • The flue must be thermally insulated. -
Page 11: Adjusting The Baffle Plate
2.5.2 ADJUSTING THE BAFFLE PLATE AND DEFLECTOR FOR INTERRA TO CONTROL DRAUGHT. Baffle plate unscrew to have max closing. Screw to let baf- max closing of baffle plate with door closed fle plate inclinated. max geschlossen klappe mit tür geschlossen Door open Deflector Pos. -
Page 12: General Recommendations
3. GENERAL RECOMMENDATIONS The appliance must be connected to the flue pipe and tested before the material is cemented in. In order to ensure that the appliance functions optimally, one must insulate the hot air ducts completely, comply with the minimum of the diameter measurements for the hot air ducts and hot air vents and the chimney must be ad- justed. -
Page 13: Guarantee
4 GUARANTEE 4.1 TERMS AND ITEMS COVERED • 8 years’ guarantee on the general structure. • 2 years’ guarantee on the parts and on the baffle plate • 1 year’s guarantee on the fans and the speed variator. • No guarantee on glass, seals or Chamotflex plates 4.2 PROVISO This contract ceases to be valid if the instructions and guidelines of these operating in- structions were not followed. -
Page 14: Drawings
5. DRAWINGS Interra 60 INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD... - Page 15 Interra 68 INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD...
- Page 16 Interra 74 INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD...
- Page 17 Interra 78 INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD...
-
Page 18: Finishing Frames
6. FINISHING FRAME ( OPTIONAL ) A 4 sided or 3sided frame can be mounted on the interra, even after the installation the frame can be added. It’s slides inside the exterior frame of the INTERRA 3-SIDED FRAME 4-SIDED FRAME INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD... -
Page 19: Measurements Frames 4-Side
INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD... -
Page 20: Measurements Frames 3-Side
INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD... -
Page 21: Spare Parts
INSTRUCTION FOR INSTALLATION AND USE - INTERRA - WOOD...
