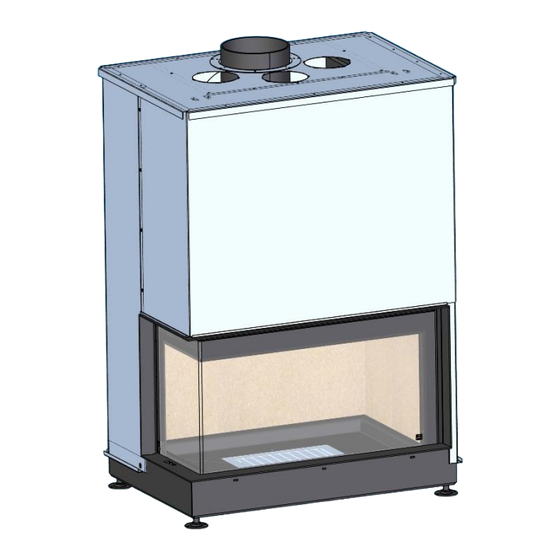

- Page 1 COLLECTION LUNA HC INSTRUCTION FOR INSTALLATION AND USE...
-
Page 2: Table Of Contents
Attention : THE SUPPLIER TAKES NO RESPONSIBILITY FOR ANY POSSIBLE DAMAGE, POWER LESS WORKING APPLIANCES DUE TO ACCIDENT AS A RESULT OF INCORRECT INSTALLATION. SUMMARY GENERAL ..............................3 TRANSPORT AND INSTALLATION ......................3 FUEL ............................... 3 1.2.1 Recommended fuel: Wood – hard, soft – damp cca 16% ..............3 1.2.1.1 Optimal operation ............................ -
Page 3: General
GENERAL TRANSPORT AND INSTALLATION °. The LUNA is transported in a horizontal position or if there are some problems – in angle-wise 45 To make transport easier you can use a set of solid rubber belts. Before the installation is important to unlock /put out/ transport plug. Plug is placed behind covers on face sheet. -
Page 4: Starting The Fire
STARTING THE FIRE Regulation at maximum /see pic.14/ Open the door /pic.2a /. Put a bed of tinder(paper or firelighters) with a little kindling (small twigs or pieces of wood) in the stove and light the tinder. Let the door a little open /+3cm/, so as chimney effect arose, which helps the kindling start the fire. -
Page 5: Location The Fireplace Furnace Type Series „Luna Hc" On The Floor
The fireplace type series „LUNA HC“ must be installed so that before it left space on the layout, about 1 x 1 m. Basis respectively base under fireplace type series „LUNA HC“ must be straight fire material and must withstand heat stress. Also, wall and ceiling material, which the fireplace type series „LUNA HC“ may not be from combustible materials, respectively should be used for good thermal insulation Combustion pipe must be fitted to the fireplace chimney`s mounthpiece furnace type series „LUNA HC“... -
Page 6: Location Fireplace Furnace
LOCATION FIREPLACE FURNACE FIREPLACE INSERT SHOULD NOT BE LAID ON THE FLOOR DUE TO THE NATURAL FLOW OF AIR. AIR-INTAKE OPEN IS LOCATED AT THE REAR OF FIREPLACE FURNACE./PIC. 3A/ Pic.3a Pic.3b Setting up the fireplace insert can be in two ways: Fine-tuning using screws /pic.3b/. -
Page 7: Installation Of 3-Sided Frame
INSTALLATION OF 3-SIDED FRAME - 3-sided frame is part of the fireplace furnace type series „Luna HC“..č.5a - Assembly and disassembly of teh frame by screwing and unscrewing convert screws/pic.5a,5b,5c/. It should remove the side rails first. The top part is necessary for the authorization hold the screws to avoid damaging the glass. -
Page 8: The Hot-Air Distribution
2.11.2 The hot-air distribution The heat-insulated pipes are essential for optimal functioning of the device. (Causing air flow - move) Using a larger number of tubes (minimum 2) is better traction and noise caused by a stroke is reduced. The installation of these tubes is best to keep them upright for at least one meter up then change direction, rather do a wide bend and the exhaust grille with less resistance to air flow, because the lower velocity means lower efficiency heat register. -
Page 9: Chimney
2.12 CHIMNEY The design of the chimney must meet strict conditions: • The chimney must be insulated • One stack may have more than two changes of direction. The angle of this change of direction must be greater than 30 ° - 45 ° from the vertical direction •... -
Page 10: Control
CONTROL Control the fireplace furnace Luna HC driver controls the front bar/see pic.14a /by help of key/pic.14b/. By controllin the flow of air to control your heater /secondary,primary/, /pic.15/. Open the door control doees not affect the combustion. Pic.14b Pic.14a Way of exhaust gas Regulation clapper... -
Page 11: General Recommendations
GENERAL RECOMMENDATIONS The device must be connected and tested before there is doing the surround. To make sure the equipment is working optimally, they must be cured with tubes isolated. They must meet the minimum diameter of the tube with hot air / flue / a diameter of a heat. Do not place flammable materials in close proximity to the fireplace insert. -
Page 12: Cleaning Glass
4.1.1 CLEANING GLASS Close the door / pic.2a./ Secure the door in position for cleaning glass. /pic.2b./ ( mae sure that the bottom edge of the glass is about 1,5 cm above the lower ledge and whether the track sliding door is not an obstacle!) Slide the door towards the front /see pic.2c/ You can then clean the glass We recomment the cleaning product that you can use the M-design „Bio –... -
Page 13: Suplied Accessories
SUPLIED ACCESSORIES door opener 1pc hub 5 pc taker of ash 1pc operating instrctions, guarrantee and certificate of quality and completeness of the product Warning!!! The correct and safe operation of the fireplace furnace type series „LUNA“ it is imperative to observe the operating instructions and installation!!! SIGN Identification of the type of fireplace type „LUNA HC“... -
Page 14: Serie - Size
SERIE - SIZE... -
Page 15: Spare Parts - Luna Hc
SPARE PARTS – Luna HC... - Page 16 SPARE PARTS – Luna HC...
- Page 17 SPARE PARTS – Luna HC...
-
Page 19: Guarantee
10 GUARANTEE 10.1 TERMS AND ITEMS COVERED 7 years` guarantee on the general structure 2 years` guarantee on the parts No guarantee on glass, seals and lining the combustion chamber 10.2 GUARRANTY CONDITIONS he claim must be submitted to the warranty, otherwise the claim is recognized. The guarranty covers all defects in the fireplace furnace type series „LUNA“...
