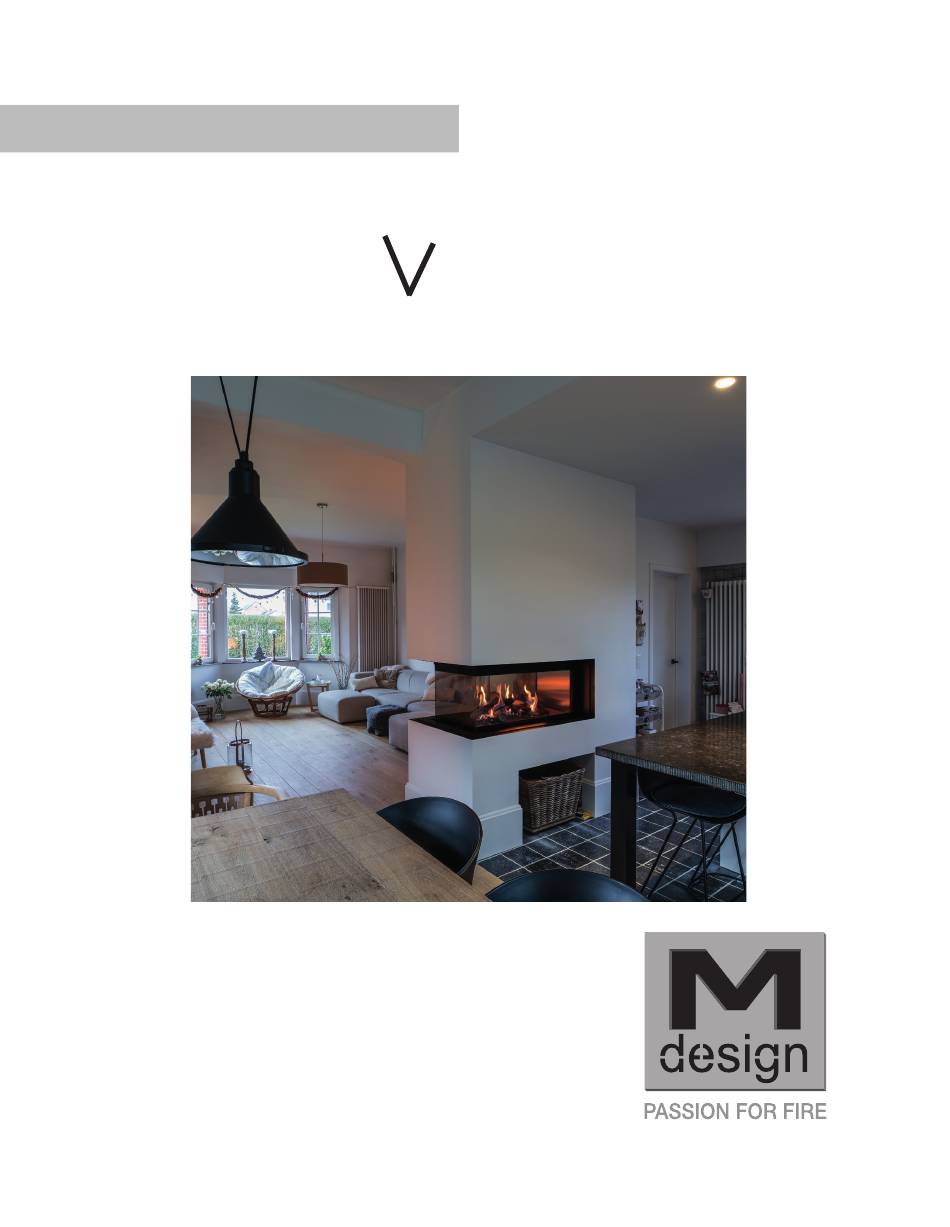

INSTRUCTIONS FOR INSTALLATION AND USE
TRUE
ISION
1000 - 1300 RD
Distributor/Manufacturer
M-Design Benelux BVBA
B-8210 Zedelgem - Belgium
12-2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the True Vision 1000 RD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M Design True Vision 1000 RD

  • Page 1 INSTRUCTIONS FOR INSTALLATION AND USE TRUE ISION 1000 - 1300 RD Distributor/Manufacturer M-Design Benelux BVBA B-8210 Zedelgem - Belgium 12-2019...
  • Page 2 MAINTENANCE. THIS IS ALSO TO MAINTAIN YOUR WARRANTY. IF THIS WILL BE NOT OBSERVED, THE WARRANTY FELL. YOU CAN RELY ON M-DESIGN TO MAKE THIS CHECK FOR YOU, OR YOU CAN DO THIS BY YOURSELF AND FOLLOW THE METHOD BELOW.
  • Page 3: Table Of Contents

    SUMMARY 1. GENERAL REMARKS ......................2. CONNECTION .......................... 3. INSTALLING THE FIREPLACE..................3.1.1 Positioning the fireplace ................... 3.1.2 Nearbox (Gasunit) ....................3.1.3 The Gas connection ....................3.1.4 Electrical connection ................... 3.1.5 Modification natural gaz to propane ............4. INSTALLING THE CHIMNEY ..................10-13 5.
  • Page 4 OPEN EN CLOSE THE DOOR For initial setup, you need to clean the window and clear the fireplace of any dust and grease that is left behind. This is also the only maintenance action that may be performed on the device by the user. Thanks to a patented system, the door can be easily opened at an angle of 45°...
  • Page 5: General Remarks

    1. General remarks This is an appliance using the closed combustion system, designed for the atmosphere and comfort of your living-room. It constitutes an efficient source of heat and gives the impres- sion of a real fire. The balanced flue appliances are based on the principle of natural extraction from the fire- box, which eliminates flue gas outside and brings in air (oxygen) from outside the house which is necessary for combustion of the gas.
  • Page 6: Installing The Fireplace

    3. Installing the fireplace After having checked the appliance, you are ready to install your appliance. This is done as follows 3.1.1 Positioning the appliance Place the appliance on a stable surface using the adjustable feet. Adjust the height of the appliance turning the bolt ( pic 1 ) The appliance must not be placed directly on the floor as you need to allow natural convection.
  • Page 7: Nearbox (Gasunit)

    3.1.2 Nearbox (gasunit) For safety reasons, The gasbattery or “NEARBOX” is fixed with screws on the pallet. Unscrew and remove the gasunit before installation to second burner or side burner NEARBOX FOR 2 BURNERS to main burner Electro magnet ventil 1 or 2 burners gas connection1/2”...
  • Page 8: The Gas Connection

    3.1.3 The Gas connection After the “NEARBOX” has removed from the of the back of the fire, you can place it loosely on the ground in proximity to the opening provided in the wall of mantelpiece. The device is always connected with an approved gas tap 1/2, and preferably with a yellow gasflexible that is reachable at all times.
  • Page 9: Electrical Connection

    3.1.4 Electrical connection These appliances are equipped with a radiographic remote control, making an earthened 220V socket necessary. You should bear in mind that the appliance must be connected to all electrical supplies for the purposes of service. It’s obligatory to connect an earth current. 3.1.5 Modification natural gaz to propane Modification of the fireplace can only be done by the manufacturer or an approved installer.
  • Page 10: Installing The Chimney

    The concentric flue duct should not be reduced to 150/100 for all True Vision. 4.1. ROOF EXIT (C31) Ø 200/130 Appliance C (min) C (max) Restriction (as from 3m) True Vision 1000 RD Ø 60 True Vision 1300 RD Ø 60 Picture 1 Instructions for installation and use TRUE VISION 1000-1300RD Gas...
  • Page 11 4.2. ROOF EXIT VIA EXISTING CHIMNEY (C91S) Ø200 / Ø 130 Appliance C (min) C (max) Restriction (as from 4m) True Vision 1000 RD Ø 60 True Vision 1300 RD Ø 60 This USSAN piece must be sealed at the top of the chemney!
  • Page 12 4.3. WALL EXIT (C11) Ø 200/130 Appliance A (min) B (min) B (max) True Vision 1000 RD Wall Exit True Vision 1300 RD Wall Exit Wall Exit Be carefull every horizontal part does not have a negative in clination in direction of IMPORTANT: the outlet.
  • Page 13 Picture 4: ROOF EXIT WITH BEND Ø 200/130 Appliance A (min) B (max) C (min) (A+B+C )max True Vision 1000 RD True Vision 1300 RD A+C - 1m B-A-81 Ø 200/130 Appliance for each 90° bend subtract 1m horizontally or add 1m vertically...
  • Page 14: Flame Adjustment Settings

    5. Flame adjustment settings Before initial setup, you need to clean the window (from outside and inside) and fireplace of any dust and grease. If INSTALLING –SETTING OF AIR INTAKE GAS18 you do not clean the glass properly, after lightning up the fireplace it can remained still on the glass. After installing Before initial setup, you need to clean the window (from outside and inside) the fireplace correctly on the concentric tube or chimney system, you must make a flame adjustment according to the and fireplace of any dust and grease.
  • Page 15: Convection Current

    We advise you to install the hot air grilles at the same height to have the same heat provided. M-Design has developed hot air and ambient air outlet grilles available from your dealer.
  • Page 16 Instructions for installation and use TRUE VISION 1000-1300RD Gas...
  • Page 17 Woodset True Vision : SET H1 (1000 and 1300RD) WARNING: Do not put anything on the ignition stem and in the rectangular area. In case the fire is not burning in first ignition after arranging of logs set, please open the window on the device and check if the electrode is clear and also the rectangular area around electrode is clear too.
  • Page 18 Opposite side Line in wood 4 Line in wood 2 Opposite side Opposite side Line in wood 6 Opposite side Opposite side Line in wood 8 Instructions for installation and use TRUE VISION 1000-1300RD Gas...
  • Page 19 Opposite side 12 visible only from the opposite side Opposite side Opposite side Wood 14 behind the wood 4 Instructions for installation and use TRUE VISION 1000-1300RD Gas...
  • Page 20 Opposite side In the case you ordered angel`s hair arrange them on the burner first, then imitation coal and continue according wood manual. DO NOT PUT ANYTHING ON THE IGNITION ELECTRODE Instructions for installation and use TRUE VISION 1000-1300RD Gas...
  • Page 21: First-Time Use

    9. First-time user The masonry and plaster surrounding a recently installed appliance holds a great deal of moisture, which must first evaporate before commissioning the appliance. If not, the plaster may crack or split. Ask your installer about the timescale to follow. The first time you use it, only make a moderate-sized fire.
  • Page 22: Guarantee

    The guarantee is only valid for faults caused by construction defects or defects in the parts used to build the appliance. M-Design offers a 12 month guarantee on all electronic parts and a 8 year guarantee on the appliance construction.
  • Page 23: Remote Control

    12. Remote control (direct ingnition) 1. First use (Connect the remote control) Keep pressing the button until 24:00 appears in the top left corner (1). Press several times on until you see “bnd” on the screen (2) Press shortly on You see the temperature on the screen.
  • Page 24 3. Manual control (continuation) To light up the side burners 2, press First you see the wave settings (page 30). Press a second time and you will see a “b0” or “b0” Remark: If after a previous use of the fireplace, you turned it off in “b1” mode, next ignition, the burners 1,2 and 3 will light simultaneously.
  • Page 25 5. ECO WAVE each model is standard delivered with ECO-WAVE ECO-WAVE is an automatic cycle of fluctuating flames. At each start-up of the fire, the system starts in ECO-WAVE mode ! Switch off WAVE Press 1x short on the menu Symbol that indicates Press the arrow up or down.
  • Page 26: Drawings

    13. DRAWINGS Ø200/130 263.3 Ø150 1070 True Vision 1000RD - (example frame Type 2 - 30mm) True Vision 1000RD - (Type 2 - 30mm) ver. 21.5.2019 Ø200/130 1204 1360 1274 Ø150 1294 1370 True Vision 1300RD - (example frame Type 2 - 30mm) True Vision 1300RD -(Type 2 - 30mm) ver.
