3. Installing the fireplace

After having checked the appliance, you are ready to install your appliance. This is
done as follows
3.1.1 Positioning the appliance
Place the appliance on a stable surface using the adjustable feet. Adjust the height of
the appliance turning the bolt ( pic 1 )
The appliance must not be placed directly on the floor as
you need to allow natural convection. The appertures for the
air supply (IN) is situated underneath the appliances

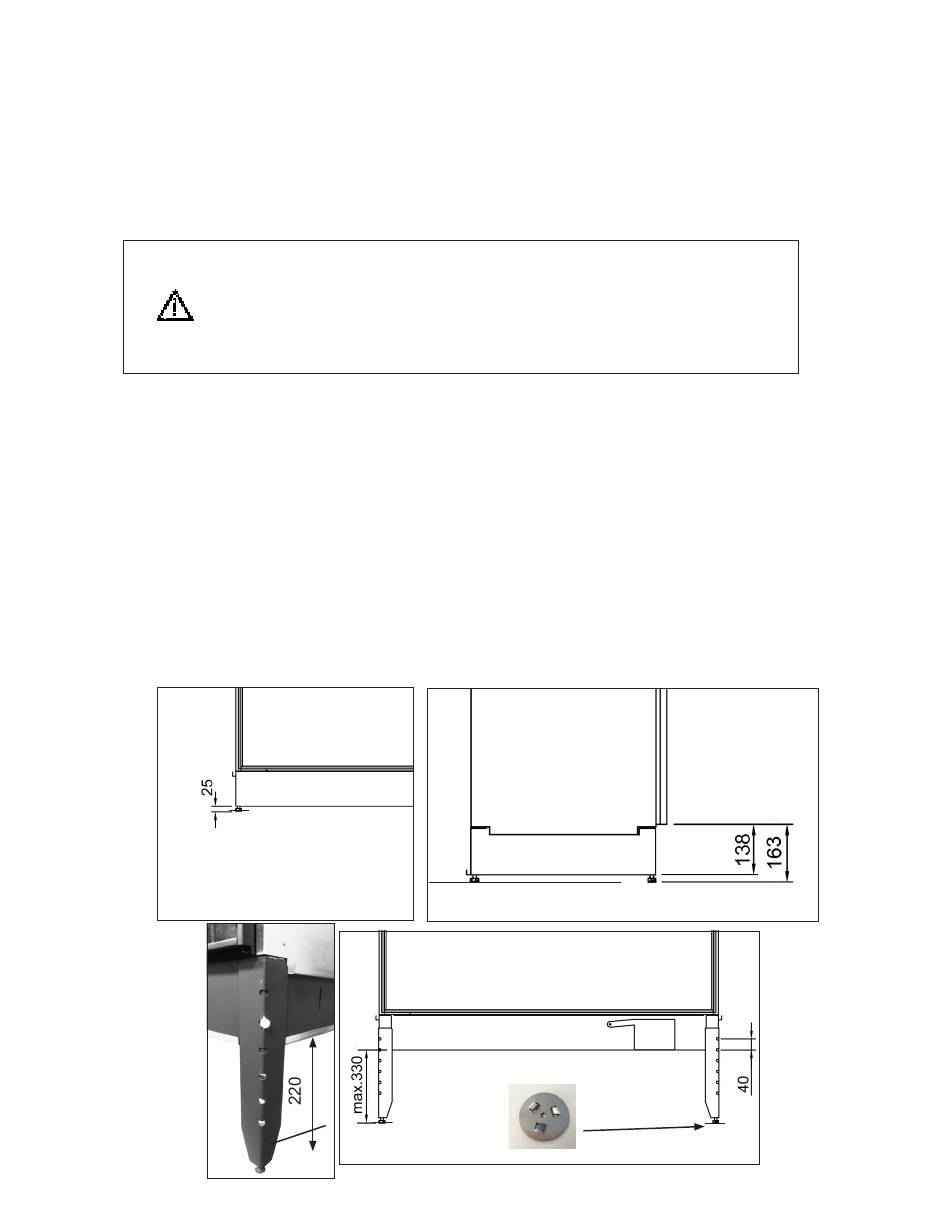

Minimum and Maximum hight of the appliance :
Adjusting the height of the appliance Min Max 25mm to 330mm (floor to under the appliance).
The appliance is standard delivered with a distance from the ground-below the unit = 220 mm.
If you want the fireplace to be installed with a different height, unscrew the nut to remove the feet.
Grind the desired height on foot. The distance between two holes is 40mm. With the fireplace is pro-
vided 4 small saucers. Use to get the stud under your feet.
If you want to install the fireplace at the minimum height of 25mm, measured from the floor to
Below the firebox: remove the foot and unscrew the nut below the foot. Aim the nut in
The tarred hole that is located below the hearth in the corner. Do the same for the four feet.
The minimum distance from the floor to the bottom of the frame is 163 mm.
Fig. A
Unscrew the bolt under the foot and screw
Into the tapped hole beneath the fireplace.
Instructions for installation and use TRUE VISION Gas
Fig. B
The minimum distance from the floor to the bottom of the frame is 163 mm.
6
