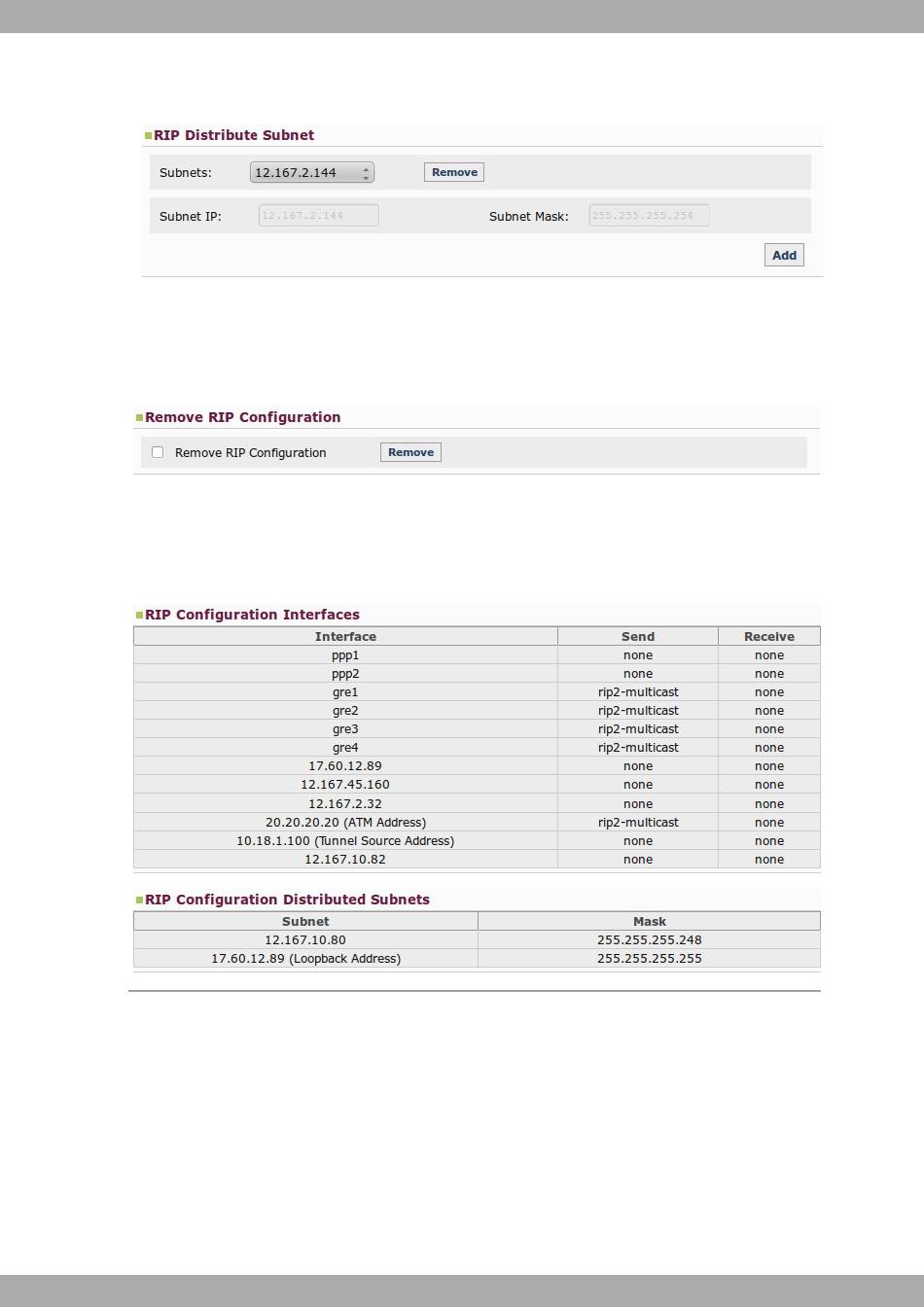

To remove a subnet, select it from the pull-down menu and click on Remove.
Fig. 81:
(d) Remove RIP Configuration
Lets you remove the configuration defined by RIP that the application automatically generates as you specify the
data. To execute this, click on Remove and subsequently confirm this action.
Routes – Remove RIP Configuration.
Fig. 82:
(e) RIP Configuration
To simplify user tasks, two lists are displayed (at the bottom of the page) with the sending and reception para-
meters to be used in the interfaces and subinterfaces advertised by RIP within the tunnels.
Routes –RIP Configuration.
Fig. 83:

2.6.7 PRIME

You may only access this Nets menu option when using the REGESTA-PLC model. It allows the user to configure
parameters relative to the PLC/PRIME interface.
The configurable parameters on this page are as follows:
• PRIME Settings: In this section, the local IP and the local port assigned to the interface can be configured.
• PLC Signal Settings: Enables/disables the PLC signal.
• Topology Info Settings: Allows you to configure parameters relative to topology file management. Said file contains
Regesta-PLC
Routes – RIP Distribute Subnet – Removing a subnet.
2 Web Interface
37
