2 Web Interface
• SIM Card ICC: Integrated Circuit Card ID for the SIM installed in the router.
(d) IP Protocol
Displays the IP dynamically assigned by the carrier.

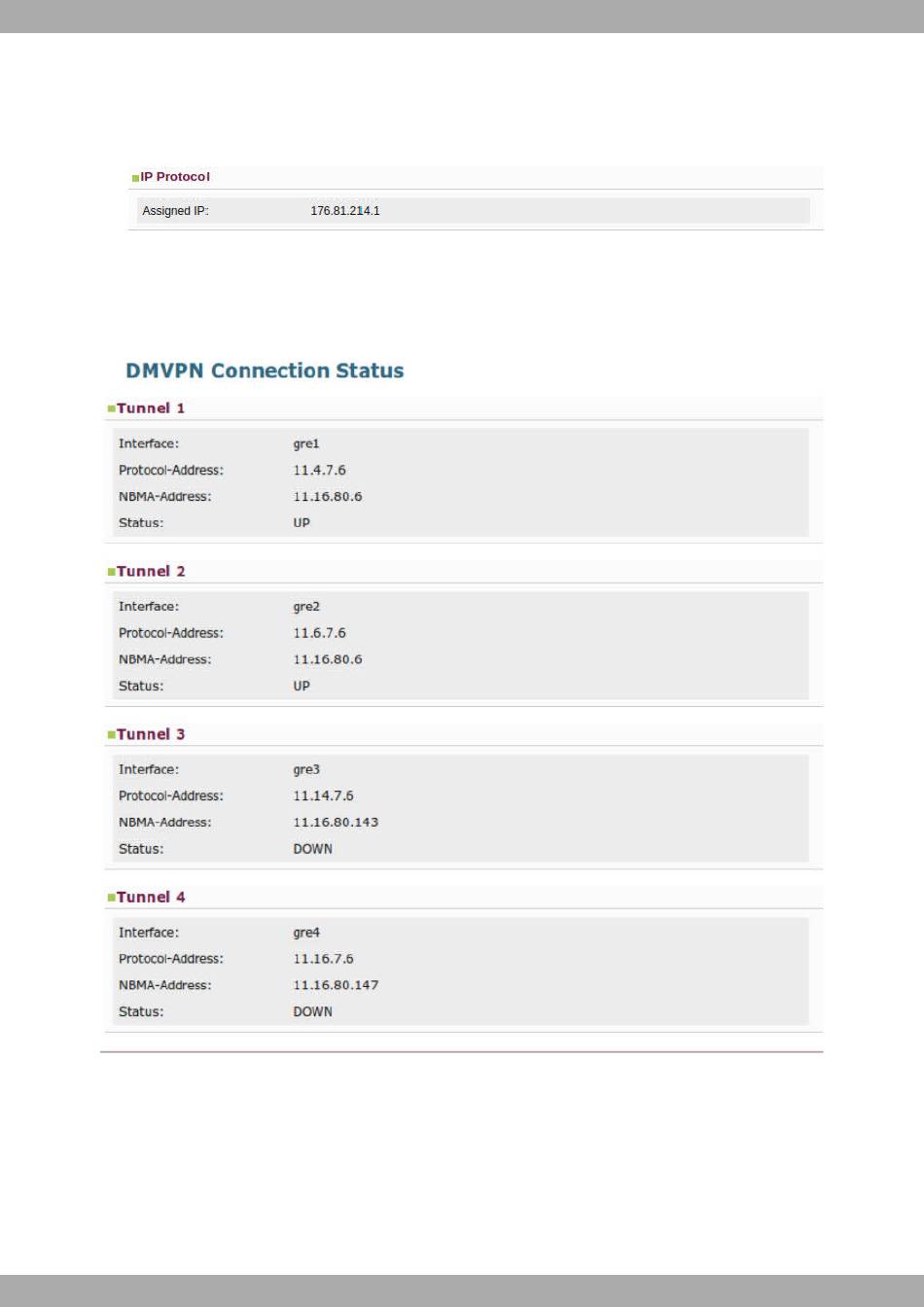

Status WWAN-1 – IP Protocol.
Fig. 21:

2.3.2 DMVPN connections

Allows you to monitor the state of the tunnels established with the central routers.
Status – DMVPN connections.
Fig. 22:
The information displayed for each tunnel is as follows:
• Interface: GRE interface associated to the tunnel.
• Protocol-Address: Remote GRE interface address.
• NBMA-Address: Public tunnel address at the remote end.
• Status:
• If the tunnel isn't configured, the tunnel status is: Not configured.
10
