Nets – Interfaces.

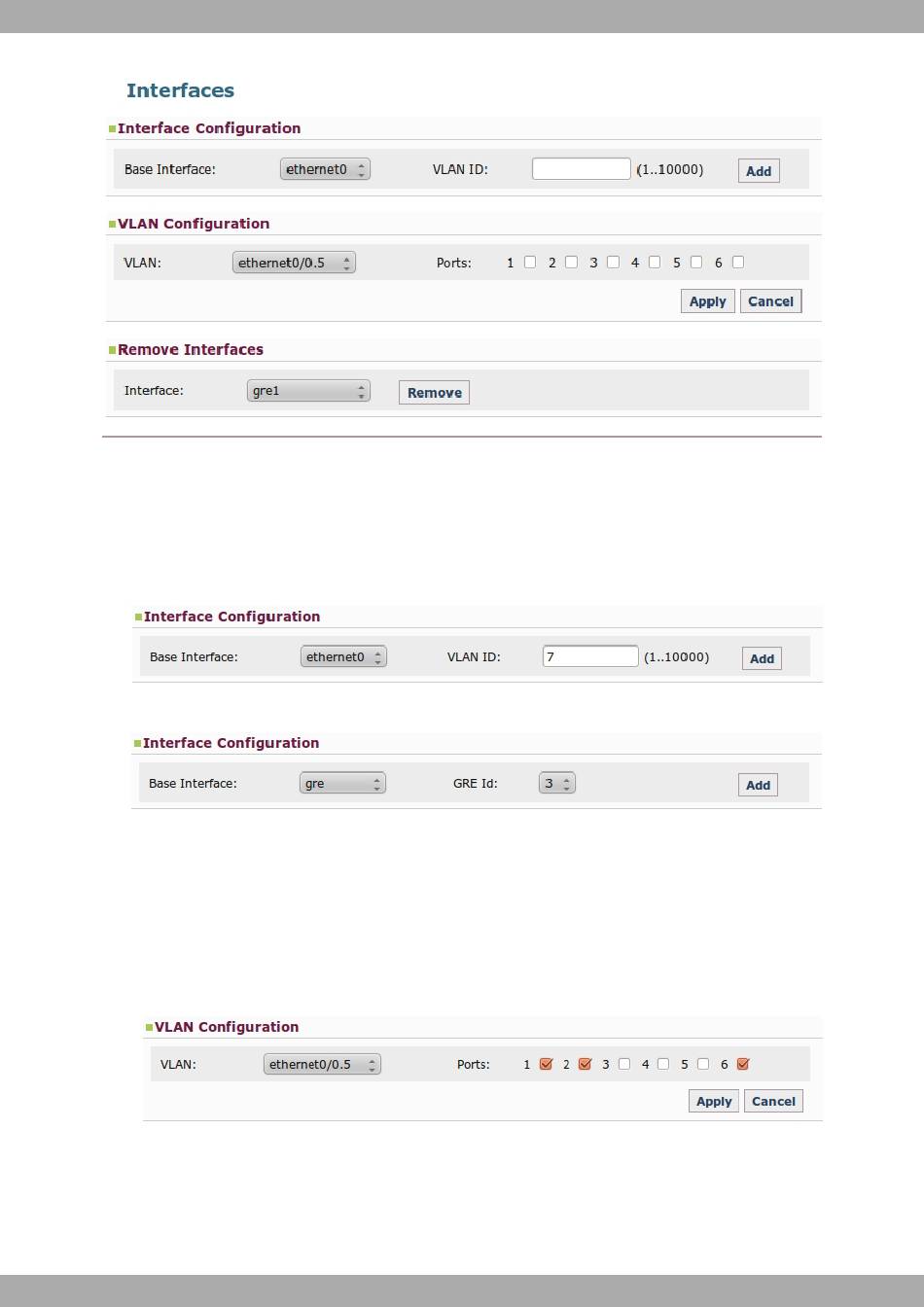

Fig. 49:
The page is divided into the following sections:
(a) Interface configuration
Through the Add button, you can add Ethernet subinterfaces and GRE interfaces by selecting the base interface
from the pull-down menu and specifying an identifier.
Interfaces – Interface Configuration –Ethernet Subinterfaces.
Fig. 50:
Interfaces – Interface Configuration –GRE Tunnels.
Fig. 51:
(b) ) VLAN configuration
Allows you to configure VLANs in the device, indicating the interface and the ports that will be members of each
of them.
• Adding and configuring a VLAN
To do this, select the interface from the pull-down menu, check the ports you wish to associate to the VLAN
and click on Apply. To cancel any modifications made, click on Cancel.
Fig. 52:
• Editing a VLAN configuration
Select the interface from the pull-down menu and, once you have made the appropriate changes by checking/
unchecking the ports, click on Apply.
If you wish to cancel the changes you have made and return to the information the device had on said VLAN,
Regesta-PLC
Interfaces – VLAN configuration – Adding and configuring a VLAN.
