2 Web Interface
Here you can decide whether to install default routes in the device through tunnels when these are active (by se-
lecting the Disable option and checking the checkbox) or explicitly add a default router through the ppp/direct-ip
connections (by selecting the Enable option).

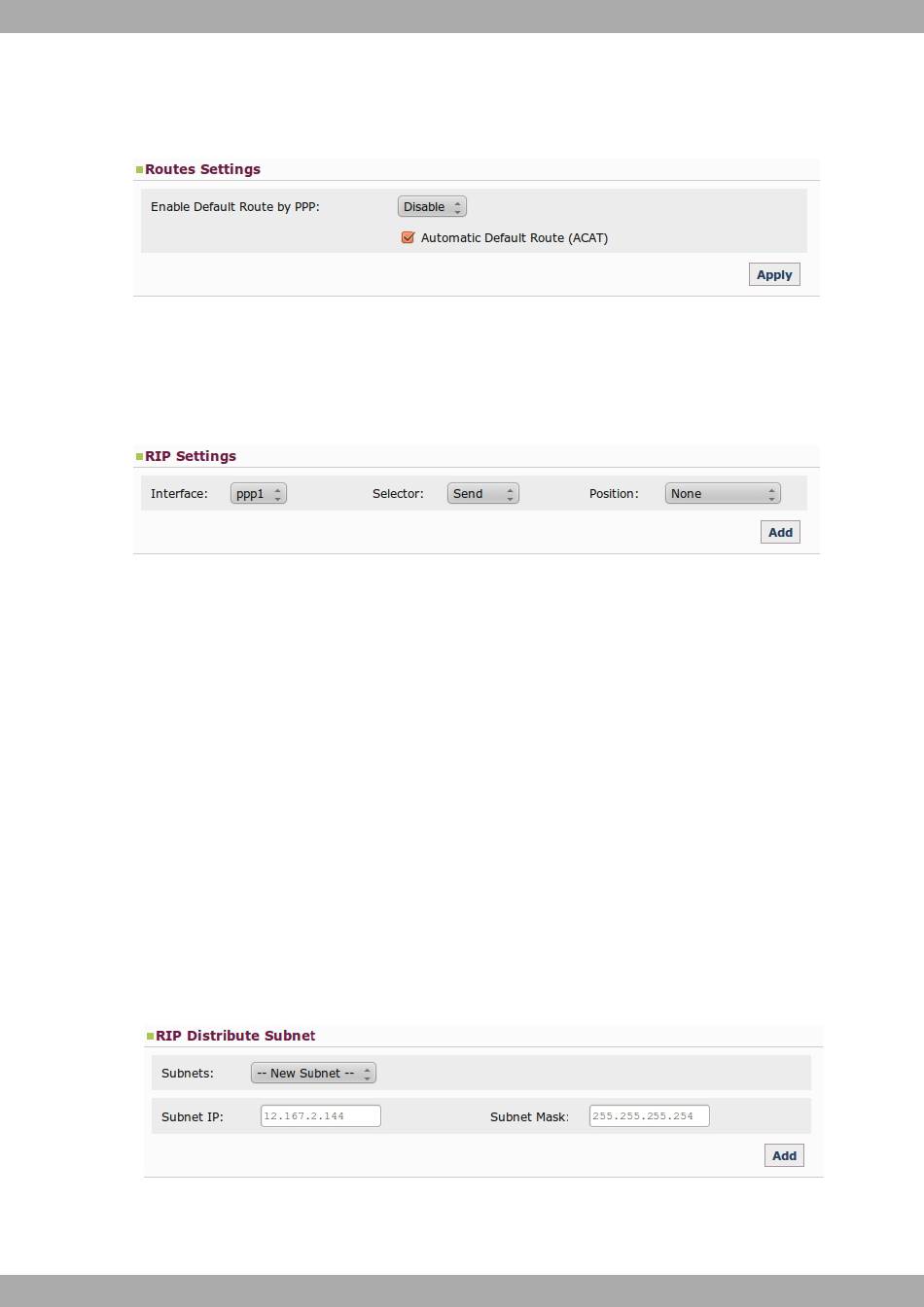

Routes – Routes Settings.
Fig. 78:
(b) RIP Settings
Allows you to define what type of RIP packets can be sent and what type can be received for each PPP/DIR-
ECT-IP interface, or disable the RIP send and/or listen in this interface through the none option. To do this, use
the Apply button each time you configure or modify data for an interface.
Routes – RIP Settings.
Fig. 79:
• Interface: Configured through a pull-down menu where you can select the interface you want to configure.
• Selector: Here you can select the type of compatibility you wish to configure for the selected interface: Send or
Reception.
• Position: Depending on the option selected in the Selector field, we can view one set of options or another:
• Send Selector:
- None: Disables RIP packet sending in the interface.
- RIP-2 Multicast: Version 2 RIP packets are sent using multicast.
• Reception Selector:
- None: Disables RIP listening in the interface.
- RIP-2 Multicast: Only accepts version 2 RIP packets.
(c) RIP Distribute Subnet
The different subnets going to be broadcast by RIP are defined in this section.
• Adding and configuring a subnet
To add a new subnet, select the "New Subnet" option from the pull down menu, indicate an IP address and
subnet mask and click on Add.
Fig. 80:
• Removing a subnet
36
Routes – RIP Distribute Subnet – Adding a subnet.
