EVAL-AD7383FMCZ

EVALUATION BOARD SETUP PROCEDURES

The EVAL-AD7383FMCZ connects to the SDP-H1. The SDP-H1
is the communication link between the PC and the EVAL-
AD7383FMCZ. Figure 2 shows a diagram of the connections
between the EVAL-AD7383FMCZ and the SDP-H1.
Connecting the EVAL-AD7383FMCZ and the SDP-H1 to
a PC
After the ACE software is installed, take the following steps to
set up the EVAL-AD7383FMCZ and the SDP-H1.
1. Ensure that all configuration links are in the appropriate
positions, as detailed in Table 2.
2. Connect the EVAL-AD7383FMCZ to the 160-way connector
on the SDP-H1. The EVAL-AD7383FMCZ does not require
an external power supply adapter.
3. To power up the SDP-H1, insert the 12 V, dc barrel jack
(provided in the SDP-H1 kit) into the barrel connector
labeled +12V_VIN on the SDP-H1.
4. Connect the SDP-H1 to the PC via the USB cable included
in the SDP-H1 kit.
Evaluation Board User Guide
Verifying the Board Connection
After connecting the power and the USB cable from the SDP-H1
to the PC, take the following steps to verify the board connection:
1. After connecting the SDP-H1 to the PC, allow the Found
New Hardware Wizard to run. Choose to automatically
search for the drivers for the SDP-H1 if prompted by the
operating system.
2. Navigate to the Device Manager window on the PC
(see Figure 11).
3. A dialog box may open asking for permission to allow the
program to make changes to the computer. Click Yes.
4. The Computer Management window opens. From the list
labeled System Tools, click Device Manager. If the SDP-H1
driver is installed and the board is properly connected to
the PC, Analog Devices SDP-H1 is shown in the ADI
Development Tools list in the Device Manager window,
as shown in Figure 11.
Disconnecting the EVAL-AD7383FMCZ
Disconnect power from the SDP-H1, or press the reset tact switch
located alongside the mini USB port on the SDP-H1, before
removing the EVAL-AD7383FMCZ from the SDP-H1.
Rev. A | Page 9 of 16

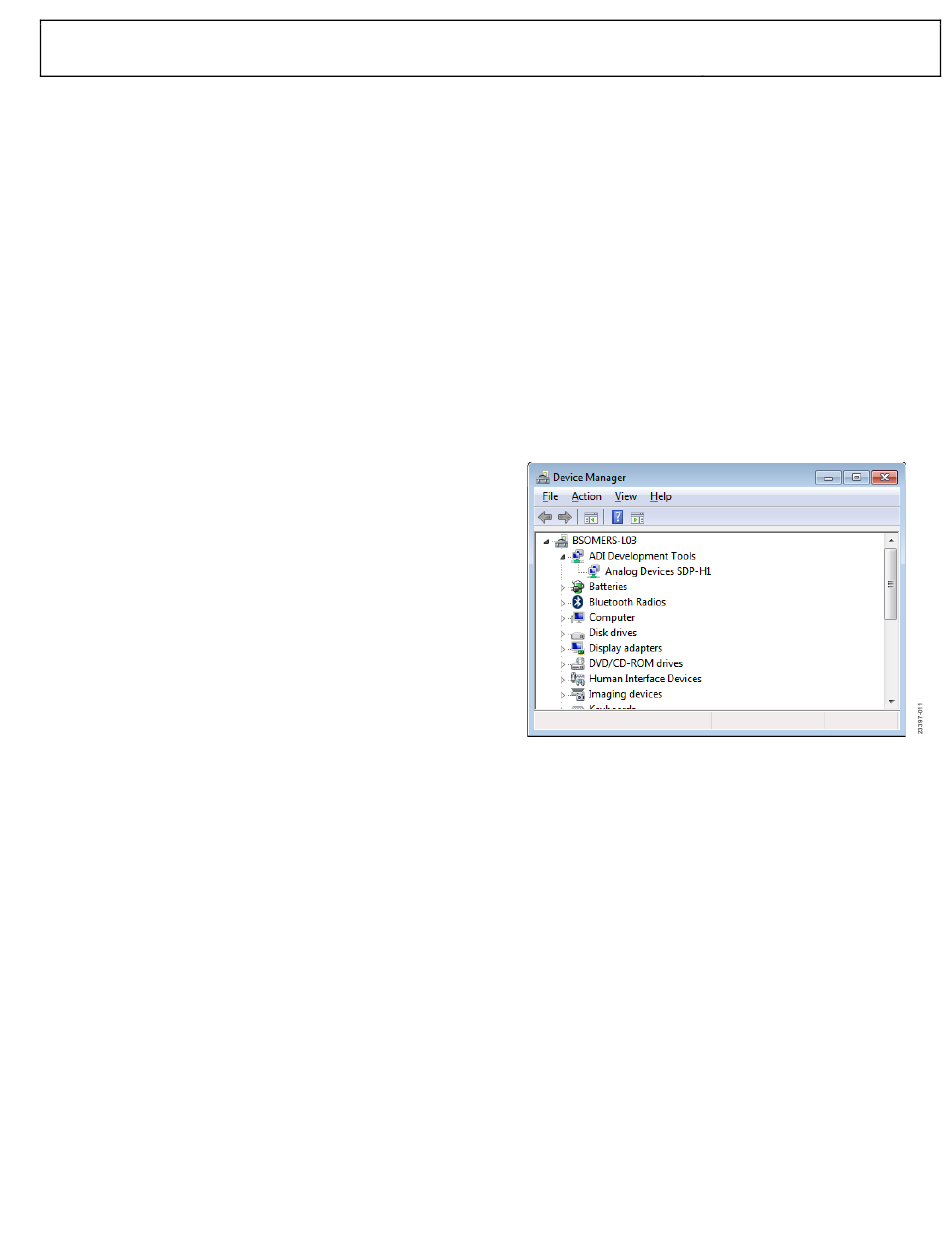

Figure 11. Device Manager Window
UG-1770
