EVAL-AD7383FMCZ

EVALUATION BOARD QUICK START GUIDE

The EVAL-AD7383FMCZ is powered by the
External power supplies can be applied to the EVAL-
AD7383FMCZ. See Table 1 for a description of the optional
external power supply connectors and Table 2 for the required
link option function descriptions. Take the following steps to
evaluate the AD7383:
1. Download and install the
on the ACE software page or the AD7383 product page.
Details of the ACE installation are available on the internal
label of the EVAL-AD7383FMCZ box. When installing the
ACE software, ensure that the SDP-H1 is disconnected
from the USB port of the PC. The PC may need to be
restarted after the installation.
Evaluation Board User Guide
SDP-H1 by default.
ACE software, which is available

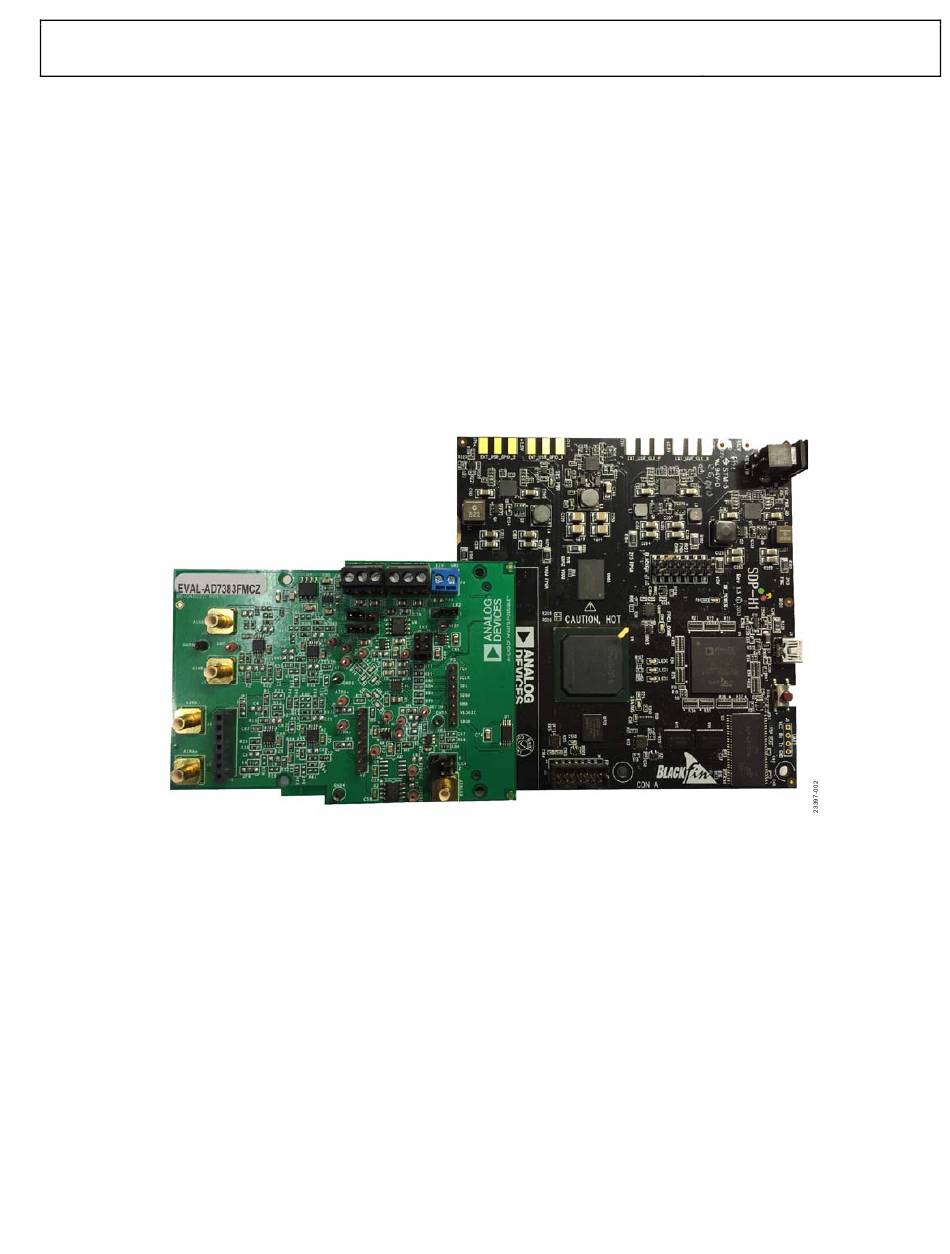

Figure 2. EVAL-AD7383FMCZ (Left) Connected to the SDP-H1 (Right)
2. Ensure that the link options are configured as detailed in
Table 2.
3. Connect the SDP-H1 to the EVAL-AD7383FMCZ, as
shown in Figure 2.
4. Connect the SDP-H1 to the PC via the USB cable. If
prompted by the operating system, choose to automatically
search for the SDP-H1 drivers.
5. Launch the ACE software from the following location:
C:\Program Files (x86)\Analog Devices\ACE.
6. Connect an analog signal to Channel A or Channel B of
the AD7383 via J2 for Channel A and J4 for Channel B.
The A
A− and A
IN
VCM on the EVAL-AD7383FMCZ.
Rev. A | Page 3 of 16
UG-1770
B− inputs are directly connected to
IN
