i726-411
www.powercommander.com
Unplug the TPS
7

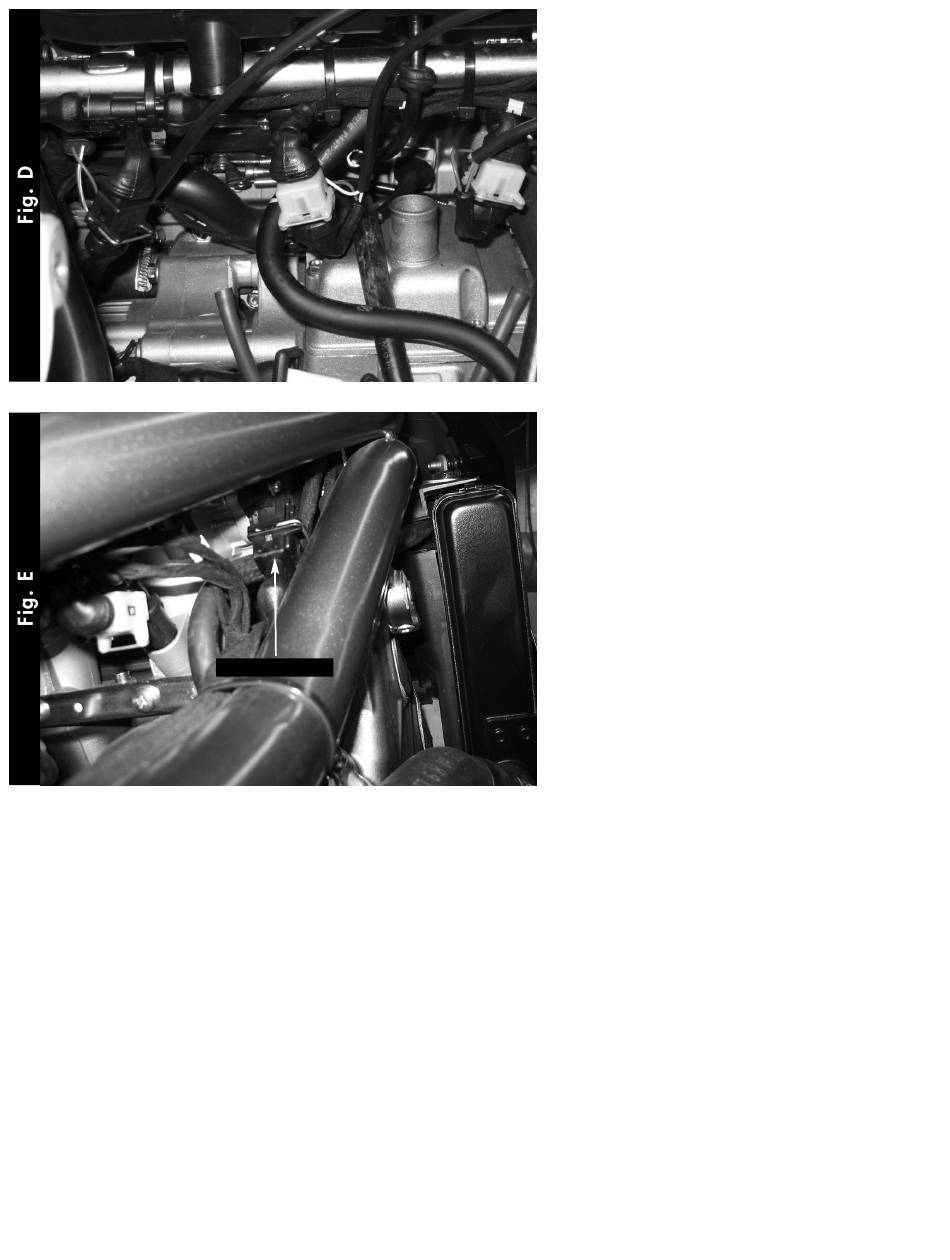

Plug the PCIII connectors in-line of
the stock wiring harness and injectors
(Fig. D).
ORANGE - right cylinder
YELLOW - middle cylinder
GREEN - left cylinder
8
Locate the Throttle Position Sensor
connector.
This is located on the right
hand side of the throttle bodies
(Fig. E).
9
Unplug this connector and plug the
connectors from the PCIII in-line of
the stock wiring harness and TPS.
10
Install the fuel tank.
the PCIII harness does not get
pinched by the fuel tank.
11
Install the seats.
2005 Benelli TNT 1130 - PCIII USB - 3
Make sure that
