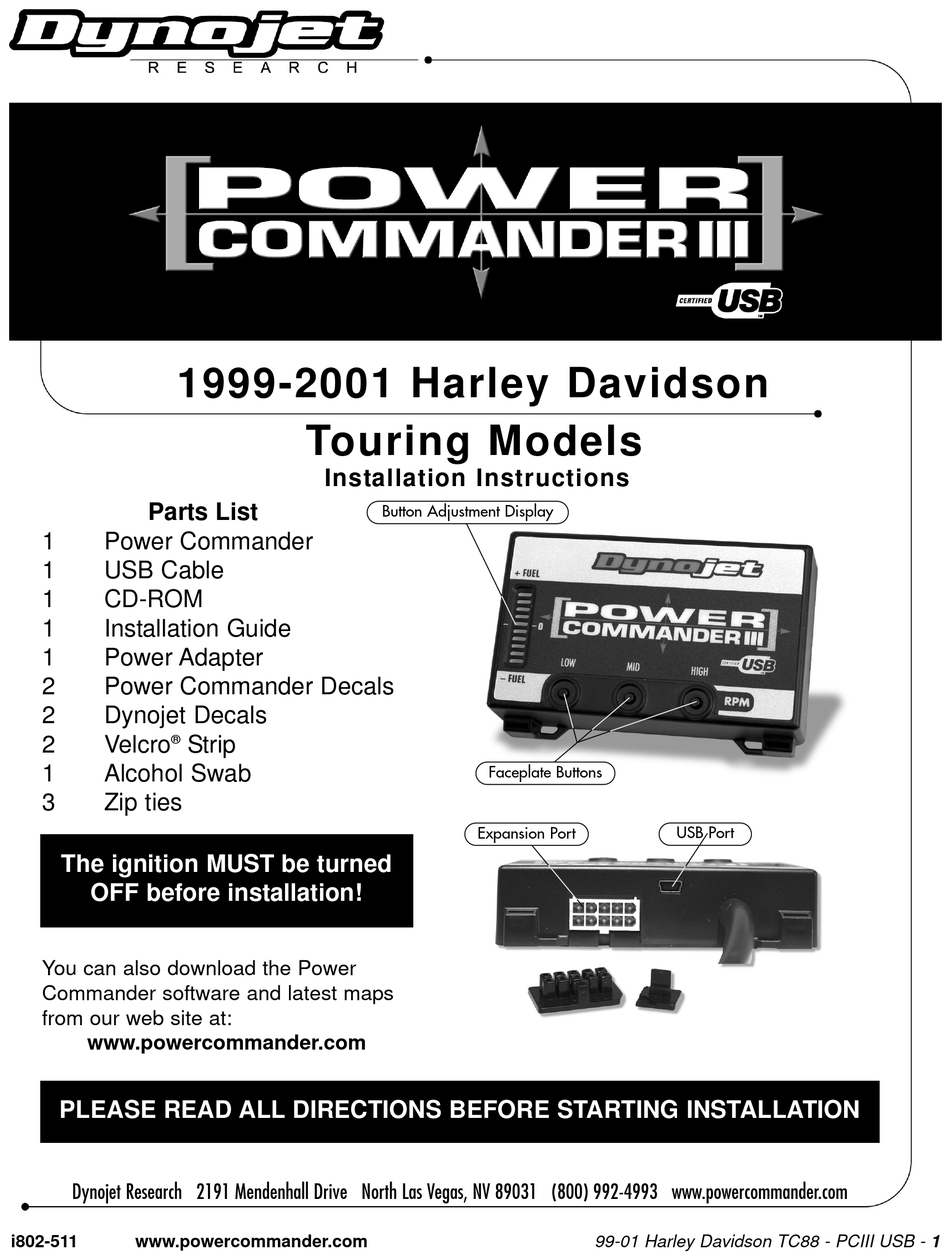

1999-2001 Harley Davidson
Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
3
Zip ties
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i802-511
www.powercommander.com
Touring Models
Installation Instructions

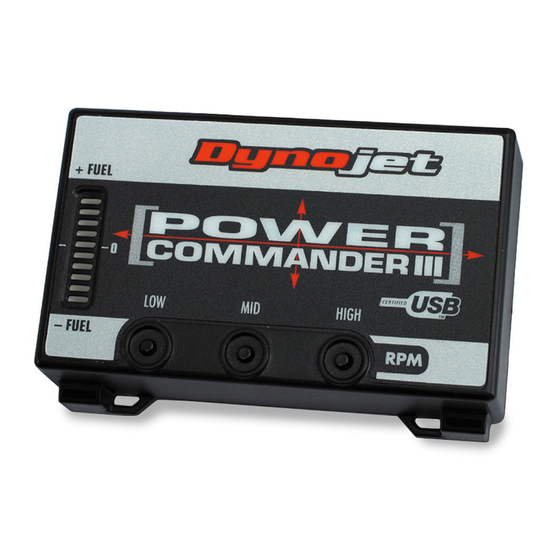

Button Adjustment Display
Expansion Port
Faceplate Buttons
99-01 Harley Davidson TC88 - PCIII USB - 1
USB Port
Advertisement
Table of Contents
Related Manuals for Dynojet POWER COMMANDER III
Summary of Contents for Dynojet POWER COMMANDER III
- Page 1 Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i802-511 www.powercommander.com 99-01 Harley Davidson TC88 - PCIII USB - 1...
- Page 2 There are two methods of installation of the Power Commander. The Standard install takes 30 minutes to accomplish, but the fit is better. The Quick install takes about 15 minutes. While this method is easier, it may allow wiring to be visible with certain aftermarket seat assemblies. STANDARD INSTALLATION Remove the seat.
- Page 3 Attach PC III module to battery box. First, clean the PCIII and battery box with the supplied alcohol wipe. Using the supplied velcro attach PCIII to the battery box. Also secure the unit with Attach PCIII here the included zip ties. If your bike has cruise control, attach the unit to the face of the cruise control module (Fig.
- Page 4 QUICK INSTALLATION Remove the seat Remove right hand side cover. Loosen the two 7/16 nuts that retain the ECU (Fig. A) Disconnect the large connector from the ECU. Remove the rubber dust shield and install on the male connector of the PCIII. Make sure the rubber boot is properly installed (Fig.
