Ground wire from PCIII
i726-411
www.powercommander.com
Ground wire from PCIII
Unplug the stock harness
1

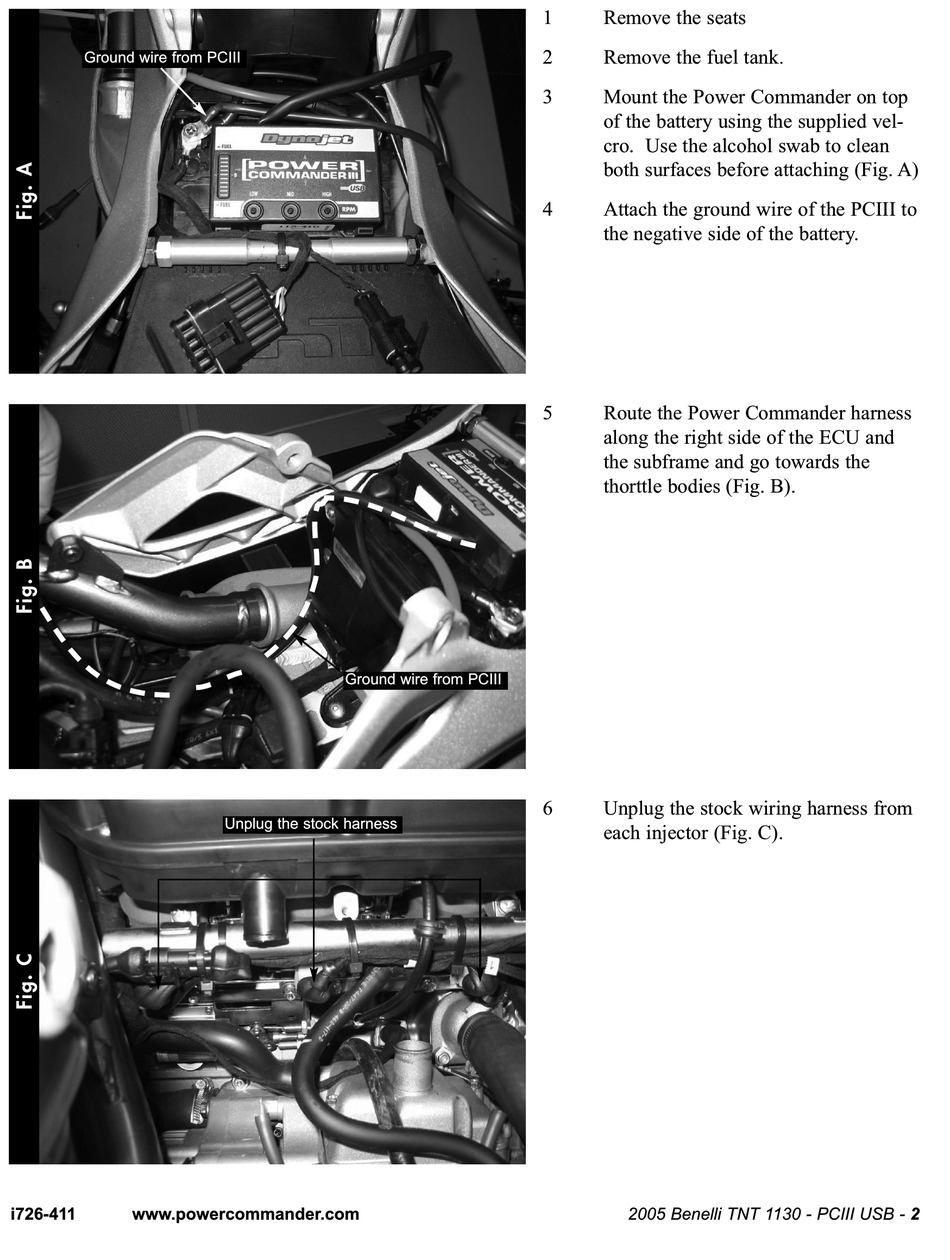

Remove the seats
2
Remove the fuel tank.
3
Mount the Power Commander on top
of the battery using the supplied vel-
cro.
Use the alcohol swab to clean
both surfaces before attaching (Fig. A)
4
Attach the ground wire of the PCIII to
the negative side of the battery.
5
Route the Power Commander harness
along the right side of the ECU and
the subframe and go towards the
thorttle bodies (Fig. B).
6
Unplug the stock wiring harness from
each injector (Fig. C).
2005 Benelli TNT 1130 - PCIII USB - 2
