Parts List
1

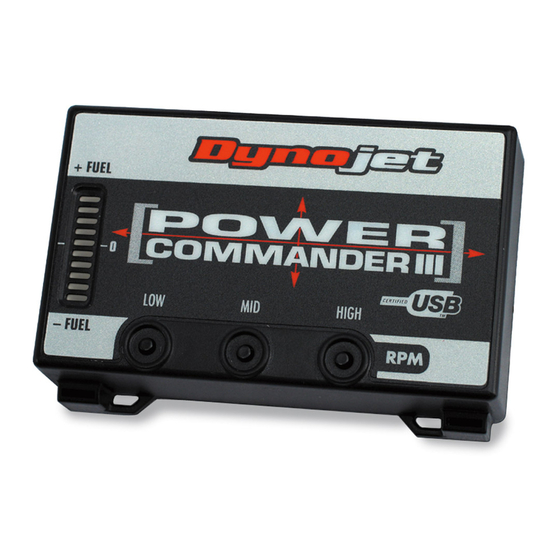

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
1
Wire Tap
2
Power Commander Decals
2
Dynojet Decals
Velcro ® Strip
2
1
Alcohol Swab
4
Zip ties
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLeaSe reaD aLL DIrecTIOnS beFOre STarTIng InSTaLLaTIOn
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i729-411
www.powercommander.com

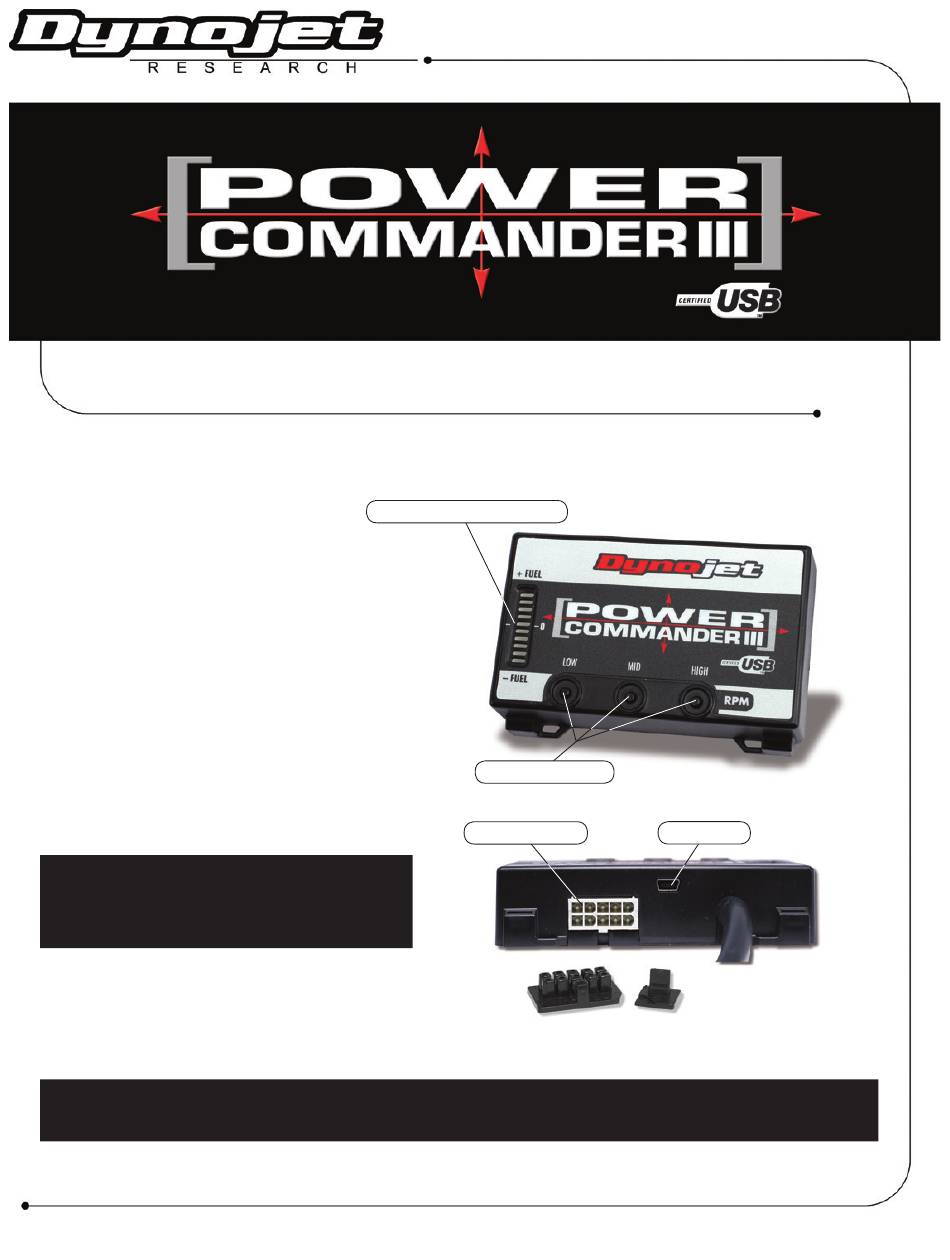

2007 Ducati 1098
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2007 Ducati 1098 - PCIII USB - 1
Advertisement
Table of Contents
Related Manuals for Dynojet POWER COMMANDER III
Summary of Contents for Dynojet POWER COMMANDER III
- Page 1 Velcro ® Strip Faceplate Buttons Alcohol Swab Zip ties Expansion Port USB Port The ignition MUST be turned OFF before installation! You can also download the Power Commander software and latest maps from our web site at: www.powercommander.com PLeaSe reaD aLL DIrecTIOnS beFOre STarTIng InSTaLLaTIOn Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com i729-411 www.powercommander.com 2007 Ducati 1098 - PCIII USB - 1...
- Page 2 Remove the seat and solo cover. Remove the cover around the fuel tank (Fig. A). Remove the fuel tank Remove the inner fairing cover on the right hand side (Fig. B). Lay the PCIII in the tail section temporarily. PCIII harness Route the PCIII harness through the hole in the tail section (Fig. C). Route the PCIII along the right hand side of the subframe . Secure the PCIII harness to the subframe using 2 of the large supplied zip ties (Fig. D) Zip ties i729-411 www.powercommander.com 2007 Ducati 1098 - PCIII USB - 2...
- Page 3 Unplug the stock wiring harness from the rear injector (Fig. E) This injector is located on top of the air box. To remove the connector you must first remove the spring clip. This is best done with a pick or small screwdriver. Unplug Plug the YELLOW colored wires from the Zip tie PCIII in-line of the stock wiring harness and rear injector (Fig. F). Make sure to reinstall the spring clip on the stock connector. Use 1 of the small supplied zip ties to secure this connection to the fuel line. Make this connection as compact as possible. PCIII connector Stock connector Unplug the stock wiring harness from the front injector (Fig G). This connection is very difficult to access. It is best to get to thru the front of the bike directly above the radiator. Figure G was taken from the front of the bike inside the right hand fairing and above the radiator. Stock connector i729-411 www.powercommander.com 2007 Ducati 1098 - PCIII USB - 3...
- Page 4 Plug the ORANGE colored wires from the PCIII in-line of the front injector and stock wiring harness (Fig. H). Remove the right hand fairing. PCIII connector Stock connector Route the PCIII harness along the right hand side frame down tube. Use the existing wraps to hold the PCIII harness in PCIII harness place (Fig. J). Locate the Throttle Position Sensor on the right hand side of the throttle bodies. Connect the GREY wire from the PCIII to the Posi-Tap. Grey wire/Posi-Tap Ground wire from PCIII Attach the ground wire from the PCIII to the right hand engine cover bolt shown in Figure K Reinstall the right hand fairing i729-411 www.powercommander.com 2007 Ducati 1098 - PCIII USB - 4...
- Page 5 Install the PCIII in the tail section using the supplied velcro. Make sure to clean both surfaces with the alcohol swab before attaching. Reinstall all bodywork and fuel tank. When lowering the fuel tank make sure it does not interfere with the connection of the rear injector. Note: Unless you have the Kit ECU you will not be able to make fuel changes below 20% throttle and below 5500rpm with this PCIII. i729-411 www.powercommander.com 2007 Ducati 1098 - PCIII USB - 5...
