User Guide
DC3252A

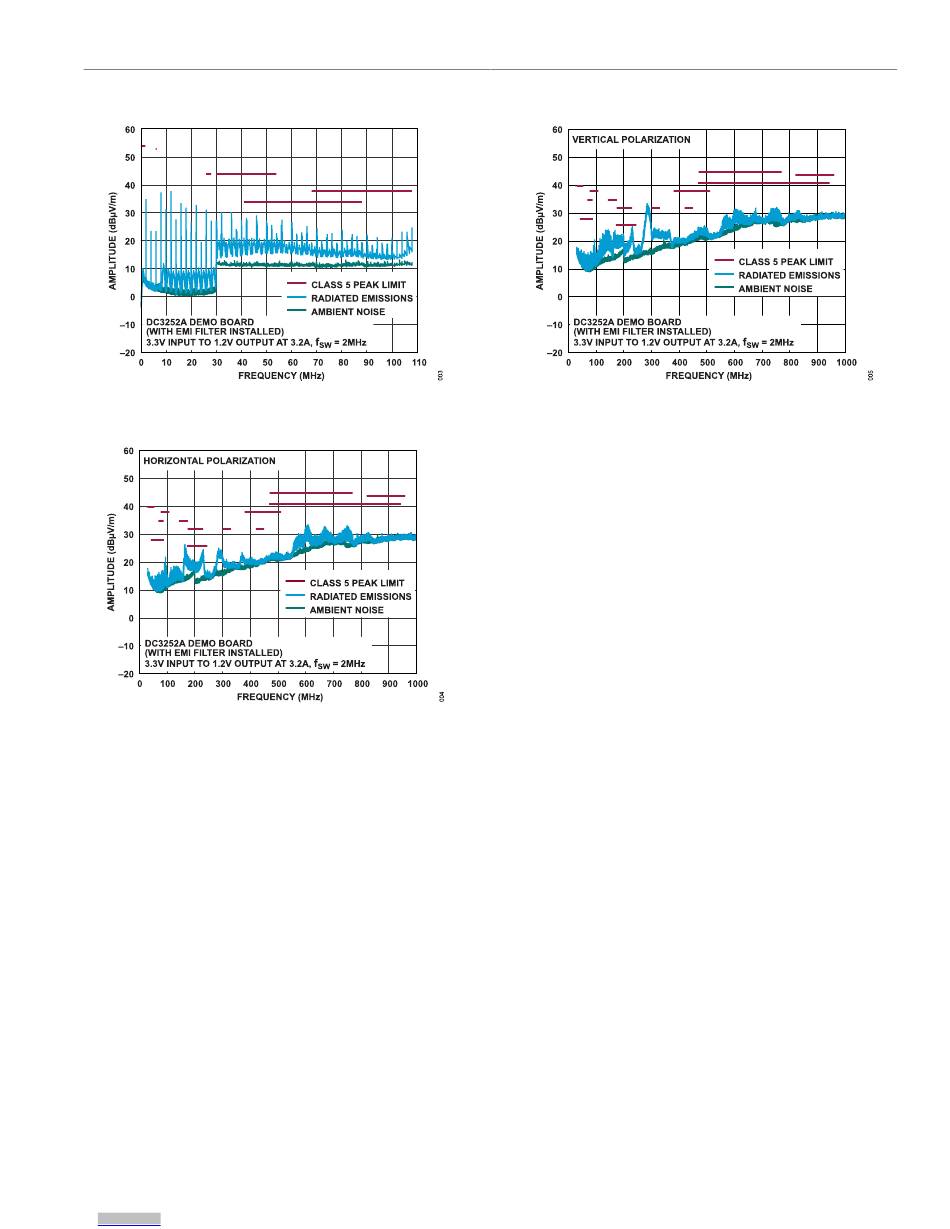

EMI TEST RESULTS
Figure 10. Conducted EMI Performance (CISPR25 Conducted Emission Test
Figure 12. Radiated EMI Performance (CISPR25 Radiated Emission Test with
with Class 5 Peak Limits)
Class 5 Peak Limits, Vertical)
Figure 11. Radiated EMI Performance (CISPR25 Radiated Emission Test with
Class 5 Peak Limits, Horizontal)
analog.com
Rev. 0 | 9 of 13
