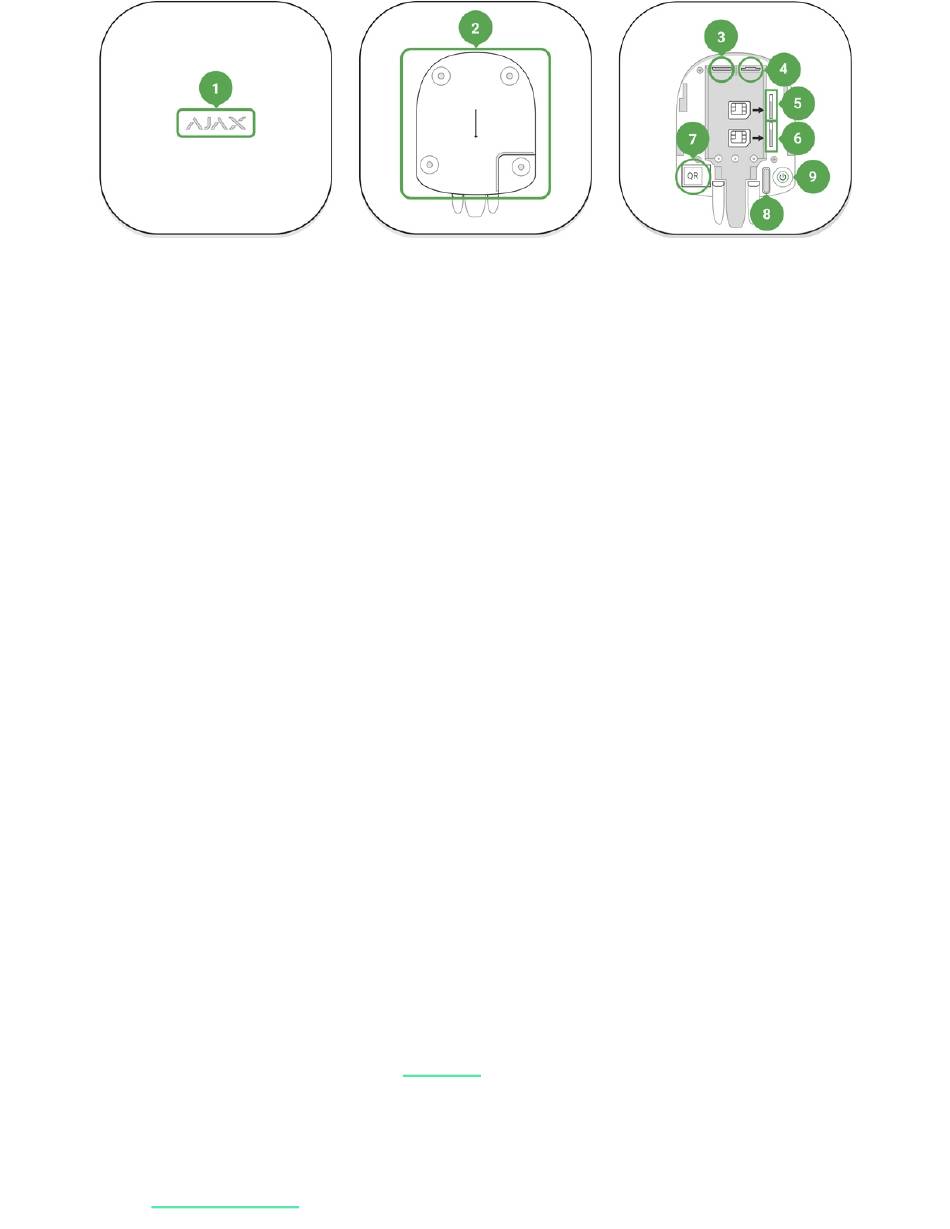

1. LED logo
2. SmartBracket attachment panel (perforated part is required for actuating the
tamper in case of any attempt to dismantle the hub)
3. Socket for the power supply cable
4. Socket for the Ethernet cable
5. Slot for the micro SIM
6. Slot for the micro SIM
7. QR Code
8. Tamper button
9. Power button

Operational Principles

The hub collects information regarding the operation of the connected devices in
an encrypted form, analyzes the data and, in the case of an alarm, informs the
system owner of the danger in less than a second and communicates the alarm
directly to the central monitoring station of the security company.
In order to communicate with the devices, monitor their operation, and respond
quickly to threats, Hub 2 uses the
transmission, Hub 2 uses Wings: a high-speed radio protocol based on the Jeweller
technology. Wings also uses a dedicated antenna to improve channel reliability.
All Ajax devices
Jeweller radio technology. For visual data
