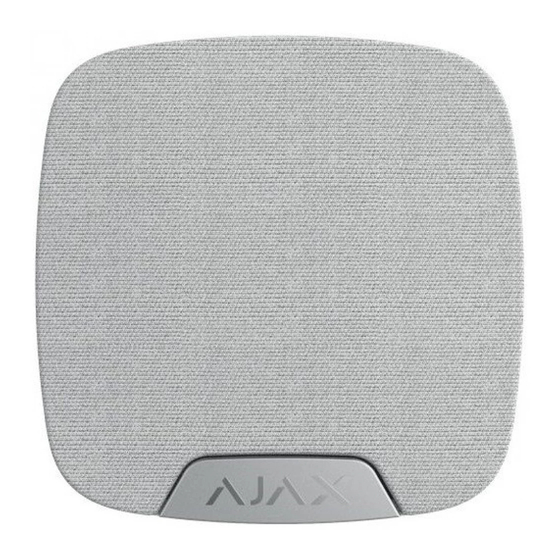

HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed
only for indoor use. It can be quickly installed and set up, is furnished with a LED
(plus allows connecting an external LED), and can operate up to 5 years from a
battery.
HomeSiren operates within the Ajax security system, by connecting via the
protected
meters if there are no obstacles.
The siren is set up via a
smartphones. The user is notified of all events through push notifications, SMS
messages and calls (if activated).
Operates only with
modules is not provided.
The Ajax security system is self-sustaining, but the user can connect it to the
Updated May 28, 2021
protocol to the
. Connection to
. The communication range is up to 2,000
for iOS and Android-based
and
integration

Advertisement

loading
Need help?

Need help?

Do you have a question about the HomeSiren and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX HomeSiren

Summary of Contents for AJAX HomeSiren

  • Page 1 Updated May 28, 2021 HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only for indoor use. It can be quickly installed and set up, is furnished with a LED (plus allows connecting an external LED), and can operate up to 5 years from a battery.
  • Page 2 1. Light indicator 2. Siren buzzer covered with a fabric 3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to tear off the siren from the surface) 4. QR code 5. Tamper button 6.
  • Page 3 The HomeSiren siren operates only with the Ajax security system. Up to 10 sirens may be connected to the Ajax hub 1. Following the hub instruction recommendations, install the on your smartphone. Create an account, add the hub to the application, and create at least one room.
  • Page 4 Request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax hub failed, the siren will switch off after 6 seconds. You may repeat the connection attempt then. To retry the connection, you do not need to turn off the device.
  • Page 5 Temperature processor and changes gradually Jeweller Signal Strength Signal strength between the hub and the siren Connection status between the hub and the Connection siren Battery level of the device. Two states available: ОК Battery discharged Battery Charge The tamper mode of the device, which reacts to the detachment of or damage to the body Alarm Volume Volume level in case of alarm...
  • Page 6 Setting Value First field Device name, can be edited Selecting the virtual room to which the device is Room assigned Selecting the security group to which the siren is assigned. When assigned to a group, the siren and its indication are related to alarms and Alarms in Group Mode events of this group.
  • Page 7 Unpair Device its settings Through the Ajax app, you can configure which detector alarms can activate the siren. This can help to avoid situations when the security system notifies of LeaksProtect detector alarm or any other device alarm. The parameter is adjusted in the detector or device settings: 1.
  • Page 8 5. Enable the Alert with a siren if the hub or detector lid is open option. The siren can respond to pressing the panic button in Ajax apps. Note that the panic button can be pressed even if the system is disarmed! For the siren to respond to pressing the panic button: 1.
  • Page 9 1. The system registers the alarm. 2. The siren plays an alarm (duration and volume depend on settings). 3. The siren LED and external LED (if connected) blinks twice (about once every 3 seconds) until the system is disarmed. Thanks to this feature, system users and security companies patrols can understand that the alarm has occurred.
  • Page 10 Battery low activated), the tamper is actuated or alarm is given The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when...
  • Page 11 Location of the HomeSiren determines its remoteness from the hub and presence of any obstacles between the devices, hindering the radio signal and sound transmission: walls, inserted floors, large-size objects located within the room. The device developed only for indoor use.
  • Page 12 LED. If the light indicator of the siren is not actuated after installation in SmartBracket, check the tamper mode in the Ajax Security System application and then the fixing tightness of the device on the panel. In case of any attempt to dismount the siren, you will receive the notification.
  • Page 13 Black terminal wire — “+” contact. Outlet power supply: 3 V, 10 mA. Check the operational capability of the HomeSiren on a regular basis. Clean the siren body from dust, spider web and other contaminations as they appear.
  • Page 14 Radio signal modulation GFSK Radio signal range Up to 2,000 m (any obstacles absent) Battery supply 2 × CR123A, 3 V Battery life Up to 5 years Socket for connecting Yes (power supply 3 V, 10 mA) an external light indicator Body protection level IP50 Installation method...
  • Page 15 5. Installation Kit 6. Quick Start Guide Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service —...
