MAIN CONTROL PANEL SWITCH FUNCTIONS

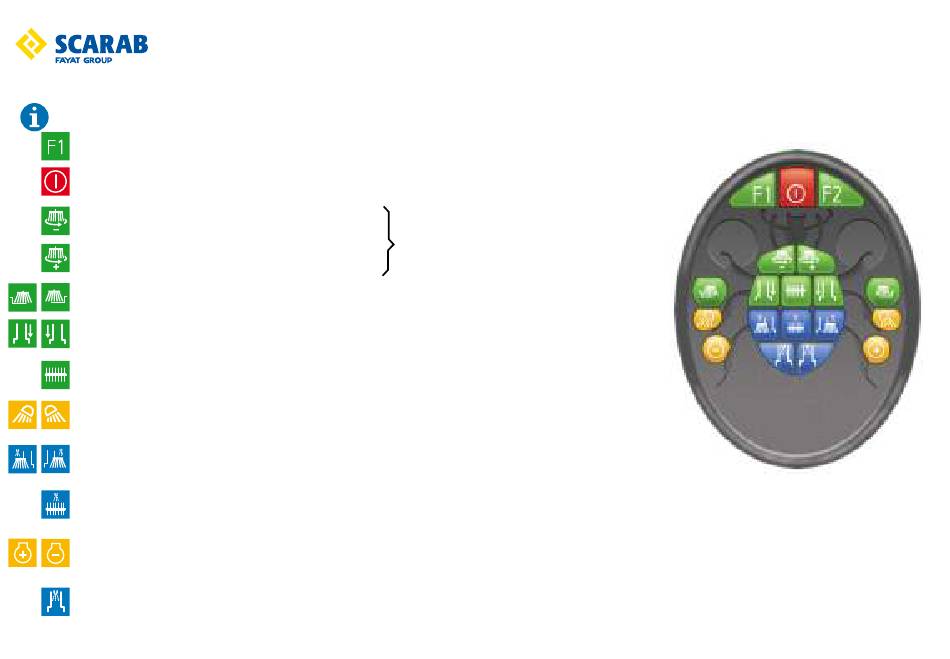

Switch functions are described from Left to Right and Top to Bottom.
F1 / F2 - Press to activate special options.
SYSTEM-START - Press to start/stop the system and engage/disengage hydrostatic drive.
BRUSH SPEED (-) - Press to decrease brush speed.
BRUSH SPEED (+) - Press to increase brush speed.
LEFT/RIGHT SIDE BRUSH - Press to start the side-brush.
LEFT/RIGHT SUCTION NOZZLE RAISE/LOWER - Press to lower the suction nozzle.
WIDESWEEP BRUSH - Press to start the widesweep brush.
LEFT/RIGHT WORK-LIGHT - Press to turn ON/OFF.
LEFT/RIGHT SIDE BRUSH/NOZZLE WATER - Press to start the side-brush and suction nozzle
dust-suppression.
WIDESWEEP WATER - Press to start the dust-suppression spray for the widesweep brush.
INCREASE/REDUCE ENGINE SPEED - Press and hold down to reduce/increase the speed of the vehicles engine. A single press of the either
switch will adjust engine speed by 50 RPM. Current engine speed is displayed along the top of the LCD monitor.
LEFT/RIGHT SUCTION NOZZLE - ADDITIONAL WATER
Part No. SCAZ038022 2.4.1
Operating Instructions - Unidrive Truckmounted Road Sweeper
Brush remains at last chosen speed until
reset
* Press to start the additional water jets for the suction nozzle.
