Using the overhead wander boom

Vehicle in hydrostatic drive. Drive control lever in neutral. Handbrake On.
Multi-function lever OFF.

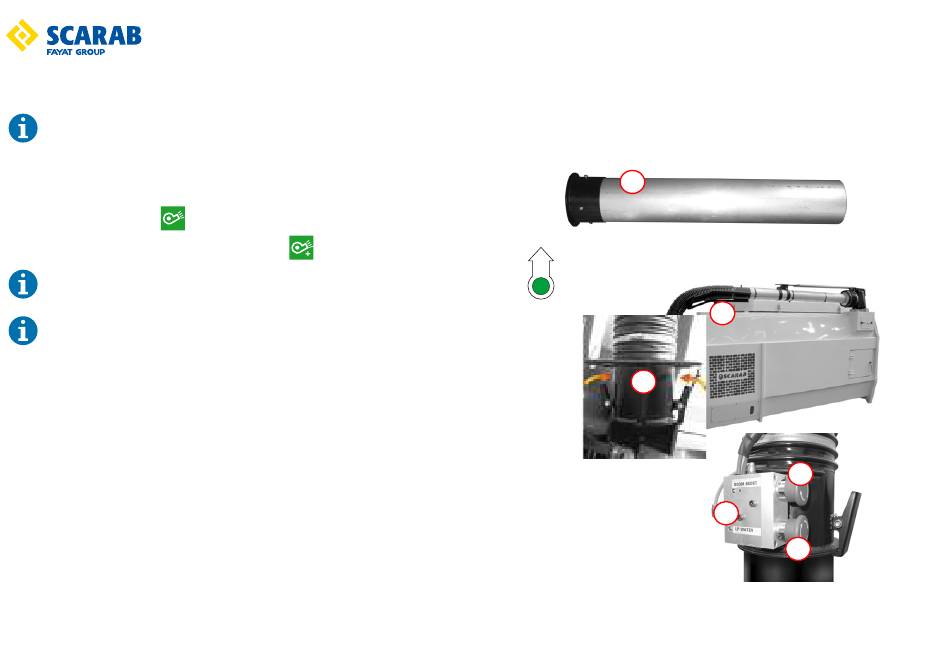

1. Unlatch the hose assembly (1) from its stowage and attach suction tube (2)
(extra tubes can be added to give greater length).
2
2. Unhook the overhead boom from its stowed position (3).
3. Suction Fan ON.
4. Increased suction, use the fan boost.
OFF
If water suppression is required place the multi function lever
ON
in the ON position and use button (4) on the hose assembly control block (5).
3
An extra fan speed for the overhead boom can be selected, use button (6) on the
hose assembly control block (5)
1
6
5
4
