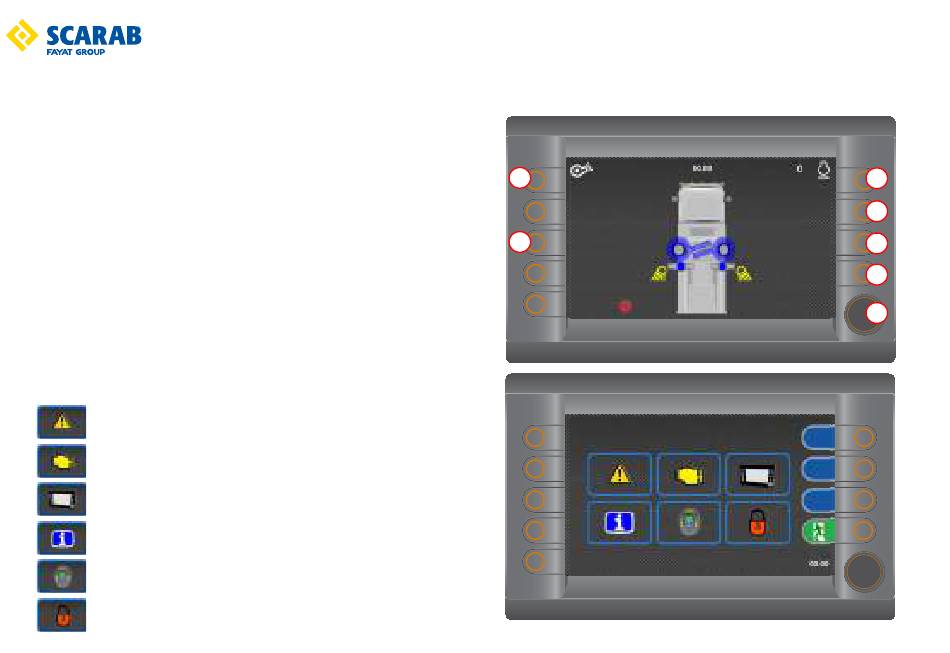

TO ACCESS THE OPTION SCREEN MODE FROM THE
START-UP SCREEN PRESS BUTTON
Button function
1. Display: Press to change background colours (black/white).
2. Menu: Press to access option screen mode (illustrated).
3. Hours: Press to view hours logged.
4. Return: Press to return to previous screen.
5. Encoder: Turn to highlight required option, press to enter. Used in
all screen modes. Press to display side tabs from the sweeping mode
screen.
6. Camera: Press to enable in forward drive. (rear view only)
7. Hopper raise/lower and rear door open/close warning buzzer:
Press to disable.
Screen menu description
Driver's fault codes
EDC
Screen settings
Information
Button check
CAN menu (Password protected)
Part No. SCAZ038022 2.4.1
