Operating Instructions - Unidrive Truckmounted Road Sweeper
Manual greasing & lubrication

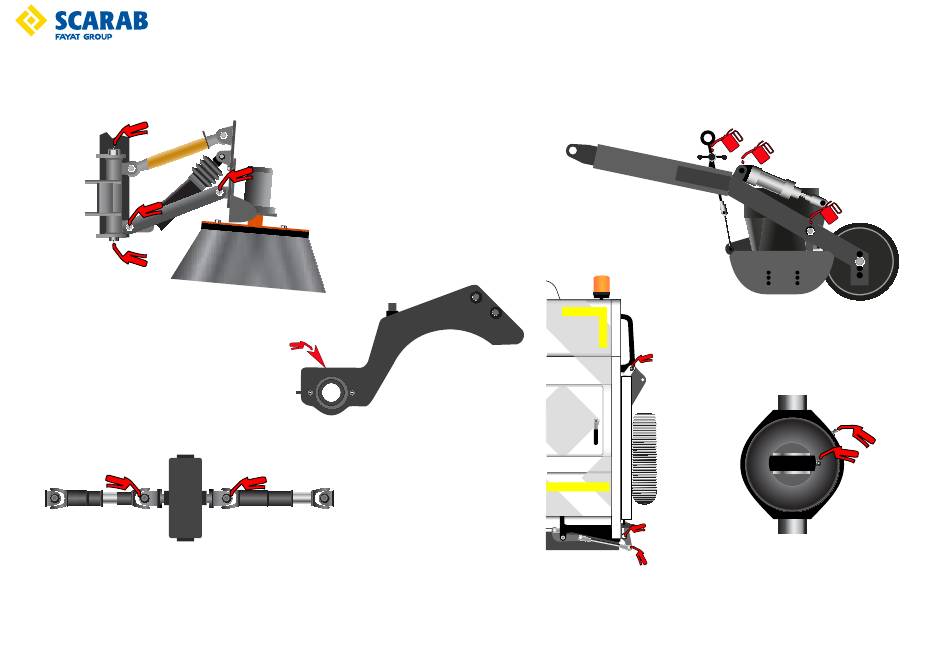

Carry out manual greasing in accordance with the appropriate schedule (Page 24) and by referring to the accompanying diagrams shown here.
SUCTION NOZZLE ASSEMBLY
SIDE BRUSH ASSEMBLIES
BOTH SIDES
Door Hinge x3
WIDESWEEP
HOPPER RAM
(Viewed from Below)
Locking Clamp x3
REDUCTION GEARBOX PROPSHAFTS
HOPPER BODY & REAR DOOR
Pivot Rod x2
Part No. SCAZ038022 2.4.1
