High pressure water can be hazardous, always wear goggles or suitable eye/face protection.
Exercise extreme care when using the lance, do not direct the jet at other people or electrical connections.
Failure to comply can result in serious injury.
The high pressure water is used on the following options:-
• Front sparybar (1).
• Suction tube boost spraybar (2).
• Suction fan wash assist* (3).
• Hand lance and retractable hose* (4).
To operate any of the above options the vehicle must be in
hydrostatic drive, with sweep mode ON
water switch on the auxiliary control panel
appropriate valve(s) for the function(s) required.
Fan wash assist is only an aid to fan cleaning. It is recommended
that this option is used immediately following a days sweeping.
The fan should always be cleaned in accordance with the
recommended operators routine maintenance.
Due to the possibility of excess water and loose material being
ejected via the hopper hood when the suction fan is restarted,
this procedure should only be carried out at an appropriate
location.
*These options always fitted on the drivers side.
Part No. SCAZ038022 2.4.1

USING THE HIGH-PRESSURE WATER SYSTEM (OPTION)

. Press the high pressure
and open the
Operating Instructions - Unidrive Truckmounted Road Sweeper

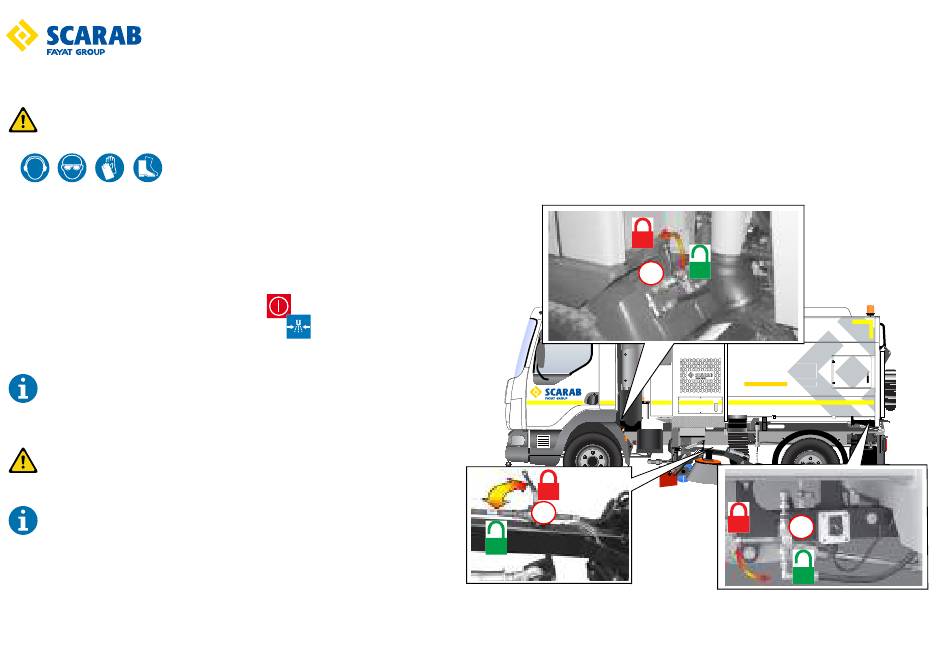

VALVES FOR THE VARIOUS OPTIONS
2
20
1
MERLIN LIN
UNI-DRIVE I-DRIVE
3
E&OE
