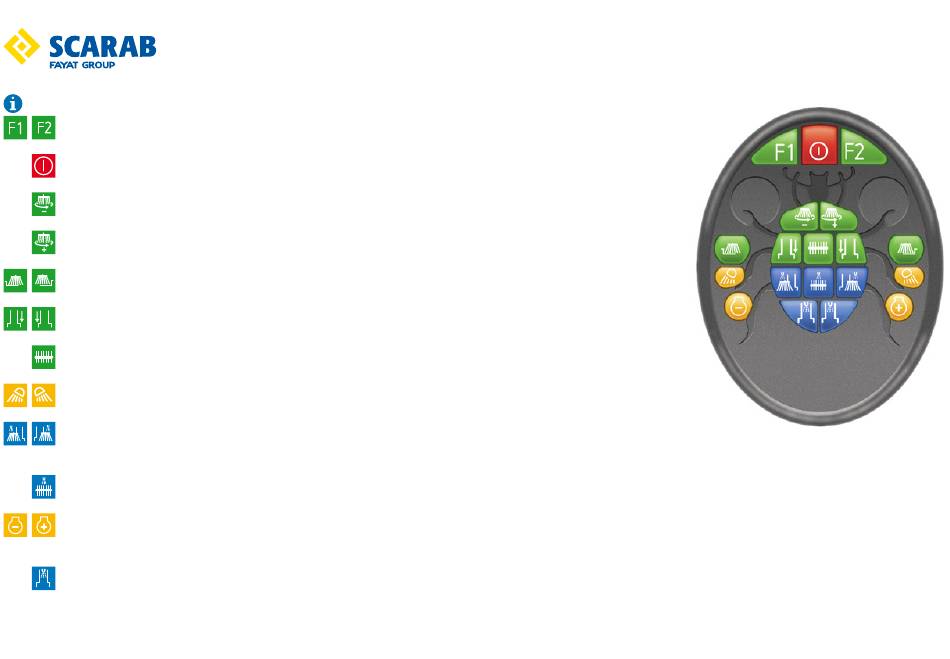

Main control panel switch functions

Switch functions are described from Left to Right and Top to Bottom.
F1 / F2 - Press to activate special options.
System Start - Press to start/stop the system and engage/disengage hydrostatic drive.
Brush Speed (-) - Press to decrease brush speed. Brush speed remains set until reset.
Brush Speed (+) - Press to increase brush speed, Brush speed remains set until reset
Left/Right Side Brush - Press to start the side-brush.
Left/Right Suction Nozzle Raise/Lower - Press to lower the suction nozzle.
Central Brush (Wide sweep) - Press to start the central brush.
Left/Right Work Light - Press to turn ON/OFF.
Left/Right Side Brush and Suction Nozzle Water - Press to start the side-brush and suction nozzle
dust-suppression.
Central Brush (Wide sweep) Water - Press to start the dust-suppression spray for the central brush.
Increase/Decrease Engine Speed - Press and hold down to reduce/increase the speed of the vehicles engine. A single press of the either switch will
adjust engine speed by 50 RPM. Current engine speed is displayed along the top of the LCD monitor.
Left/Right Suction Nozzle - Additional Water (Option) - Press to start the additional water jets for the suction nozzle.
