Scarab MERLIN Operating And Basic Maintenance Instructions page 39

0

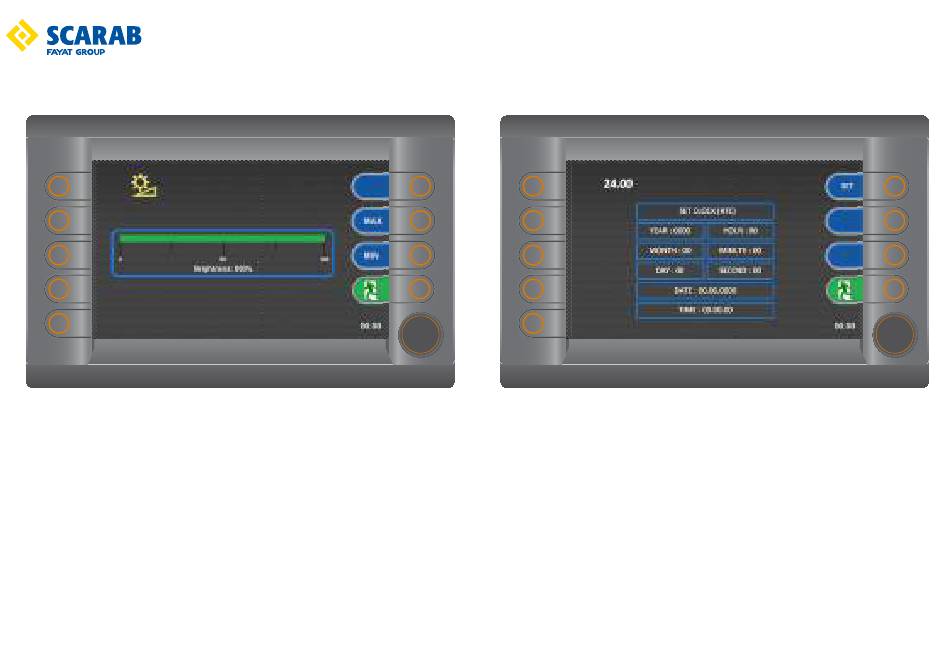

Brightness: 000%
Screen brightness setting
Rotate the encoder to adjust the screen brightness (2% increments).
Pressing the MIN button adjusts the brightness to 10%.
Pressing the MAX button adjusts the brightness to 100%.
Part No. SCAZ038022 2.4.1
MAX
MIN
50 100
00.00
Operating Instructions - Unidrive Truckmounted Road Sweeper
24.00
24.00
Time/date setting
Rotate the encoder to the desired panel and press. Rotate to the
correct, Year, Day, Hour, etc and press the set button.
Repeat above step as required.
34
SET CLOCK (RTC)
YEAR : 0000 HOUR : 00
MONTH : 00 MINUTE : 00
DAY : 00 SECOND : 00
DATE : 00.00.0000
TIME : 00.00.00
SET
00.00
E&OE
