Scarab M65T Operating Instructions

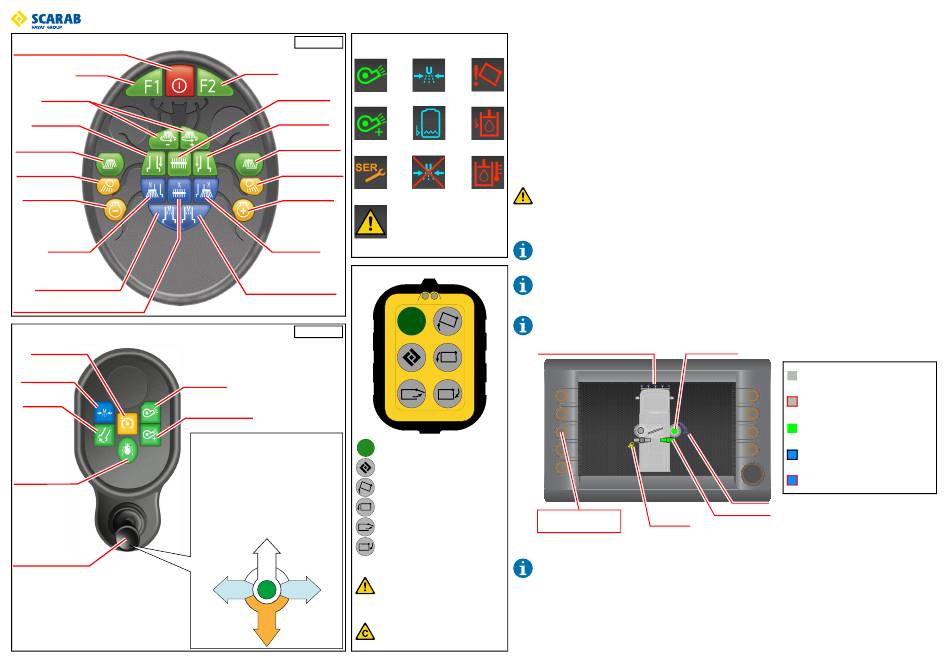

Scarab M65T - Abbreviated Operating Instructions
Main control panel
Auxiliary engine
Start/stop and sweep mode
Option*
Brush speed
Left suction
Left side brush
Left work light
Engine speed
Left water
Left additional water*
Central brush (wide sweep) water
Auxiliary control panel
Not applicable
High pressure
water pump*
Suction fan
Nozzle tilt
Suction fan boost
Favourite setting
Multi-function lever
Major on-screen information
* = Option
Option*
Central brush
(wide sweep)
Suction fan ON
Right suction
Suction fan
Right side brush
boost
Right work light
Service
Engine speed
reminder
Active fault
Right water
present
Right additional water*
* = Option
Multi-function lever
On right hand drive vehicles
Move the switch to the right to swing the
side brush(es) OUT.
Move the switch to the left to swing the side
brush(es) IN.
Opposite for left hand drive.
Nozzle tilt function
Move the switch back to momentarily tilt
the suction nozzle or to close it from LOCKED
OPEN.
OFF
Press and hold down the Safety Interlock and
the appropriate control switch.
For safety reasons only operate the
Side Side
Remote Control controls from outside
ON
brush brush
the vehicle, from a vantage point that
affords a good view of the sweeper and
its surroundings.
Nozzle
tilt
To enter sweep mode
Vehicle engine running. Air tanks full.
and warning symbols
1. Press the Start Switch on the main panel to start the auxiliary engine and enter sweep mode.
2. Preselect the required sweeping combination. As each item is selected the corresponding symbol
on the LCD monitor will change as illustrated below. Start the suction fan.
3. Engage a suitable gear ratio and release the clutch to commence sweeping.
H-P water pump Hopper not
When reversing
down
1. When reverse gear is selected, all sweeping gear will automatically stop and retract.
2. When reverse is deselected, all active sweeping equipment will redeploy.
Leaving sweep mode
Water tank low Hydraulic oil 1. Move the multi-function switch forward to the OFF position to stop and retract all active
low
sweeping equipment.
2. Switch off the suction fan.
Rear door and hopper remote controls
The hopper safety prop must always be deployed when working beneath a raised hopper. Rear
H-P water pump Hydraulic oil
door safety prop must be deployed and when working beneath open rear door.
no water temperature
Discharging the payload (tipping)
1. Simultaneously press the safety interlock and door open switch, until the door is fully open.
2. Simultaneously press the safety interlock and hopper raise switch, until the hopper is fully raised.
Before lowering the hopper, ensure that the area below it is clear. Stow the hopper prop.
3. Simultaneously press the safety interlock and hopper down switch, until the hopper is fully down.
Remote control
Before closing the rear door, ensure all personnel are clear of the immediate area and that the
door seal and seal-mating face are clean. Stow the rear door prop.
4. Simultaneously press the safety interlock and door close switch, until the door is fully closed.
Before stopping the auxiliary engine, allow it to idle for at least 2 minutes to allow the turbo-
charger to cool down.
Central brush (wide sweep) water active
= Safety interlock
= Option
= Raise hopper
= Lower hopper
Hopper raise/lower and rear
door open/close warning
= Open rear door
buzzer press to disable
= Close rear door
This document is designed as a quick reference guide, to allow the operator to drive the vehicle in
Sweep Mode and operate the basic controls. It does not constitute the full operating instructions.
Before closing the rear door, ensure
adequate clearance and seal
cleanliness.
Side brush active
Water active
Nozzle tilt indicator
Suction nozzle active
Work light on
Please refer to reverse for health and safety advice
Main equipment colour codes
Equipment not selected
Equipment pre-selected
Equipment operating (active)
Water pre-selected
Equipment and water pre-selected
