Scarab MERLIN Operating And Basic Maintenance Instructions page 40

EXIT

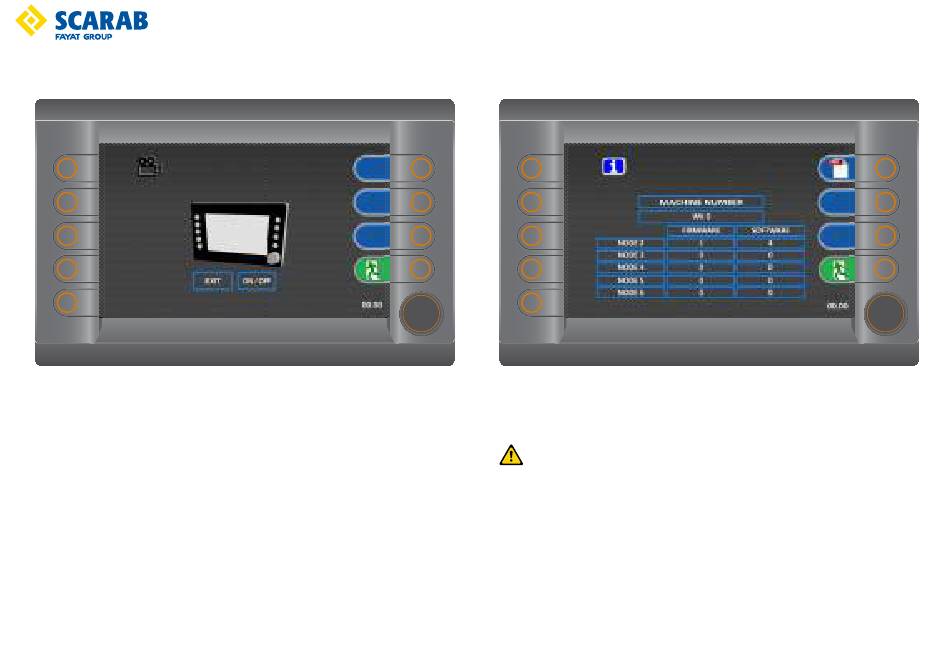

Rear camera
Enable/disable rear camera. When fitted.
A green tick displays in the centre of screen icon when camera is
activated.
NOTE:- This function allows rear viewing when the vehicle is in
forward drive. When reversing the screen activates automatically.
Part No. SCAZ038022 2.4.1
ON / OFF
00.00
Operating Instructions - Unidrive Truckmounted Road Sweeper
NODE 2
NODE 3
NODE 4
NODE 5
NODE 6
Information
Displays current Node program version.
Press button (1) to access the PDF viewing screen. Follow the on
screen directions.
Only to be used when vehicle is stationary.
NOTE:- On exiting PDF viewer ignition must be cycled.
35
MACHINE NUMBER
WK 0
FIRMWARE SOFTWARE
1 4
0 0
0 0
0 0
0 0
00.00
E&OE
